ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Height Linkage Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

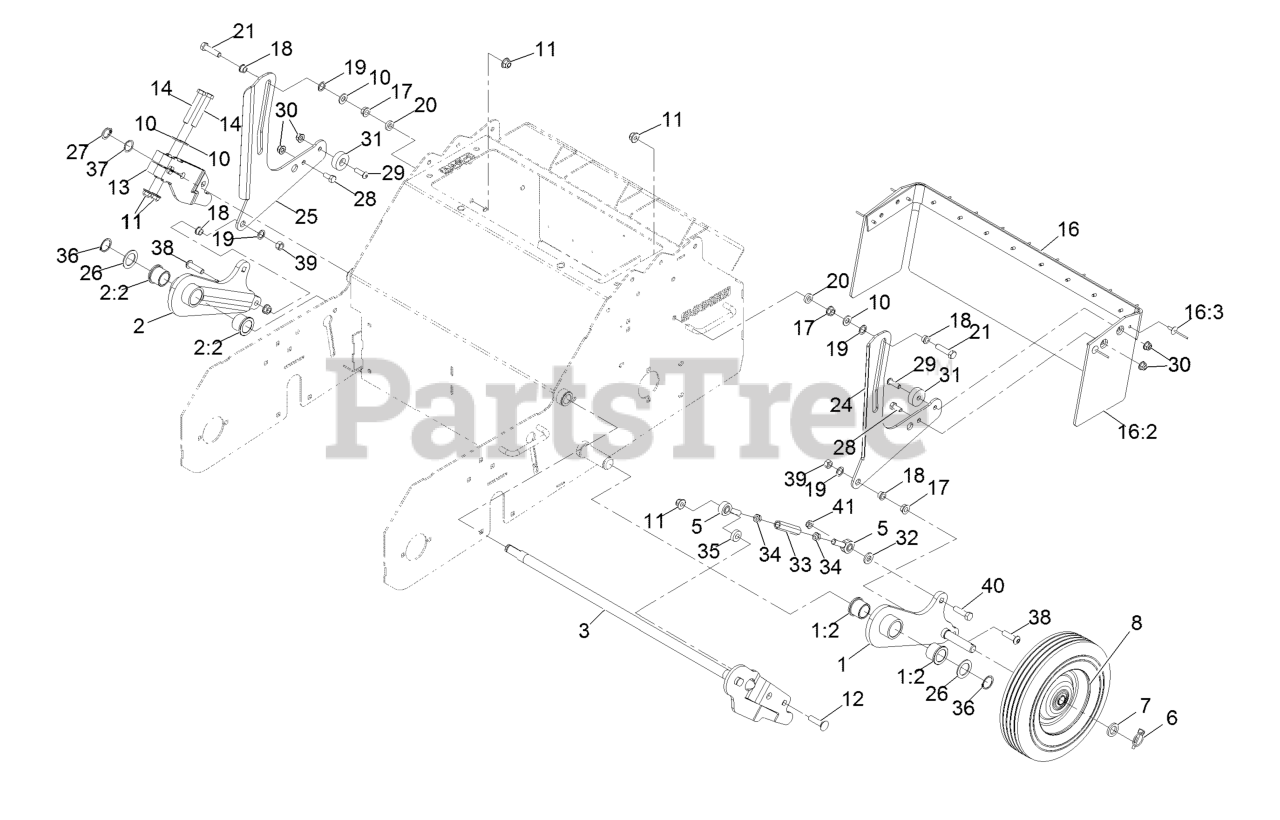

Height Linkage Assembly Parts Diagram

  • Title

1

Exmark 126-5098

LH Wheel Arm ASM

$151.99

$

Usually ships in 3-6 days

0

1:2

Exmark 94-8949

Bushing-Flange

$6.99

$

In Stock, only 3 left!

0

2

Exmark 126-5099

RH Wheel Arm ASM

$151.99

$

Usually ships in 3-6 days

0

2:2

Exmark 94-8949

Bushing-Flange

$6.99

$

In Stock, only 3 left!

0

3

Exmark 126-7273

Pivot Shaft ASM

$192.99

$

In Stock, Qty 15

0

5

Exmark 1-613204

Balljoint

$31.99

$

In Stock, only 2 left!

0

6

Exmark 3290-495

Pin-Klik

$6.99

$

In Stock, only 4 left!

0

7

Exmark 63-9710

Spacer-Bearing

$12.99

$

In Stock, only 1 left!

0

8

Exmark 126-9083

Wheel, Transport

$73.99

$

Usually ships in 3-6 days

0

10

Exmark 3256-24

Washer-3/8 SAE

$0.99

$

In Stock, Qty 18

0

11

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-4

Bolt-Carriage 3/8-16 X 1 1/2

$3.99

$

In Stock, Qty 20+

0

13

Exmark 126-1345-03

Arm-Lift RH

$62.99

$

Usually ships in 3-6 days

0

14

Exmark 323-12

Screw-HH 3/8-16 X 2 1/2

$2.49

$

In Stock, Qty 12

0

16

Exmark 126-0564

Guard-Foot

$142.99

$

Usually ships in 3-6 days

0

16:2

Exmark 116-9884

Foot-Shield

$85.99

$

Usually ships in 3-6 days

0

16:3

Exmark 3269-20

Rivet-Pop

$1.99

$

Usually ships in 3-6 days

0

17

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-603735

Bushing-Flanged

$6.49

$

In Stock, only 4 left!

0

19

Exmark 94-8196

Washer-Nylon

$6.99

$

In Stock, only 3 left!

0

20

Exmark 80-7730

Spacer

$14.99

$

Usually ships in 3-6 days

0

21

Exmark 323-8

Screw-HH 3/8-16 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

24

Exmark 126-0824-01

Guard-Arm, LH

$42.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0825-01

Guard-Arm, RH

$42.99

$

Usually ships in 3-6 days

0

26

Exmark 1-523157

Washer

$1.49

$

In Stock, Qty 20+

0

27

Exmark 32120-93

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

28

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 13

0

29

Exmark 109-4872

Screw-Hsph 5/16-18 X 1

$1.49

$

In Stock, only 1 left!

0

30

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

31

Exmark 116-8331

Guide-Arm, Trail

$20.99

$

Usually ships in 3-6 days

0

32

Exmark 87-7480

Washer

$1.49

$

Usually ships in 3-6 days

0

33

Exmark 116-9855

Rod-Lift Link

$18.99

$

Usually ships in 3-6 days

0

34

Exmark 3220-3

Nut-Jam 3/8-24

$0.99

$

In Stock, Qty 17

0

35

Exmark 5-0652

Spacer

$7.49

$

In Stock, Qty 5

0

36

Exmark 32151-29

Ring-Retaining

$5.49

$

In Stock, Qty 16

0

37

Exmark 119-4164

Washer-Wave

$3.49

$

In Stock, only 3 left!

0

38

Exmark 116-9927

Screw-HSBH

$2.99

$

Usually ships in 3-6 days

0

39

Exmark 125-5069

Nut-Hex
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

40

Exmark 323-29

Screw-HH 3/8-16 X 1 3/8

$0.99

$

In Stock, Qty 6

0

41

Exmark 3296-59

Nut-Nyloc 3/8-16 Thin
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0
