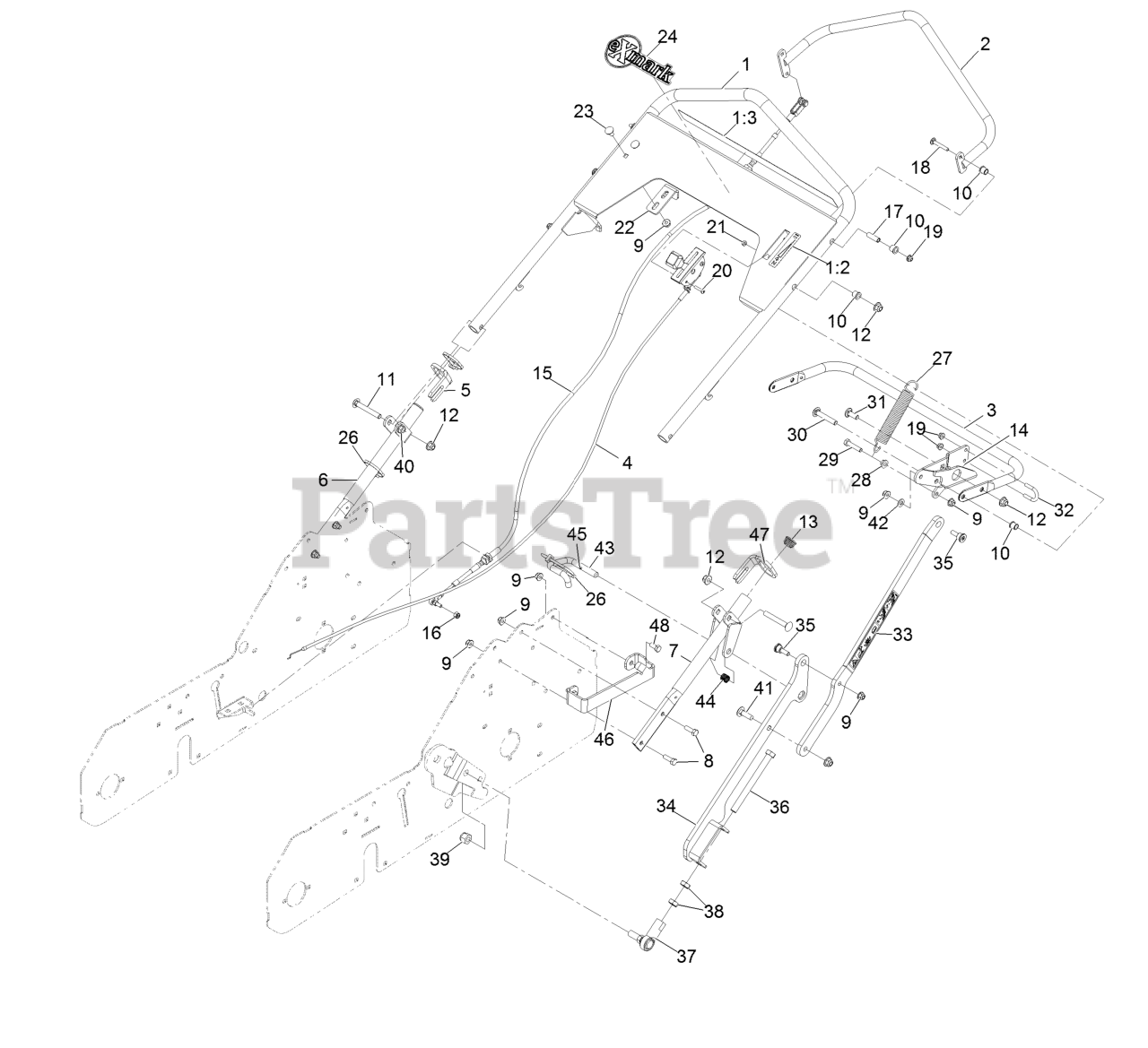

ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Handle Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

Handle Assembly Parts Diagram

  • Title

1

Exmark 126-0639

Handle ASM

$382.99

$

Usually ships in 3-6 days

0

1:2

Exmark 121-6151

Decal-Throttle, Choke

$4.99

$

Usually ships in 3-6 days

0

1:3

Exmark 116-8699

Decal-Aerator Control Panel

$21.99

$

Usually ships in 3-6 days

0

2

Exmark 121-6053-03

Tube-Control

$74.99

$

Usually ships in 3-6 days

0

3

Exmark 116-9873-03

Tube-Handle Lift

$105.99

$

Usually ships in 3-6 days

0

4

Exmark 116-9898

Control-Throttle

$49.99

$

In Stock, only 1 left!

0

5

Exmark 126-6287

Ring, Handle Lock

$18.99

$

Usually ships in 3-6 days

0

6

Exmark 121-1893-03

Handle-Lower

$67.99

$

Usually ships in 3-6 days

0

7

Exmark 116-9883-03

Asm-Lower Handle

$67.99

$

Usually ships in 3-6 days

0

8

Exmark 322-5

Screw-HH 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

9

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

10

Exmark 103-9928

Bearing

$7.99

$

In Stock, Qty 20+

0

11

Exmark 126-7090

Screw-CARR

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

13

Exmark 121-4870

Plug

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 126-5715-03

Arm-Upper

$184.99

$

Usually ships in 3-6 days

0

15

Exmark 121-6068

Cable

$146.99

$

In Stock, Qty 5

0

16

Exmark 3296-3

Nut-Nyloc 1/4-28

$4.99

$

Usually ships in 3-6 days

0

17

Exmark 121-6060

Bushing-Pivot

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 3229-5

Screw-CARR

$1.49

$

In Stock, only 3 left!

0

19

Exmark 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3250-27

Screw-PPH #10-24 X 7/8

$0.99

$

In Stock, Qty 9

0

21

Exmark 3296-2

Nut-Nyloc #10-24

$2.49

$

In Stock, Qty 20+

0

22

Exmark 121-6057

Angle-Stop

$19.99

$

Usually ships in 3-6 days

0

23

Exmark 3230-18

Bolt-Carriage 5/16-18 X 5/8

$5.49

$

In Stock, Qty 20+

0

24

Exmark 126-7196

Decal, Exmark Logo

$20.99

$

Usually ships in 3-6 days

0

26

Exmark 3290-378

Tie-Cable

$0.99

$

In Stock, Qty 8

0

27

Exmark 106-2177

Spring-Extension

$14.99

$

In Stock, only 4 left!

0

28

Exmark 32128-20

Nut-Whizlock 5/16-18

$1.49

$

In Stock, Qty 20+

0

29

Exmark 322-7

Screw-HH 5/16-18 X 1 1/2

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3231-40

Bolt-Carriage 3/8-16 X 2 1/4

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

32

Exmark 01-170-0040

U-Bolt

$4.99

$

Usually ships in 3-6 days

0

33

Exmark 126-6512

ASM, Upper Link W/ Decal

$98.99

$

Usually ships in 3-6 days

0

34

Exmark 126-5470-03

Arm-Lower

$118.99

$

Usually ships in 3-6 days

0

35

Exmark 119-4073

Bolt-Shoulder, Groomer

$17.99

$

Usually ships in 3-6 days

0

36

Exmark 126-5473

Screw-HH 1/2-20 X 5 1/2

$26.99

$

Usually ships in 3-6 days

0

37

Exmark 86-1550

End-Rod, RH Thread

$98.99

$

Usually ships in 3-6 days

0

38

Exmark 3220-5

Nut-Jam 1/2-20

$1.99

$

In Stock, Qty 19

0

39

Exmark 3296-19

Nut-Nyloc 1/2-20

$1.49

$

In Stock, Qty 20+

0

40

Exmark 3290-357

Nut-Whizlock 3/8-16

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

42

Exmark 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

43

Exmark 126-5150

Pin-Latch, Tranport

$25.99

$

Usually ships in 3-6 days

0

44

Exmark 126-5151

Spring-Compression

$13.99

$

Usually ships in 3-6 days

0

45

Exmark 32121-50

Pin-Spring

$3.49

$

In Stock, only 3 left!

0

46

Exmark 126-6291-03

Strap, Stop

$28.99

$

Usually ships in 3-6 days

0

47

Exmark 126-6500

Ring, Handle Lock

$25.99

$

Usually ships in 3-6 days

0

48

Exmark 322-3

Screw-HH 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0
