ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 402082300 - 404314158) (2018) Frame Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

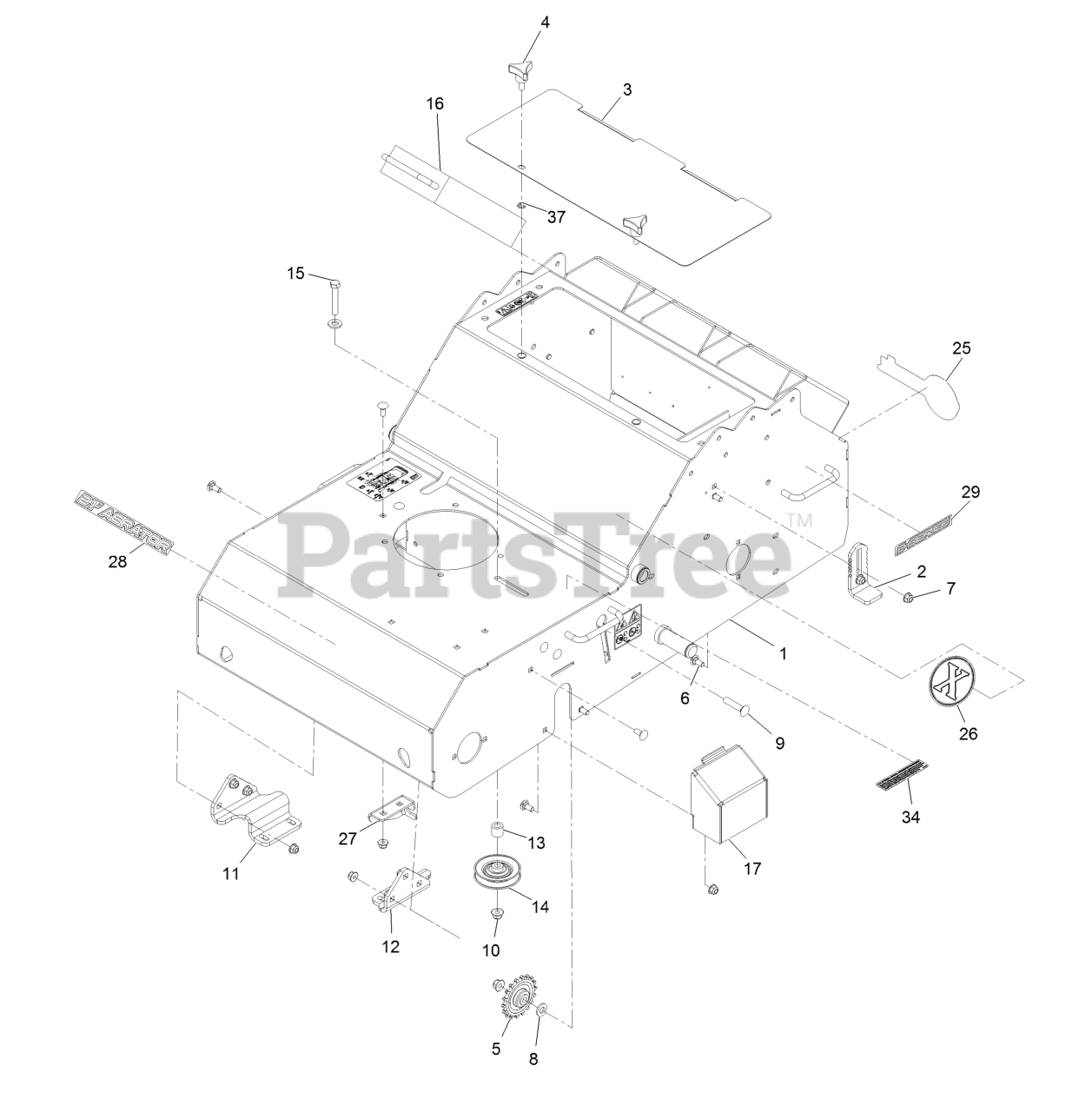

Frame Assembly Parts Diagram

  • Title

1

Exmark 126-5102

Frame ASM

$996.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9886

Stop-Depth

$14.99

$

Usually ships in 3-6 days

0

3

Exmark 126-0974-01

Cover-Access

$39.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3351

Knob-5/16X3/4 3-Prong

$6.99

$

Usually ships in 3-6 days

0

5

Exmark 121-4915

Sprocket-Idler

$54.99

$

In Stock, Qty 20+

0

6

Exmark 3230-1

Bolt-Carriage 5/16-18 X 3/4

$1.99

$

In Stock, Qty 20+

0

7

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 17

0

8

Exmark 87-7480

Washer

$1.49

$

Usually ships in 3-6 days

0

9

Exmark 3231-29

Bolt-Carriage 3/8-16 X 1 3/4

$7.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 121-4948-03

Bracket-Mount Axle, RH

$29.99

$

Usually ships in 3-6 days

0

12

Exmark 121-4949-03

Bracket-Mount Axle, LH

$29.99

$

Usually ships in 3-6 days

0

13

Exmark 121-6087

Bushing-Idler

$11.99

$

Usually ships in 3-6 days

0

14

Exmark 62-4530

Pulley

$39.99

$

In Stock, only 2 left!

0

15

Exmark 323-11

Screw-HH 3/8-16 X 2 1/4

$2.49

$

In Stock, Qty 20+

0

16

Exmark 121-6080

Weight-Aerator

$272.99

$

Usually ships in 3-6 days

0

17

Exmark 121-1981-01

Cover-Transaxle

$54.99

$

Usually ships in 3-6 days

0

25

Exmark 126-7196

Decal, Exmark Logo

$18.99

$

Usually ships in 3-6 days

0

26

Exmark 126-7194

Decal-X-Logo

$

$

Currently unavailable

27

Exmark 121-6056

Bracket-Mounting, Cable

$21.99

$

Usually ships in 3-6 days

0

28

Exmark 126-7032

Decal-Aerator 21 Logo

$31.99

$

Usually ships in 3-6 days

0

29

Exmark 126-6998

Decal-S-Series

$5.99

$

Usually ships in 3-6 days

0

34

Exmark 117-2718

Decal-Arrester, Spark

$7.99

$

In Stock, only 1 left!

0

37

Exmark 117-2749

Nut-Push

$1.49

$

Usually ships in 3-6 days

0
