ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 400000000 - 402082299) (2017) Engine Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

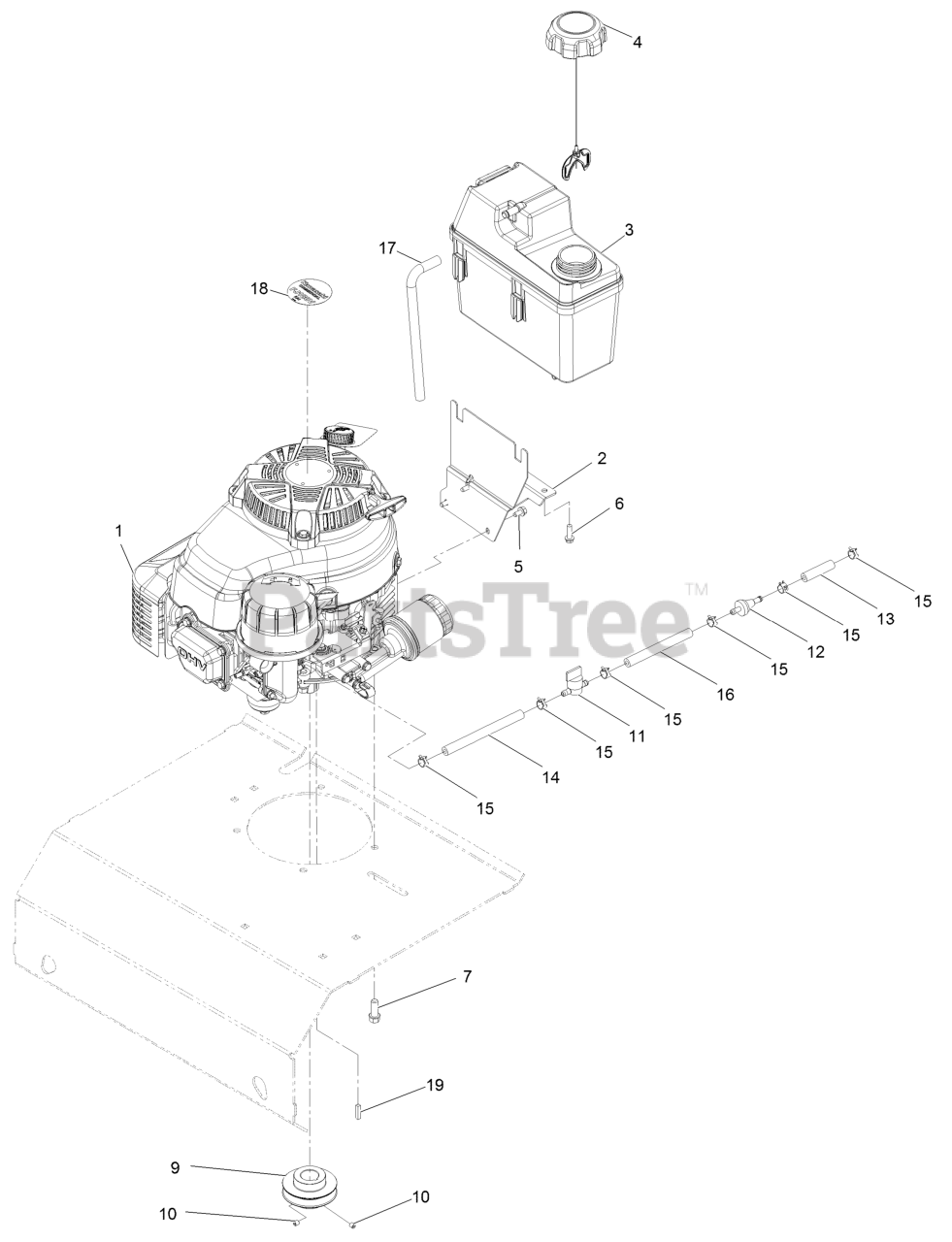

Engine Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fj180V-Bm02-M

Note: Not serviced separately, Obtain parts from www.kawpowerepc.com

$

$

Not available

2

Exmark 115-0954-03

MOUNT-TANK

$43.99

$

In Stock, only 3 left!

0

3

Exmark 114-0280

TANK-FUEL

$144.99

$

In Stock, only 4 left!

0

4

Exmark 115-7788

137-4127
(Superseded to 137-4127)

$23.99

$

In Stock, only 2 left!

0

5

Exmark 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

6

Exmark 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

7

Exmark 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

9

Exmark 126-0839

PULLEY-DRIVER

$124.99

$

Usually ships in 3-6 days

0

10

Exmark 3245-35

SCREW-SET, HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 10

0

11

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

12

Exmark 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 13

0

13

Exmark 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

14

Exmark 109-0300

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

15

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

17

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

18

Exmark 109-6528

DECAL

$6.49

$

In Stock, only 2 left!

0

19

Exmark 6366

KEY

$5.49

$

Usually ships in 3-6 days

0
