ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 400000000 - 402082299) (2017) Drive Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

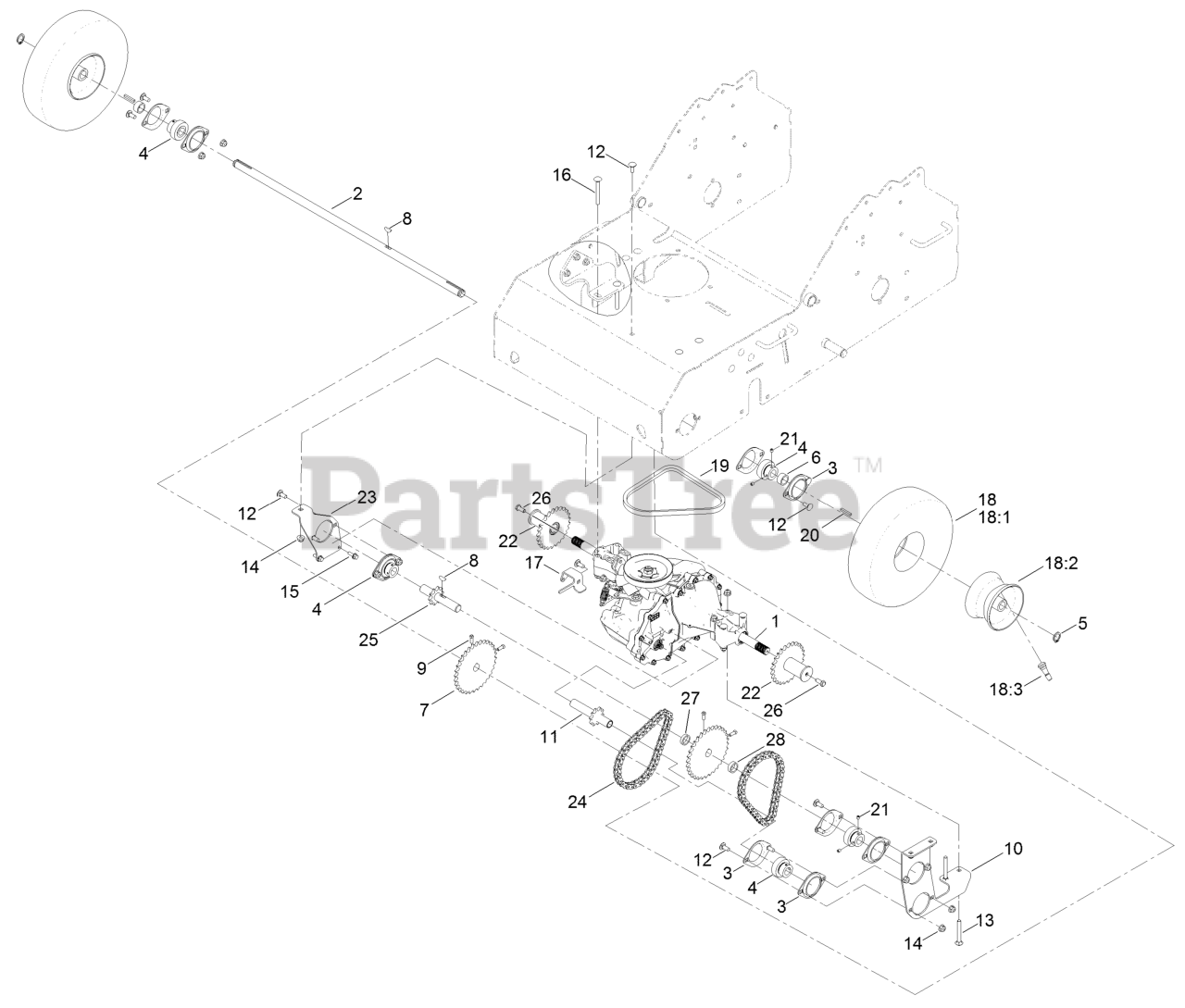

Drive Assembly Parts Diagram

  • Title
1

Exmark 121-4899

TRANSAXLE ASM

$1360.99

$

Usually ships in 3-6 days

0

2

Exmark 121-4927

SHAFT-WHEEL

$101.99

$

Usually ships in 3-6 days

0

3

Exmark 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

4

Exmark 120-9350

BEARING-LOCK, COLLAR

$48.99

$

In Stock, only 4 left!

0

5

Exmark 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

6

Exmark 121-4931

SPACER-WHEEL

$6.99

$

In Stock, only 2 left!

0

7

Exmark 121-4934

SPROCKET

$130.99

$

Usually ships in 3-6 days

0

8

Exmark 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

9

Exmark 3241-5

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, only 2 left!

0

10

Exmark 121-4936-03

PLATE-BEARING

$43.99

$

Usually ships in 3-6 days

0

11

Exmark 121-4937

SHAFT-OUTPUT

$180.99

$

Usually ships in 3-6 days

0

12

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 13

0

14

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Exmark 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

16

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

17

Exmark 121-6067

ANGLE-CONTROL

$19.99

$

Usually ships in 3-6 days

0

18

Exmark 120-3550

WHEEL ASM

$118.99

$

In Stock, only 1 left!

0

18:1

$79.99

$

Usually ships in 3-6 days

0

18:2

Exmark 121-6082

WHEEL-RIM

$54.99

$

Usually ships in 3-6 days

0

18:3

Exmark 5108

VALVE

$6.99

$

In Stock, Qty 16

0

19

Exmark 121-1999

BELT-DRIVE

$14.99

$

In Stock, only 4 left!

0

20

Exmark 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 17

0

21

Exmark 3245-35

SCREW-SET, HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 10

0

22

Exmark 116-9860

SPROCKET

$212.99

$

Usually ships in 3-6 days

0

23

Exmark 121-4932-03

BRACKET-SUPPORT, SHAFT

$22.99

$

Usually ships in 3-6 days

0

24

Exmark 121-6105

CHAIN-DRIVE WHEEL

$20.99

$

In Stock, only 1 left!

0

25

Exmark 121-6108

SHAFT-JACK

$135.99

$

Usually ships in 3-6 days

0

26

Exmark 3235-6

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$4.49

$

Usually ships in 3-6 days

0

27

$8.49

$

Usually ships in 3-6 days

0

28

Exmark 94-9524

SPACER-CONTROL

$113.99

$

Usually ships in 3-6 days

0
