ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 315000000 - 315999999) (2015) Tine Wheel Drive Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

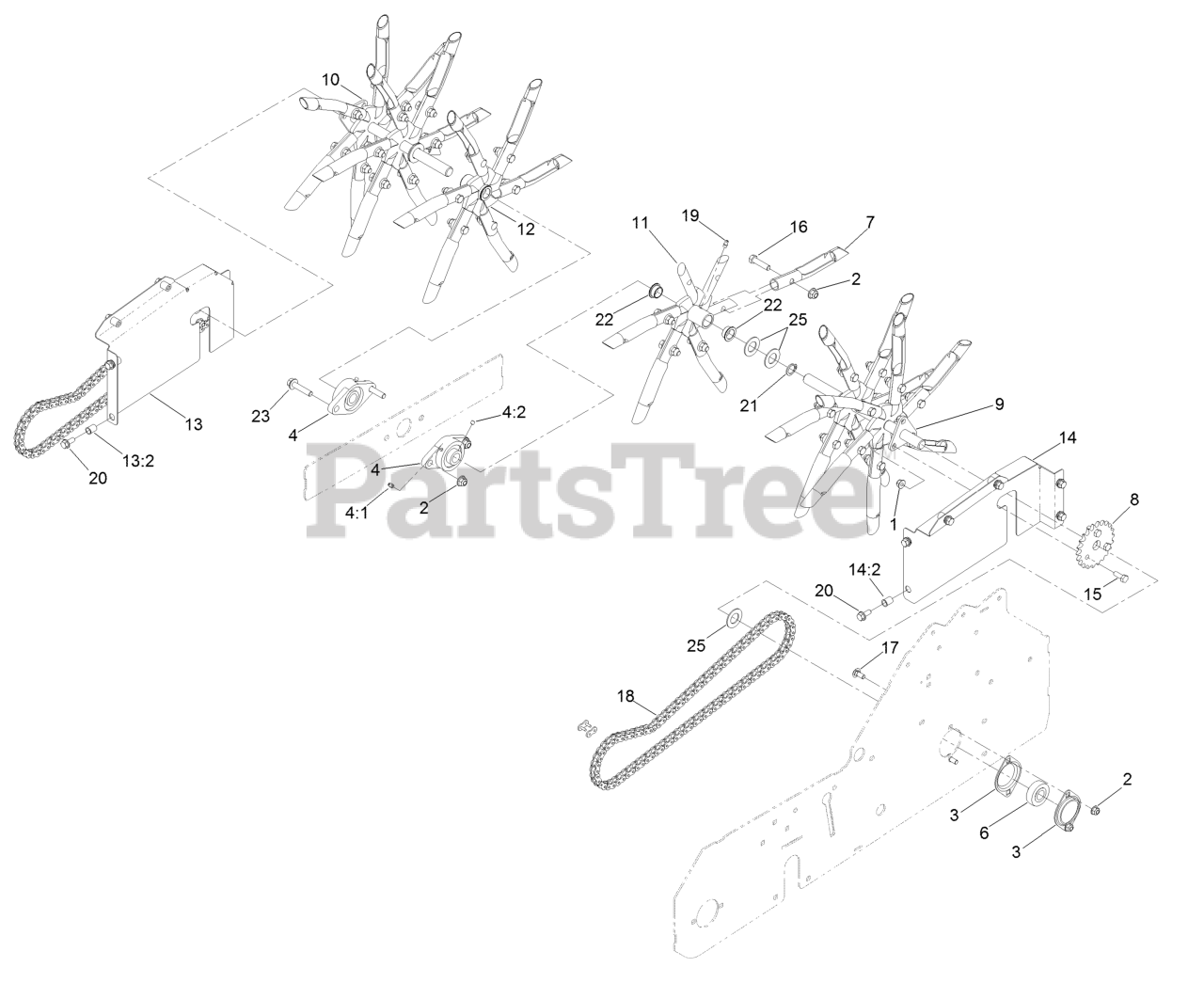

Tine Wheel Drive Assembly Parts Diagram

  • Title
1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

2

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

4

Exmark 106-7126

BEARING-FLANGE

$85.99

$

Usually ships in 3-6 days

0

4:1

Exmark 302-58

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

4:2

Exmark 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

6

Exmark 120-9350

BEARING-LOCK, COLLAR

$48.99

$

In Stock, only 4 left!

0

7

Exmark 126-2143

TINE-CORING (3/4 INCH)

$11.99

$

In Stock, Qty 20+

0

8

Exmark 116-9896

SPROCKET-#40 22T

$63.99

$

Usually ships in 3-6 days

0

9

Exmark 121-4930

WHEEL-TINE, LH

$365.99

$

Usually ships in 3-6 days

0

10

Exmark 121-6072

WHEEL-TINE, RH

$365.99

$

Usually ships in 3-6 days

0

11

Exmark 121-6099

Tine-Spyder

$

$

Not available

12

Exmark 121-6096

TINE-SPYDER

$196.99

$

Usually ships in 3-6 days

0

13

Exmark 126-1204

RH CHAIN GUARD ASM

$63.99

$

Usually ships in 3-6 days

0

13:2

Exmark 32148-7

NUT-CLINCH

$3.99

$

Usually ships in 3-6 days

0

14

Exmark 126-1206

LH CHAIN GUARD ASM

$63.99

$

Usually ships in 3-6 days

0

14:2

Exmark 32148-7

NUT-CLINCH

$3.99

$

Usually ships in 3-6 days

0

15

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Exmark 121-6107

CHAIN-DRIVE

$47.99

$

Usually ships in 3-6 days

0

19

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

20

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

21

Exmark 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 108519

BUSHING-BRONZE

$15.99

$

In Stock, only 4 left!

0

23

Exmark 3234-19

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

25

$2.99

$

In Stock, only 4 left!

0
