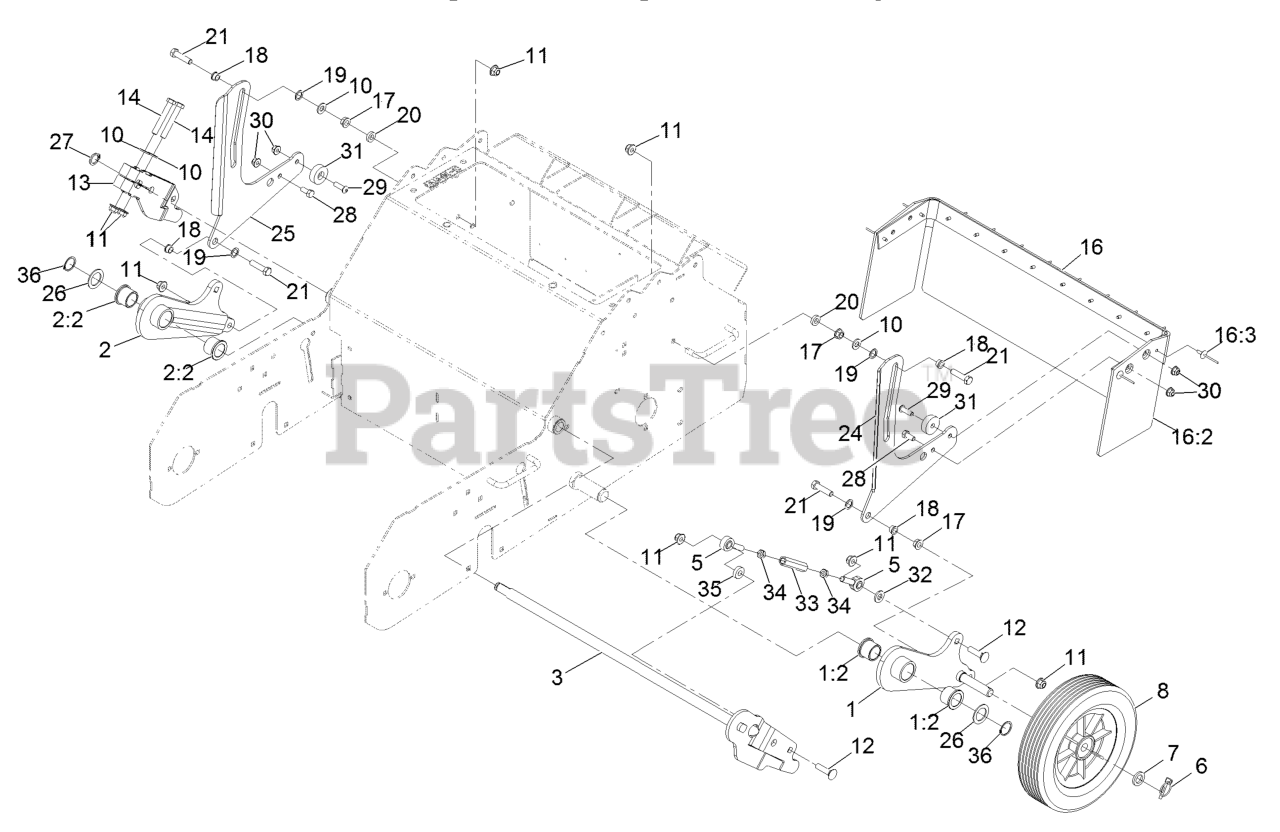

ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 315000000 - 315999999) (2015) Height Linkage Assembly Parts Diagram

21" Aerator, Kawasaki FJ180V

Height Linkage Assembly Parts Diagram

  • Title

1

Exmark 126-5098

LH WHEEL ARM ASM

$151.99

$

Usually ships in 3-6 days

0

1:2

Exmark 94-8949

BUSHING-FLANGE

$7.49

$

In Stock, only 3 left!

0

2

Exmark 126-5099

RH WHEEL ARM ASM

$164.99

$

Usually ships in 3-6 days

0

2:2

Exmark 94-8949

BUSHING-FLANGE

$7.49

$

In Stock, only 3 left!

0

3

Exmark 126-5160

126-7273
(Superseded to 126-7273)

$201.99

$

In Stock, Qty 15

0

5

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 8

0

6

Exmark 3290-495

PIN-KLIK

$6.99

$

In Stock, only 4 left!

0

7

Exmark 63-9710

SPACER-BEARING

$13.99

$

In Stock, only 1 left!

0

8

Exmark 121-4897

WHEEL-TRANSPORT 10"

$75.99

$

Usually ships in 3-6 days

0

10

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

13

Exmark 126-1345-03

ARM-LIFT, RH

$62.99

$

Usually ships in 3-6 days

0

14

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Exmark 126-0564

GUARD-FOOT

$157.99

$

Usually ships in 3-6 days

0

16:2

Exmark 116-9884

FOOT-SHIELD

$93.99

$

Usually ships in 3-6 days

0

16:3

Exmark 3269-20

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

17

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

19

Exmark 94-8196

WASHER-NYLON

$6.99

$

In Stock, only 3 left!

0

20

Exmark 80-7730

SPACER

$14.99

$

Usually ships in 3-6 days

0

21

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 126-0824-01

GUARD-ARM, LH

$42.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0825-01

GUARD-ARM, RH

$42.99

$

Usually ships in 3-6 days

0

26

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

27

Exmark 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

28

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 109-4872

SCREW-HSBH

$1.49

$

In Stock, only 1 left!

0

30

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 116-8331

GUIDE-ARM, TRAIL

$21.99

$

Usually ships in 3-6 days

0

32

Exmark 87-7480

WASHER

$1.49

$

In Stock, only 1 left!

0

33

Exmark 116-9855

ROD-LIFT LINK

$18.99

$

Usually ships in 3-6 days

0

34

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

35

Exmark 5-0652

SPACER

$7.99

$

In Stock, Qty 5

0

36

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0
