Exmark ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 315000000 - 315999999) (2015) Handle Assembly Parts Lookup with Diagrams

1

Exmark 126-0639

HANDLE ASM

$383.99

$

Usually ships in 3-6 days

1:2

Exmark 121-6151

DECAL-THROTTLE, CHOKE

$4.99

$

Usually ships in 3-6 days

1:3

Exmark 116-8699

DECAL-AERATOR CONTROL PAN

$21.99

$

Usually ships in 3-6 days

2

Exmark 121-6053-03

TUBE-CONTROL

$78.99

$

Usually ships in 3-6 days

3

Exmark 116-9873-03

TUBE-HANDLE LIFT

$105.99

$

Usually ships in 3-6 days

4

Exmark 116-9898

CONTROL-THROTTLE

$51.99

$

Usually ships in 3-6 days

5

Exmark 126-6287

RING, HANDLE LOCK

$18.99

$

Usually ships in 3-6 days

6

Exmark 121-1893-03

HANDLE-LOWER

$69.99

$

Usually ships in 3-6 days

7

Exmark 116-9883-03

HANDLE-LOWER, LH

$67.99

$

Usually ships in 3-6 days

8

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

10

Exmark 103-9928

BEARING

$8.49

$

In Stock, Qty 10

11

Exmark 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

12

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

13

Exmark 121-4870

PLUG

$3.49

$

Usually ships in 3-6 days

14

Exmark 126-5715-03

ARM-UPPER

$196.99

$

Usually ships in 3-6 days

15

Exmark 121-6068

CABLE

$155.99

$

In Stock, Qty 5

16

Exmark 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

17

Exmark 121-6060

BUSHING-PIVOT

$6.99

$

Usually ships in 3-6 days

18

Exmark 3229-5

SCREW-CARR

$1.49

$

In Stock, only 3 left!

19

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

20

Exmark 3250-27

SCREW-PPH

$0.99

$

In Stock, only 1 left!

21

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

22

Exmark 121-6057

ANGLE-STOP

$20.99

$

Usually ships in 3-6 days

23

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

24

Exmark 103-3999

DECAL,EXMARK LOGO

$9.49

$

In Stock, Qty 7

26

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

27

Exmark 106-2177

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

28

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

29

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

30

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

31

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

32

Exmark 01-170-0040

U-BOLT

$5.49

$

Usually ships in 3-6 days

33

Exmark 126-6512

ASM, UPPER LINK W/ DECAL

$98.99

$

Usually ships in 3-6 days

34

Exmark 126-5470-03

ARM-LOWER

$125.99

$

Usually ships in 3-6 days

35

Exmark 119-4073

BOLT-SHOULDER, GROOMER

$18.99

$

Usually ships in 3-6 days

36

Exmark 126-5473

SCREW, HH

$26.99

$

Usually ships in 3-6 days

37

Exmark 86-1550

END-ROD, RH THREAD

$100.99

$

Usually ships in 3-6 days

38

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 18

39

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

40

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

41

Exmark 3231-25

BOLT-CARR

(Superseded to 119-4162) 

$1.99

$

In Stock, Qty 20+

42

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

43

Exmark 126-5150

PIN-LATCH, TRANPORT

$26.99

$

Usually ships in 3-6 days

44

Exmark 126-5151

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

45

Exmark 32121-50

PIN-SPRING

$3.49

$

In Stock, only 1 left!

46

Exmark 126-6291-03

STRAP, STOP

$29.99

$

Usually ships in 3-6 days

47

Exmark 126-6500

RING, HANDLE LOCK

$25.99

$

Usually ships in 3-6 days

48

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

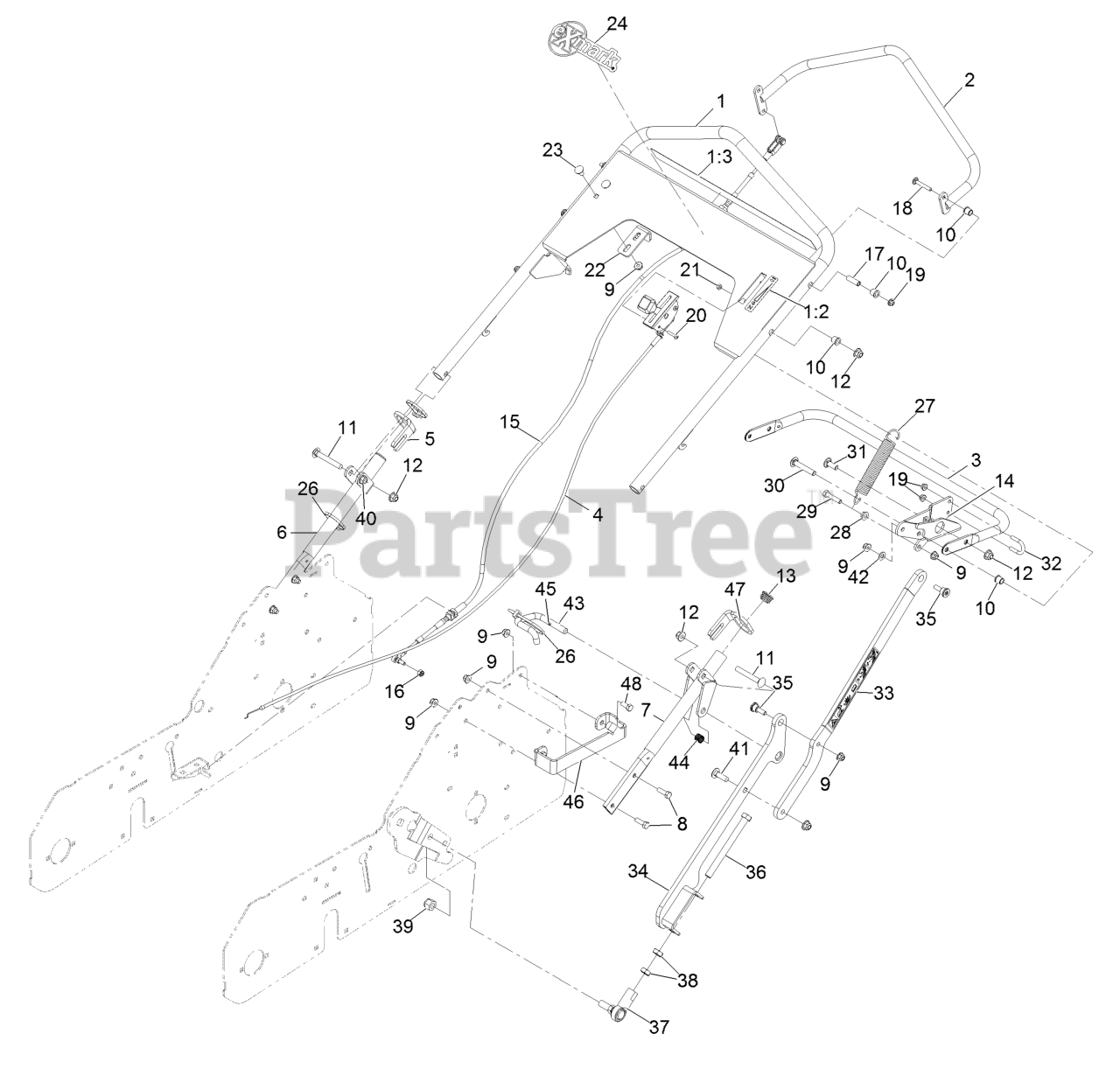

ARS180CKA21000 - Exmark 21" Aerator, Kawasaki FJ180V (SN: 315000000 - 315999999) (2015) Handle Assembly Parts Diagram

Handle Assembly Parts Diagram
