Arctic Storm 34 (31AH8ER6766) - Troy-Bilt Arctic Storm 34" Snow Thrower (2018) Chute Parts Diagram

Arctic Storm 34" Snow Thrower

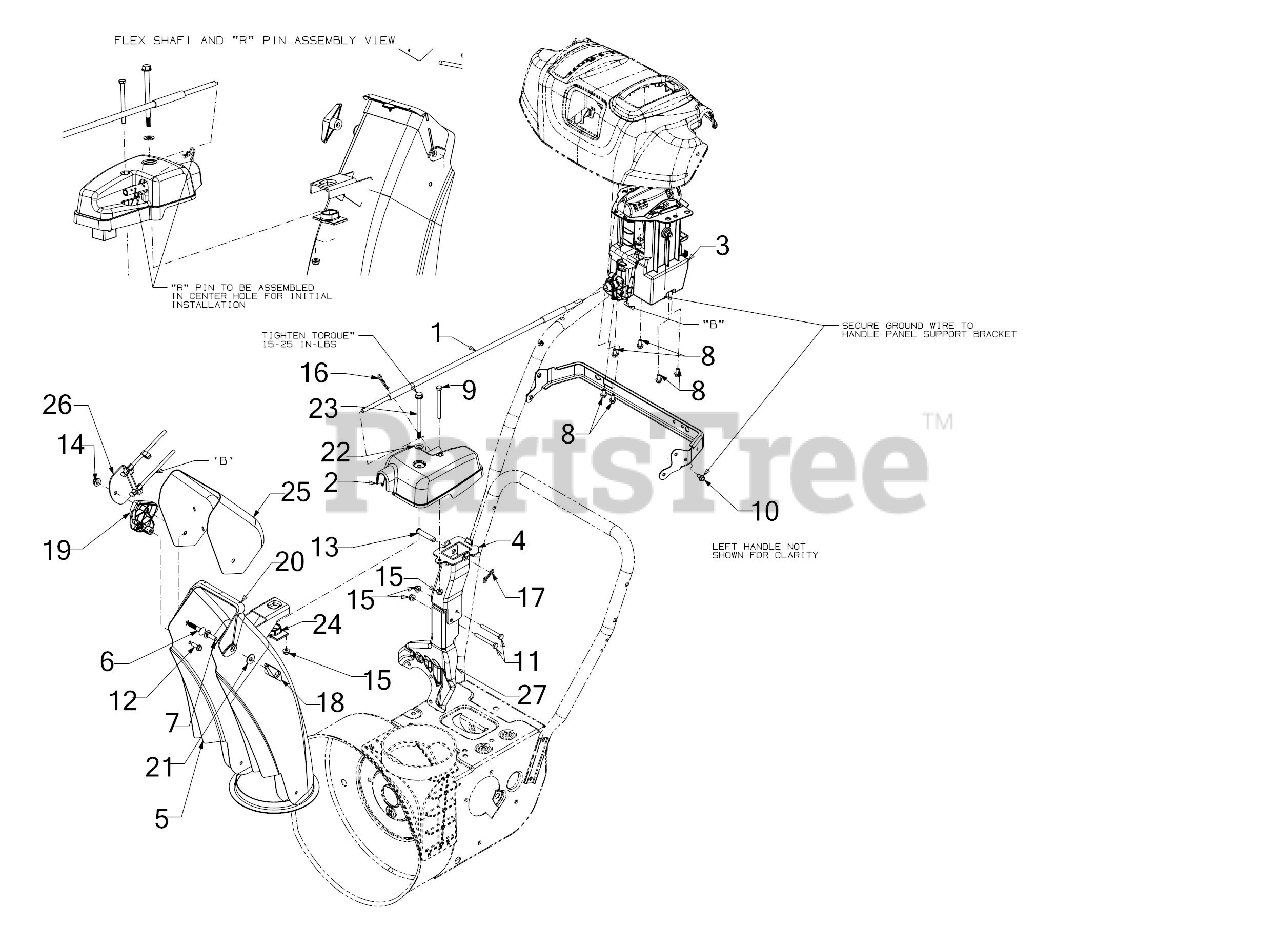

Chute Parts Diagram

  • Title
1

Troy-Bilt 911-05146

ELECTRIC 4-WAY CHUTE CONTROL SHAFT

$178.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-04932B

WORM GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$77.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 984-05119

4-WAY CHUTE CONTROL ASSEMBLY

Note: (See Separate Breakdown)

$403.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-05176-4033

CHUTE MAST BRACKET

$45.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 684-05182-4033

LOWER STEEL CHUTE 6" DIA

$120.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

7

Troy-Bilt 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, Qty 11

0

10

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0641

SCREW 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

12

Troy-Bilt 710-0895

SCREW 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 3 left!

0

14

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

17

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 920-0284

WING NUT KNOB
(Superseded to 720-0284)

$

$

Not available

19

Troy-Bilt 731-09535

CHUTE TILT GUIDE

$8.49

$

In Stock, Qty 16

0

20

Troy-Bilt 731-09539A

UPPER CHUTE ADAPTER

$25.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

22

Troy-Bilt 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 738-04367

SHOULDER SCREW

$4.99

$

In Stock, Qty 11

0

24

Troy-Bilt 748-05057

HELICAL GEAR CHUTE ADAPTER

$11.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 790-00529-4033

UPPER CHUTE STEEL

$34.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 790-00565-0637

CABLE BRACKET GUIDE
(Superseded to 790-00565A-0637)

$14.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 790-00780-4033

CHUTE SUPPORT BRACKET
(Superseded to 790-00780A-0637)

$45.99

$

Usually ships in 3-6 days

0
