Arctic Storm 30 (31AH8DR5766) - Troy-Bilt Arctic Storm 30" Snow Thrower (2019) Planetary Shaft Assembly Parts Diagram

Arctic Storm 30" Snow Thrower

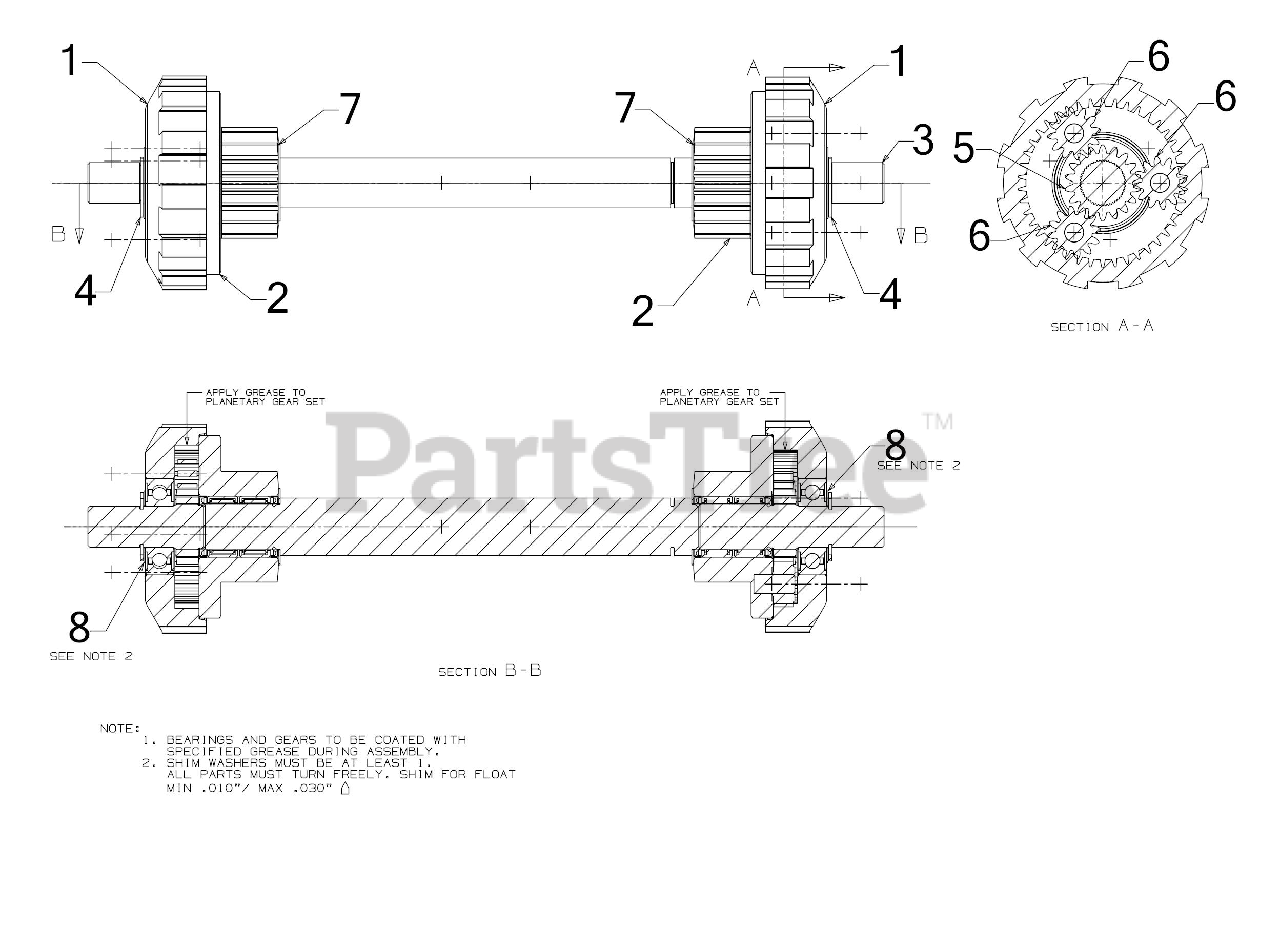

Planetary Shaft Assembly Parts Diagram

  • Title

1

Troy-Bilt 918-06054

PLANETARY RING GEAR ASSEMBLY

$57.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 941-0600

BALL BEARING

Note: (Not Shown)

$25.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 918-06056

PLANETARY CARRIER ASSEMBLY

$71.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 741-0542

DOWEL PIN-5/16

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 921-0179

OIL SEAL .750 x 1.00 x .125
(Superseded to 721-0179)

Note: (Not Shown)

$

$

Not available

3

Troy-Bilt 711-06117

HEX SHAFT
(Superseded to 711-06117B)

$102.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

5

Troy-Bilt 717-05146

SUN GEAR 18T

$8.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 717-1209A

GEAR-12T

$4.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 736-04581

THRUST WASHER .75X 1.25X .031

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 736-05031

FLAT WASHER .67X 1.174X .02

$3.49

$

Usually ships in 3-6 days

0
