Arctic Storm 30 (31AH8DR5766) - Troy-Bilt Arctic Storm 30" Snow Thrower (2019) Impeller Parts Diagram

Arctic Storm 30" Snow Thrower

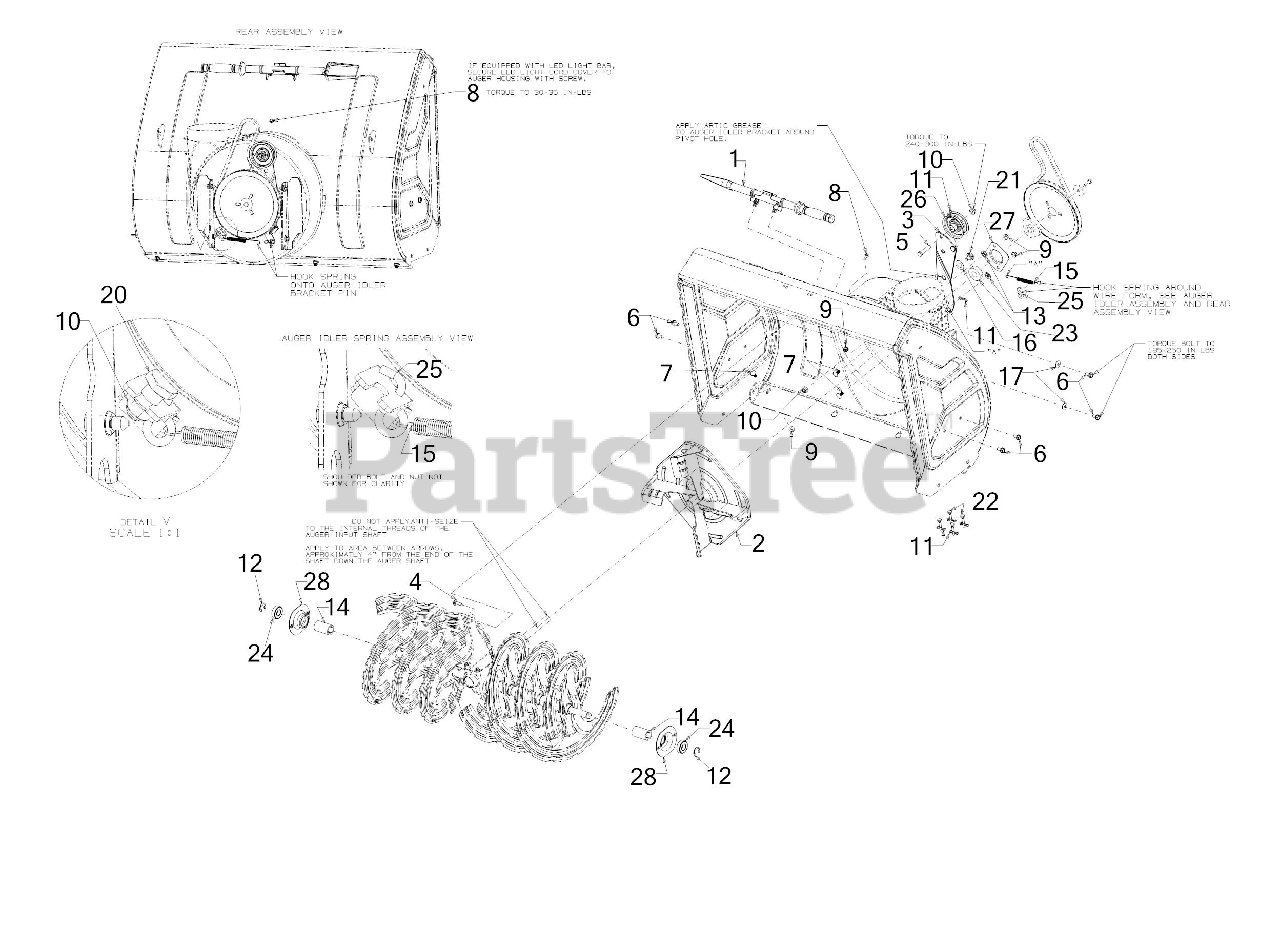

Impeller Parts Diagram

  • Title

1

Troy-Bilt 931-2643

CLEANOUT TOOL

$19.99

$

In Stock, Qty 11

0

1

Troy-Bilt 731-11421

CLEANOUT TOOL MOUNTING CLIP

$11.99

$

In Stock, Qty 18

0

2

Troy-Bilt 684-05130

4 BLADE IMPELLER 14.5 DIA

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 684-05130-0637

IMPLR-4 BLADE 14.5 - POWDER BLACK (0637)

$93.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-05130-0638

IMPLR-4 BLADE 14.5 - MTD/TROY-BILT RED (0638)

$93.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-05130-4028

IMPLR-4 BLADE 14.5 - SEARS YELLOW (4028)

$93.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 684-05186

AUGER IDLER BRACKET

$36.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 7

0

9

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 916-0231

E-RING
(Superseded to 716-0231)

$

$

Not available

13

Troy-Bilt 926-04012

PUSH ON NUT
(Superseded to 726-04012)

$

$

Not available

14

Troy-Bilt 731-11747

SPACER 1.25 x .75 x 2.085

$4.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 732-04460

EXTENSION SPRING .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 936-0167

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

17

Troy-Bilt 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 738-0143

SHOULDER SCREW .498 DIA x .340

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 938-0281

SHOULDER SCREW .625
(Superseded to 738-0281)

$

$

Not available

22

Troy-Bilt 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 941-0309

FLANGE BEARING

$74.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 741-05194

BALL BEARING

$8.49

$

Usually ships in 3-6 days

0

25

Troy-Bilt 747-06779

ROD SPRING HOOK

$4.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 756-04224

FLAT IDLER PULLEY 2.75 OD

$26.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 790-00075A

BEARING HOUSIN 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 10

0

28

Troy-Bilt 790-00734

BEARING HOUSING 1.59 ID

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00734-0606

HSG-BRG 1.59 ID - MAJESTIC ORANGE (0606)

$7.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00734-0691

HSG-BRG 1.59 ID - BLACK JACK (0691)

$8.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00734-4021

HSG-BRG 1.59 ID - CUB YELLOW 2 (4021)

$8.49

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00734-4033

HSG-BRG 1.59 ID - FLINT MICA (4033)

$9.49

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0
