AR 907511 P (090930316) - Ariens 7,500 Watt Generator Figure A Parts Diagram

7,500 Watt Generator

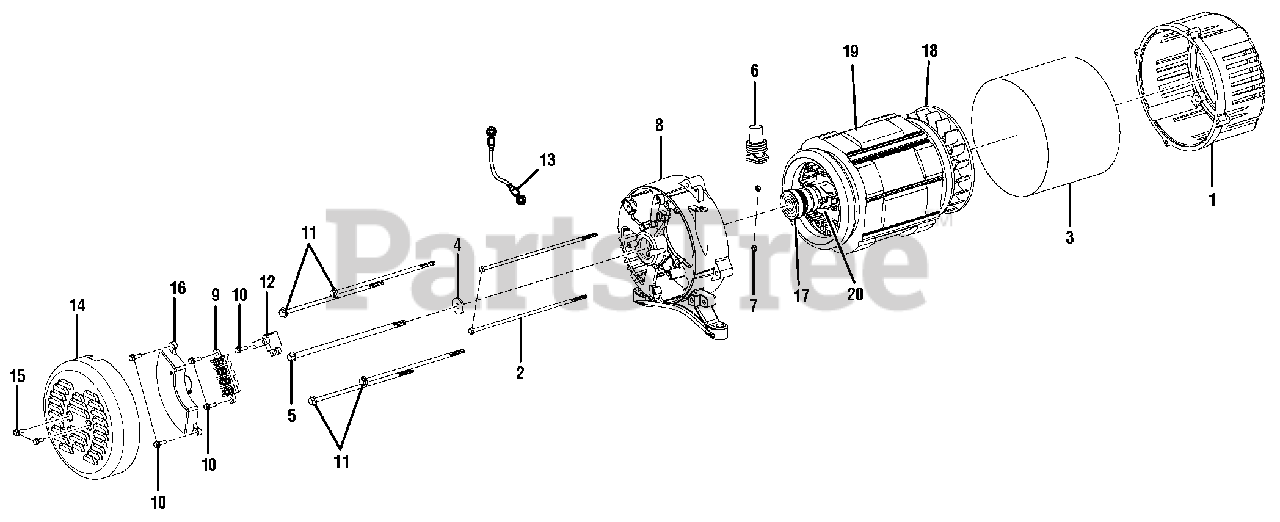

Figure A Parts Diagram

  • Title

1

Homelite 640331005

Adaptor Housing

$

$

Not available

2

Homelite 660938021

Bolt (M5, Hex Hd.)

$

$

Not available

3

Homelite 638624020

Generator Head Cover

$11.99

$

Usually ships in 3-7 days

0

4

Homelite 638623002

Lock Washer (5/16 in.)

$

$

Not available

5

Homelite 661603034

Rotor Bolt (170 mm)

$

$

Not available

6

Homelite 570766002

Rubber Boot

$

$

Not available

7

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

8

Homelite 678865003

Bearing Housing

$

$

Not available

9

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

10

Homelite 660938012

Bolt (M5 x 16 mm)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 661603031

Stator Bolt (170 mm)

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 290441005

Brush Assembly

$

$

Not available

13

Homelite 290455001

Bonding Wire

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

15

Homelite 660938011

Bolt (M5 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 290440008

Automatic Voltage Regulator
(Superseded to 290440012)

$

$

Not available

17

Homelite 681963001

Bearing

$17.99

$

Usually ships in 3-7 days

0

18

Homelite 307471001

Fan

$

$

Not available

19

Homelite 310772044

Stator

$356.99

$

Usually ships in 3-7 days

0

20

Homelite 310771043

Rotor

$

$

Not available
