AR 36 - Husqvarna 36" Aerator (2000-12) Towable Lawn Aerator Parts Diagram

36" Aerator

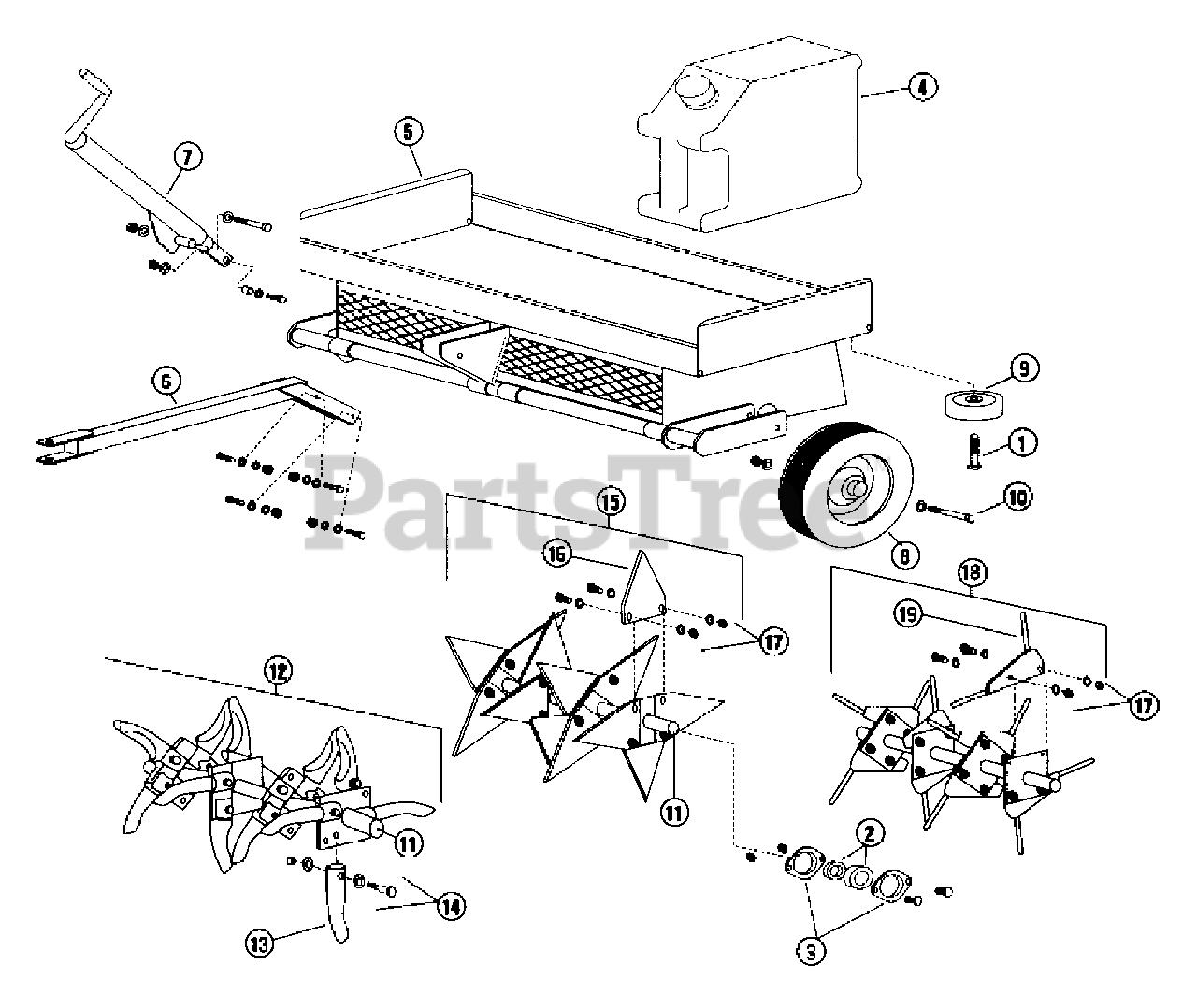

Towable Lawn Aerator Parts Diagram

  • Title

1

Husqvarna 540000185

Bolt
(Superseded to 539101572)

$5.99

$

In Stock, Qty 10

0

2

Husqvarna 540000317

Bearing, 1" with lock collar
(Superseded to 539000317)

$53.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540005786

Stamping kit w/fasteners
(Superseded to 539005786)

Note: (For 1" bearing)

$

$

Not available

4

Husqvarna 540000074

Weight container, set of six
(Superseded to 539007510)

$

$

Not available

5

Husqvarna 540007550

Chassis weldment
(Superseded to 540200232)

$

$

Not available

6

Husqvarna 540007552

Tow bar with bolt kit

$121.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540007553

Jack towable aerator with bolt kit
(Superseded to 539007553)

$399.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540007555

Decal kit

$

$

Not available

8

Husqvarna 540007562

Wheel, 12" X 3" semi pneumatic
(Superseded to 539007562)

$133.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540007565

Bearing, roller 3/4"

Note: For 12" X 3" wheel

$

$

Not available

9

Husqvarna 540007563

Wheel, 1 1/4" X 5"
(Superseded to 539007563)

$36.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540007566

Bolt kit

Note: For 540007562 wheel

$

$

Not available

11

Husqvarna 540007500

Rotor, TripleAire
(Superseded to 539007500)

Note: Used on 540007570,7580,7590

$157.99

$

Usually ships in 3-10 days

0

12

Husqvarna 540007570

Rotor assembly, coring tine complete with bearings
(Superseded to 539007570)

$

$

Not available

12

Husqvarna 540007575

Rotor assembly, coring tine complete without bearings
(Superseded to 539007575)

$968.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540007571

Tine set, towable aerator 16 each, per rotor
(Superseded to 539007571)

$267.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540007572

Tine, 1/2" closed spoon, each
(Superseded to 539007572)

$24.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540007574

Fastener kit, coring tine set, per rotor
(Superseded to 539007574)

$62.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540007580

Rotor assembly, slice blade complete with bearings

$

$

Not available

15

Husqvarna 540007585

Rotor assembly, slice blade complete without bearings

$

$

Not available

16

Husqvarna 540007581

Slice blade set, 16 each, per rotor

$

$

Not available

16

Husqvarna 540007583

Slice blade, each

$

$

Not available

17

Husqvarna 540007584

Fastener kit, spike or slice blade, per rotor
(Superseded to 539007584)

$

$

Not available

18

Husqvarna 540007590

Rotor assembly, spike complete with bearings

$

$

Not available

18

Husqvarna 540007595

Rotor assembly, spike complete without bearings

$

$

Not available

19

Husqvarna 540007591

Spike plate set, 8 each, per rotor

$

$

Not available

19

Husqvarna 540007598

Spike plate, each

$

$

Not available

Husqvarna 540000732

Paint, orange 12.5 oz. spray can

$46.99

$

Usually ships in 3-10 days

0

Husqvarna 540000729

Paint, orange 1qt. can

$

$

Not available
