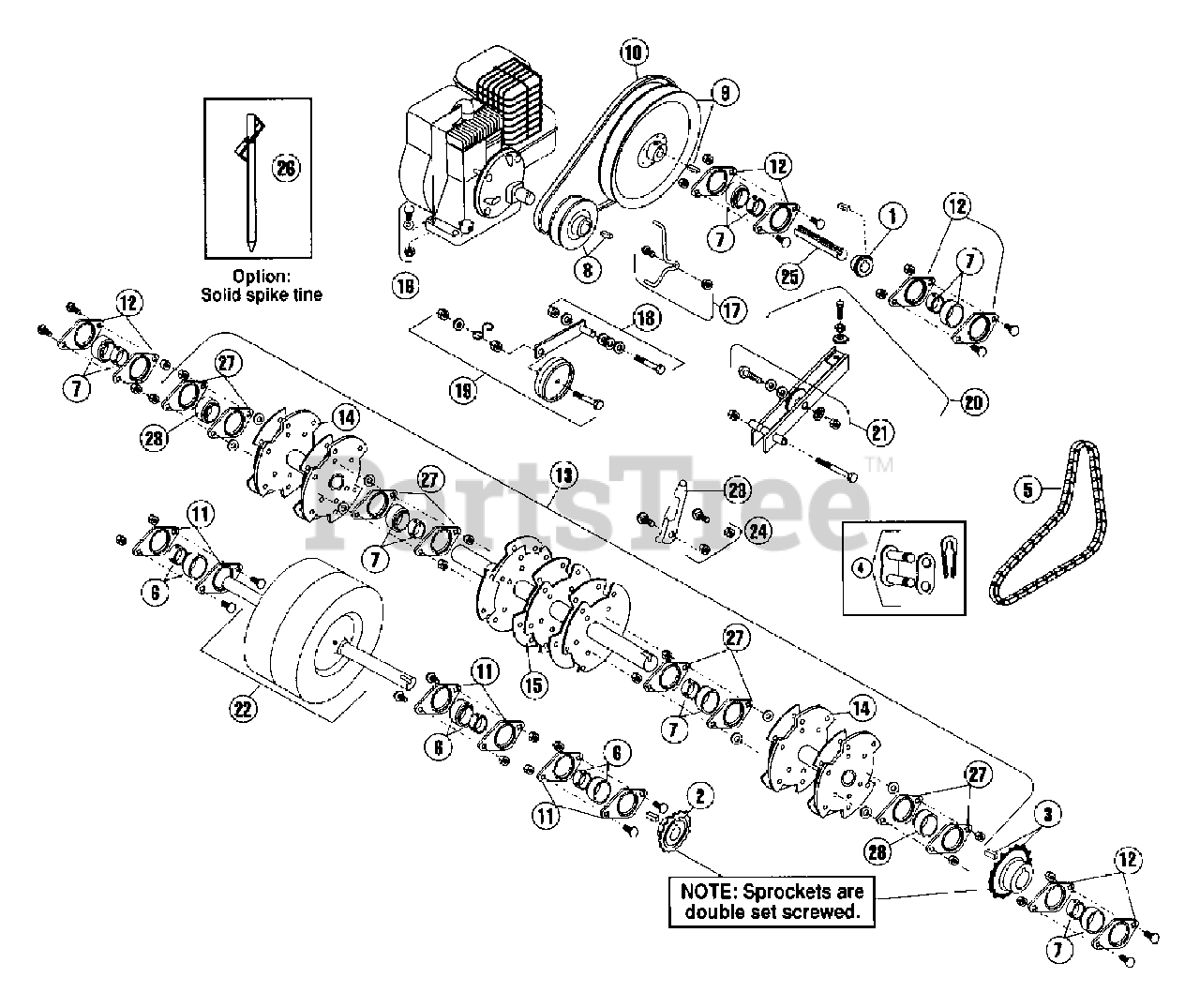

AR 25 - Husqvarna 25" Aerator (2000-12) Power Train / Tine Rotor Parts Diagram

25" Aerator

Power Train / Tine Rotor Parts Diagram

  • Title

1

Husqvarna 540007416

Sprocket, jackshaft, with key
(Superseded to 539007416)

$96.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540007417

Sprocket, wheel, with set screws and key
(Superseded to 539007417)

$125.99

$

Usually ships in 3-10 days

0

3

Husqvarna 540007418

Sprocket, rotor, with set screws and key
(Superseded to 539007418)

$136.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540007419

Master link
(Superseded to 539007419)

Note: For 540007420

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 540007420

Chain, #50 perma lube roller
(Superseded to 539130886)

$48.99

$

In Stock, only 1 left!

0

6

Husqvarna 540000315

Bearing, 3/4" with lock collar
(Superseded to 539000315)

$37.99

$

In Stock, Qty 7

0

7

Husqvarna 540000317

Bearing, 1" with lock collar
(Superseded to 539000317)

$53.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540000328

V-pulley, A-4" with set screws and key
(Superseded to 539000328)

$109.99

$

Usually ships in 3-10 days

0

9

Husqvarna 540007421

V-pulley, A-10" with set screws and key
(Superseded to 539007421)

$136.99

$

Usually ships in 3-10 days

0

10

Husqvarna 540000336

V-belt, A-44" special
(Superseded to 539200679)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 540005185

Stamping kit w/fasteners
(Superseded to 539005185)

Note: (For 3/4" bearing)

$17.99

$

In Stock, only 3 left!

0

12

Husqvarna 540005786

Stamping kit w/fasteners
(Superseded to 539005786)

Note: (For 1" bearing)

$

$

Not available

13

Husqvarna 540007422

Tine rotor shaft assembly, complete
(Superseded to 539007422)

$519.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540007423

Outer rotor plate kit
(Superseded to 539007423)

$193.99

$

Usually ships in 3-10 days

0

15

Husqvarna 540007424

Center tine rotor shaft
(Superseded to 539007424)

$267.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540007204

Fastener kit, engine

$

$

Not available

17

Husqvarna 540007205

Belt keeper kit
(Superseded to 539007205)

$43.99

$

Usually ships in 3-10 days

0

18

Husqvarna 540007206

Idler arm kit, pulley
(Superseded to 539007206)

$133.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540007207

Idler pulley kit
(Superseded to 539007207)

$84.99

$

Usually ships in 3-10 days

0

20

Husqvarna 540007425

Idler arm kit, chain
(Superseded to 539007425)

$170.99

$

Usually ships in 3-10 days

0

21

Husqvarna 540007426

Idler sprocket kit, chain
(Superseded to 539007426)

$

$

Not available

22

Husqvarna 540007120

Front wheel and shaft kit
(Superseded to 539007120)

$

$

Not available

23

Husqvarna 540007111

Tine set, closed spoon, 42 each
(Superseded to 539007111)

$433.99

$

Usually ships in 3-10 days

0

23

Husqvarna 540007112

Tine set, closed spoon, 6 each
(Superseded to 539007112)

$145.99

$

Usually ships in 3-10 days

0

24

Husqvarna 540007102

Tine/spike fastener kit, 96 ea. bolts and nuts
(Superseded to 539007102)

$78.99

$

Usually ships in 3-10 days

0

24

Husqvarna 540007103

Tine/spike fastener kit, 12 ea. bolts and nuts
(Superseded to 539007103)

$27.99

$

Usually ships in 3-10 days

0

25

Husqvarna 540007427

Jackshaft, with key

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 540007104

Spike set, 42 each

$

$

Not available

27

Husqvarna 540007105

Stamping kit
(Superseded to 539007105)

Note: (For 1" bearing) with nuts and washers

$

$

Not available

28

Husqvarna 540007108

Bearing 1"
(Superseded to 539000317)

Note: (Does not include lock collar)

$53.99

$

Usually ships in 3-10 days

0
