AP 2203 (UT-01569) - Homelite 1.5" Pump Pump Parts Diagram

1.5" Pump

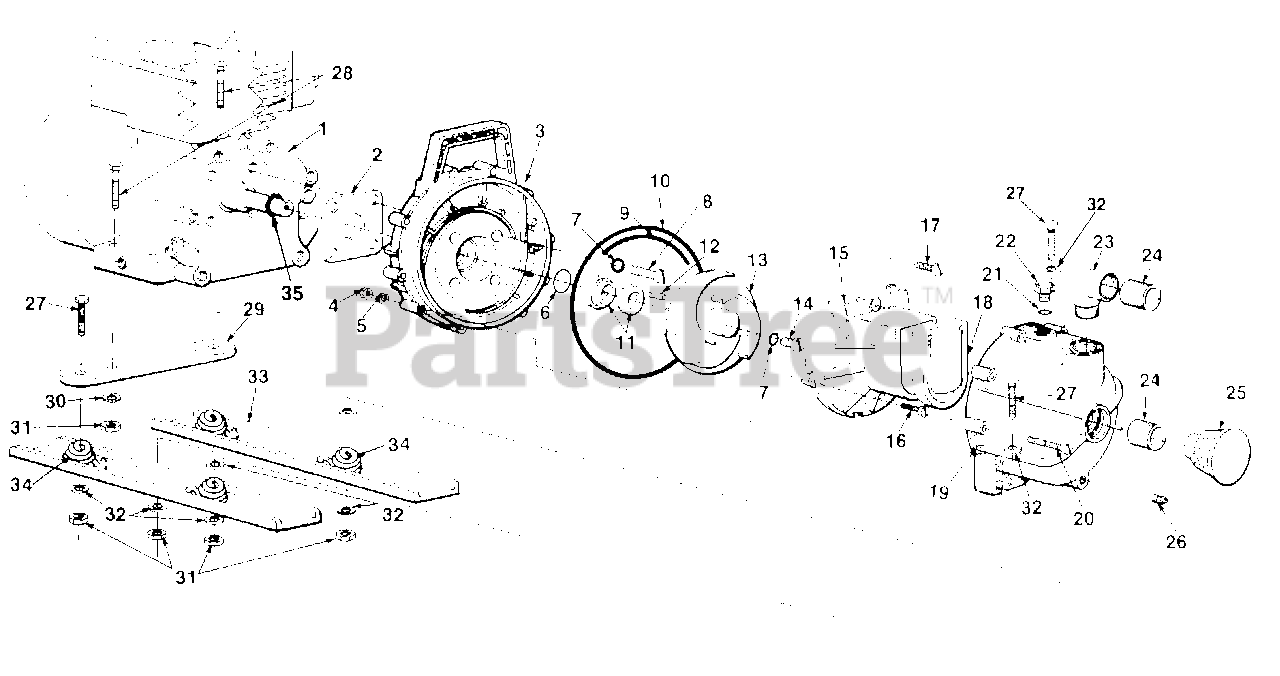

Pump Parts Diagram

  • Title

1

ENGINE

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

2

Homelite 43269

SHIM

$

$

Not available

Homelite 42382

SHIM (.010) (Not Shown)

$

$

Not available

Homelite 42383

SHIM (.015) (Not Shown)

$9.49

$

In Stock, only 1 left!

0

3

Homelite 43270B

HOUSING- Impeller
(Superseded to UP03753)

$

$

Not available

4

Homelite 81172

NUT- Hex 1/4-20
(Superseded to UP03754)

$

$

Not available

5

Homelite 83051

WASHER- Lock 1/4
(Superseded to UP03755)

$

$

Not available

6

Homelite 43751

"O" RING (Buna N)

$2.49

$

In Stock, only 4 left!

0

7

Homelite 67900

"O" RING, Screw (Buna N)

$

$

Not available

Homelite 43313

"O" RING, Screw (EPDM)

$2.49

$

In Stock, Qty 5

0

8

Homelite 43302B

SCREW, Bracket, impeller hsg.
(Superseded to UP03760)

$

$

Not available

9

Homelite 43272

"O" RING, Segment (Buna N)

$

$

Not available

Homelite 43314

"O" RING, Segment (EDPM)

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 43273

"O" RING, Body (Buna N)

$

$

Not available

Homelite 43312

"O" RING, Body (EPDM)

$25.99

$

Usually ships in 3-7 days

0

11

Homelite 43271

SHAFT SEAL (Buna N)

$

$

Not available

Homelite 43303A

SHAFT SEAL (EPDM)

$

$

Not available

12

Homelite 43301A

KEY, 3/16 x 3/16 x 1
(Superseded to UP03767)

$

$

Not available

13

Homelite 43274B

IMPELLER

$

$

Not available

14

Homelite 43284

SCREW, Impeller, rd. hd. 5/16-24 x 3/4
(Superseded to UP03769)

$

$

Not available

15

Homelite 43324A

VOLUTE
(Superseded to UP03770)

$

$

Not available

16

Homelite 43285B

SCREW- Volute (stainless) 6-32 x 1/2 rd. hd.

$

$

Currently unavailable

17

Homelite 46044

SCREW- Volute top (10-24 x 1 1/2) rd. hd.
(Superseded to UP03773)

$

$

Not available

18

Homelite 43276B

CHECK VALVE (Buna N)

$

$

Not available

Homelite 43300B

CHECK VALVE (EPDM)

$

$

Not available

19

Homelite 43277A

BODY 1 1/2"

$

$

Currently unavailable

20

Homelite 46045A

SCREWS- Body fil. (1/4-20 x 2 1/2)
(Superseded to UP03779)

$

$

Not available

21

Homelite 43316

"O" RING- Fil. plug (Buna N)

$

$

Not available

Homelite 43315

"O" RING- Fil. plug (EPDM)

$

$

Not available

22

Homelite 43311A

PLUG- Filler
(Superseded to UP03782)

$

$

Not available

23

Homelite 43304

ELBOW- Street, 1 1/2"

$

$

Not available

24

Homelite 03041

PIPE, Fitting, 1 1/2

$

$

Not available

25

Homelite 43306

STRAINER, 1 1/2"

$

$

Not available

26

Homelite 46317A

PLUG- Drain
(Superseded to UP03786)

$

$

Not available

27

Homelite 46053A

SCREW- Hex 5/16-18 x 1
(Superseded to UP03787)

$

$

Not available

28

Homelite 46060

SCREW- Engine mtg. 5/16-18 x 1 1/2
(Superseded to UP03788)

$18.99

$

Usually ships in 3-7 days

0

29

Homelite 432621

BAR- Mounting

$

$

Not available

30

Homelite 83003

WASHER- Lock 5/16 heavy
(Superseded to UP03791)

$

$

Not available

31

Homelite 81132

NUT- Hex hd, 5/16-18
(Superseded to UP03792)

$

$

Not available

32

Homelite 84046

WASHER- Flat, 5/16

$

$

Not available

33

Homelite A43263

SKID

$

$

Currently unavailable

34

Homelite 50389

SPRING- Foot
(Superseded to UP03795)

$

$

Not available

Homelite 85025

RIVET (not shown)

$

$

Not available

35

Homelite 02964

SLINGER
(Superseded to UP03801)

$19.99

$

Usually ships in 3-7 days

0

Homelite A43297B

EPDM Repair Kit

$

$

Currently unavailable

Homelite A43318

Skid Kit

$

$

Not available

Homelite A43299

Rubber Feet Kit

$

$

Currently unavailable

Homelite A48298

Viton Repair Kit (opt.)

$

$

Currently unavailable

Homelite A47832

Buna-N Repair Kit

$

$

Currently unavailable
