AP 2201 B (UT-01549-A) - Homelite 2" Pump Portable Pumps AP220-1A, -1B Parts Diagram

2" Pump

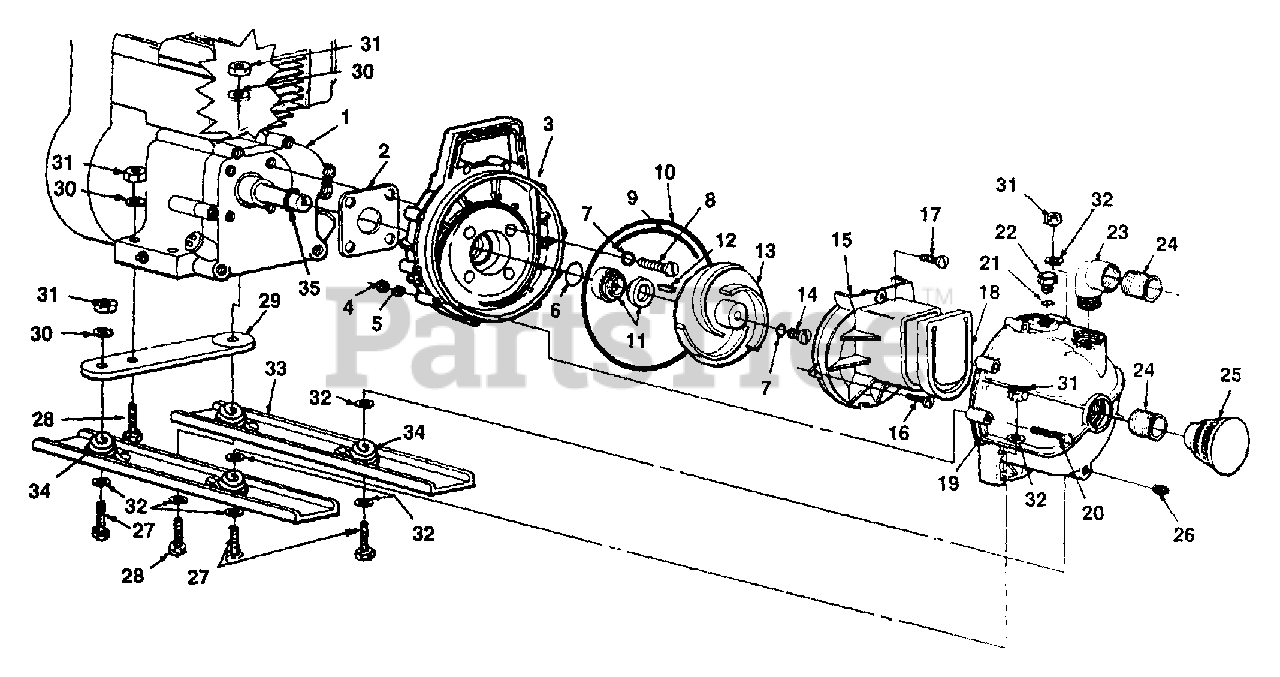

Portable Pumps AP220-1A, -1B Parts Diagram

  • Title

1

ENGINE

$

$

Not available

2

Homelite 43269

SHIM

Note: As Required

$

$

Not available

Homelite 42382

SHIM (.010)

Note: As Required, Not Shown

$

$

Not available

Homelite 42383

SHIM (.015)

Note: As Required, Not Shown

$9.49

$

In Stock, only 1 left!

0

3

Homelite 43270B

HOUSING - Impeller
(Superseded to UP03753)

$

$

Not available

4

Homelite 81172B

NUT - Hex 1/4 - 20
(Superseded to UP03754)

$

$

Not available

5

Homelite 83051B

WASHER - Lock 1/4
(Superseded to UP03755)

$

$

Not available

6

Homelite 43751

"O" RING

Note: Buna N

$2.49

$

In Stock, only 4 left!

0

Homelite 43752

"O" RING

Note: EPDM

$

$

Not available

7

Homelite 67900

"O" RING, Screw

Note: Buna N

$

$

Not available

Homelite 43313

"O" RING, Screw

Note: EPDM

$2.49

$

In Stock, Qty 5

0

8

Homelite 43302B

SCREW, Bracket, Impeller Hsg.
(Superseded to UP03760)

Note: Torque Specs. 70-90 In/Lbs, 7.9-10.2 Nm, 262 Red Required Locktite

$

$

Not available

9

Homelite 43272

"O" RING, Segment

Note: Buna N

$

$

Not available

Homelite 43314

"O" RING, Segment

Note: EDPM

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 43273

"O" RING, Body

Note: Buna N

$

$

Not available

Homelite 43312

"O" RING, Body

Note: EPDM

$25.99

$

Usually ships in 3-7 days

0

11

Homelite 43271

SHAFT SEAL

Note: Buna N

$

$

Not available

Homelite 43303A

SHAFT SEAL

Note: EPDM

$

$

Not available

12

Homelite 43301A

KEY, 3/16 x 3/16 x 1
(Superseded to UP03767)

$

$

Not available

13

Homelite 43274B

IMPELLER

$

$

Not available

14

Homelite 43284B

SCREW, Impeller, rd. hd. 5/16-24 x 3/4
(Superseded to UP03769)

Note: Torque Specs. 20-25 In/Lbs, 2.3-2.8; 262 Red Required Locktite

$

$

Not available

15

Homelite 43324A

VOLUTE
(Superseded to UP03770)

$

$

Not available

16

Homelite 43285C

SCREW - Volute 6-32 x 1/2 rd. hd.
(Superseded to UP03772)

Note: Stainless, Torque Specs. 15-20 In/Lbs, 1.7-2.3

$

$

Not available

17

Homelite 46044A

SCREW - Volute top (10-24 x 1 1/2) rd. hd.
(Superseded to UP03773)

Note: Torque Specs. 15-20 In/Lbs, 1.7-2.3 Nm

$

$

Not available

18

Homelite 43276B

CHECK VALVE

Note: Buna N

$

$

Not available

Homelite 43300B

CHECK VALVE

Note: EPDM

$

$

Not available

19

Homelite 43278A

BODY 2"
(Superseded to UP03778)

$823.99

$

Usually ships in 3-7 days

0

20

Homelite 46045A

SCREWS - Body fil. (1/4-20 x 2 1/2)
(Superseded to UP03779)

Note: Torque Specs. 20-25 In/Lbs, 2.3-2.8 Nm

$

$

Not available

21

Homelite 43316

"O" RING - Fil. plug

Note: Buna N

$

$

Not available

Homelite 43315

"O" RING - Fil. plug

Note: EPDM

$

$

Not available

22

Homelite 43311A

PLUG - Filler
(Superseded to UP03782)

$

$

Not available

23

Homelite 43305

ELBOW - Street, 2"

$

$

Not available

24

Homelite 03040

NIPPLE - 2"
(Superseded to UP03784)

$

$

Not available

25

Homelite 43307

STRAINER, 2"
(Superseded to UP03785)

$

$

Not available

26

Homelite 46317A

PLUG - Drain
(Superseded to UP03786)

$

$

Not available

27

Homelite 82598

SCREW - Hex 5/16-18 x 7/8"

Note: Torque Specs. 140-160 In/Lbs, 15.8-18.1 Nm

$

$

Not available

28

Homelite 80087

SCREW - 5/16-18 x 1 1/2"

Note: Torque Specs. 140-160 In/Lbs, 15.8-18.1 Nm

$

$

Not available

29

Homelite 432621

BAR - Mounting

$

$

Not available

30

Homelite 83003

WASHER - Lock 5/16 heavy
(Superseded to UP03791)

$

$

Not available

31

Homelite 81132

NUT - Hex hd., 5/16-18
(Superseded to UP03792)

$

$

Not available

32

Homelite 84046

WASHER - Flat, 5/16

$

$

Not available

33

Homelite A43263

SKID

Note: Includes items 34 & 35

$

$

Currently unavailable

34

Homelite 50389

SPRING - Foot
(Superseded to UP03795)

$

$

Not available

Homelite 85025

RIVET

Note: Not shown

$

$

Not available

Homelite 43265

LABEL - Warning

Note: Not shown

$6.49

$

Usually ships in 3-7 days

0

Homelite 43880A

DECAL - EPDM

Note: Not shown

$

$

Not available

35

Homelite 02964

SLINGER
(Superseded to UP03801)

$19.99

$

Usually ships in 3-7 days

0

Homelite A43297C

EPDM Repair Kit
(Superseded to UP03802)

Note: Accessory

$

$

Not available

Homelite A43318

Skid Kit

Note: Accessory

$

$

Not available

Homelite A48298A

Viton Repair Kit

Note: Opt., Accessory

$

$

Currently unavailable

Homelite A47832A

Buna-N Repair a Kit
(Superseded to UP03806)

Note: Accessory

$

$

Not available
