AP 21507B (80244) - Snapper 21" Walk-Behind Mower, 5hp Snapperizer Parts Diagram

21" Walk-Behind Mower, 5hp

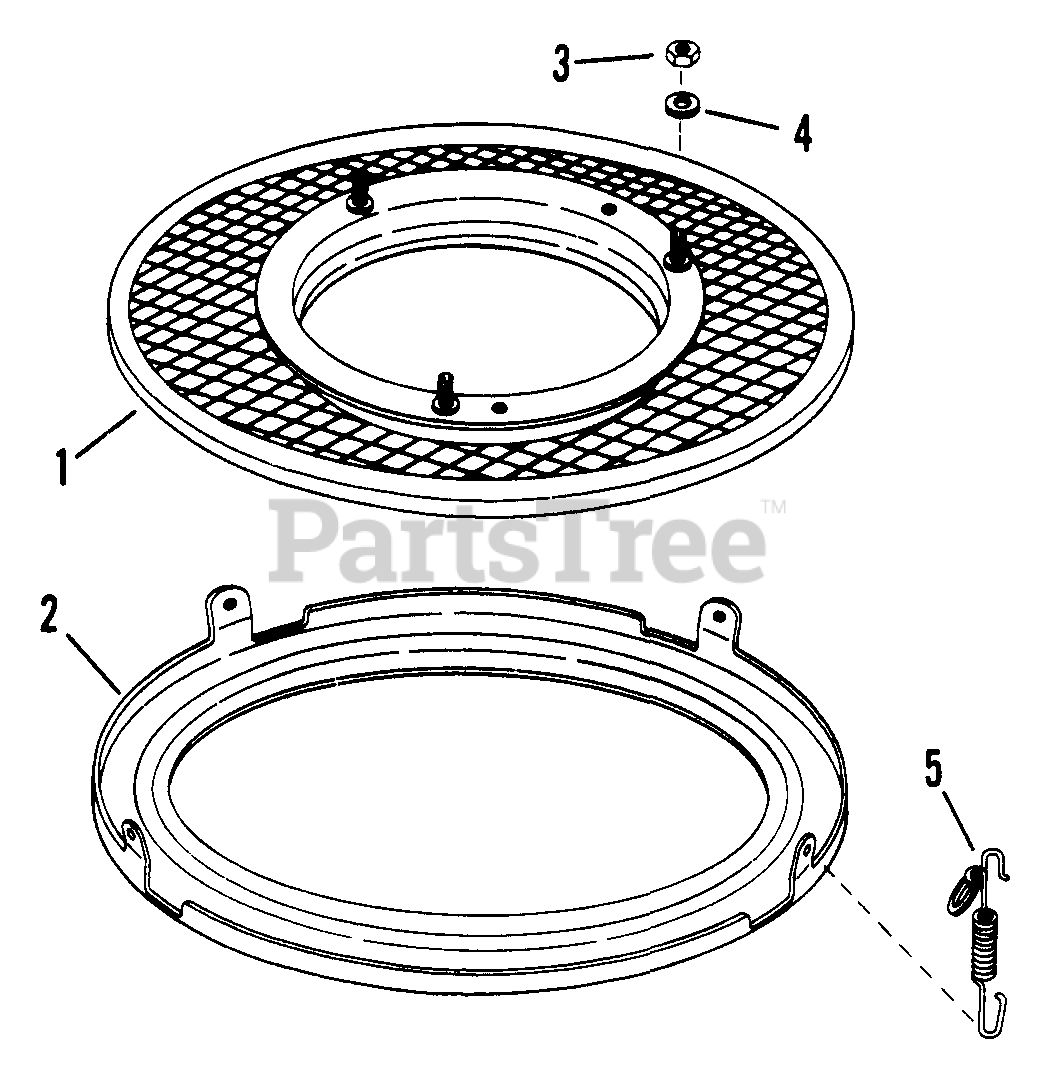

Snapperizer Parts Diagram

  • Title

Snapper 7060295

KIT, Snapperizer

Note: (Includes items 1 thru 5)

$

$

Currently unavailable

1

Snapper 7051243

SCREEN, Fastener Assembly
(Superseded to 7051243YP)

$164.99

$

Usually ships in 2-12 days

0

2

Snapper 7039759

RING, Bottom
(Superseded to 7039759YP)

$165.99

$

Usually ships in 2-12 days

0

3

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7012587

SPRING
(Superseded to 7012587YP)

$12.99

$

Usually ships in 2-12 days

0

Snapper 7061201

KIT, Recycling Plug
(Superseded to 7061201YP)

Note: Was 61032

$98.99

$

Usually ships in 2-12 days

0

Snapper 7017168

BLADE, 21"
(Superseded to 7041939BZYP)

$29.99

$

In Stock, only 1 left!

0

Snapper 7016814

PLUG, Chute Adapter
(Superseded to 7016814YP)

$49.99

$

In Stock, only 3 left!

0

Snapper 7090167

SCREW, 3/8 - 24 x 2" Hex Head Cap
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0
