AP 125 (UT-01711-C) - Homelite Pump Starter Parts Diagram

Pump

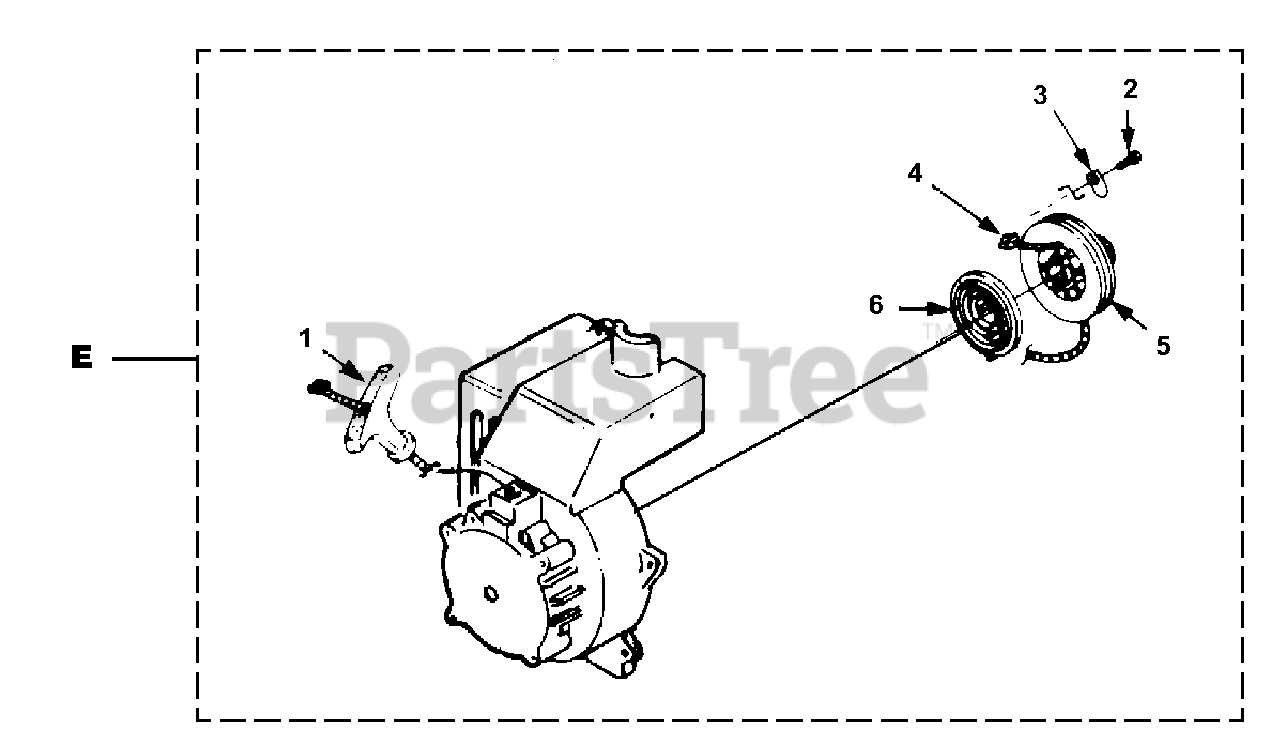

Starter Parts Diagram

  • Title
E

Homelite A06897

ENGINE HOUSING & DECAL KIT
(Superseded to UP06475)

$

$

Not available

1

Homelite 02264

GRIP-Starter
(Superseded to UP03832)

$

$

Not available

2

Homelite 82541

SCREW-Thread Form. (#10 X 1/2")

Note: (Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm)

$1.99

$

In Stock, only 3 left!

0

3

Homelite 98791

BRACKET-Retaining

$

$

Not available

4

Homelite 9789902

ROPE-Starter
(Superseded to 900849002)

$1.99

$

In Stock, Qty 5

0

5

Homelite 98770A

PULLEY-Starter

$

$

Not available

6

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

In Stock, only 2 left!

0
