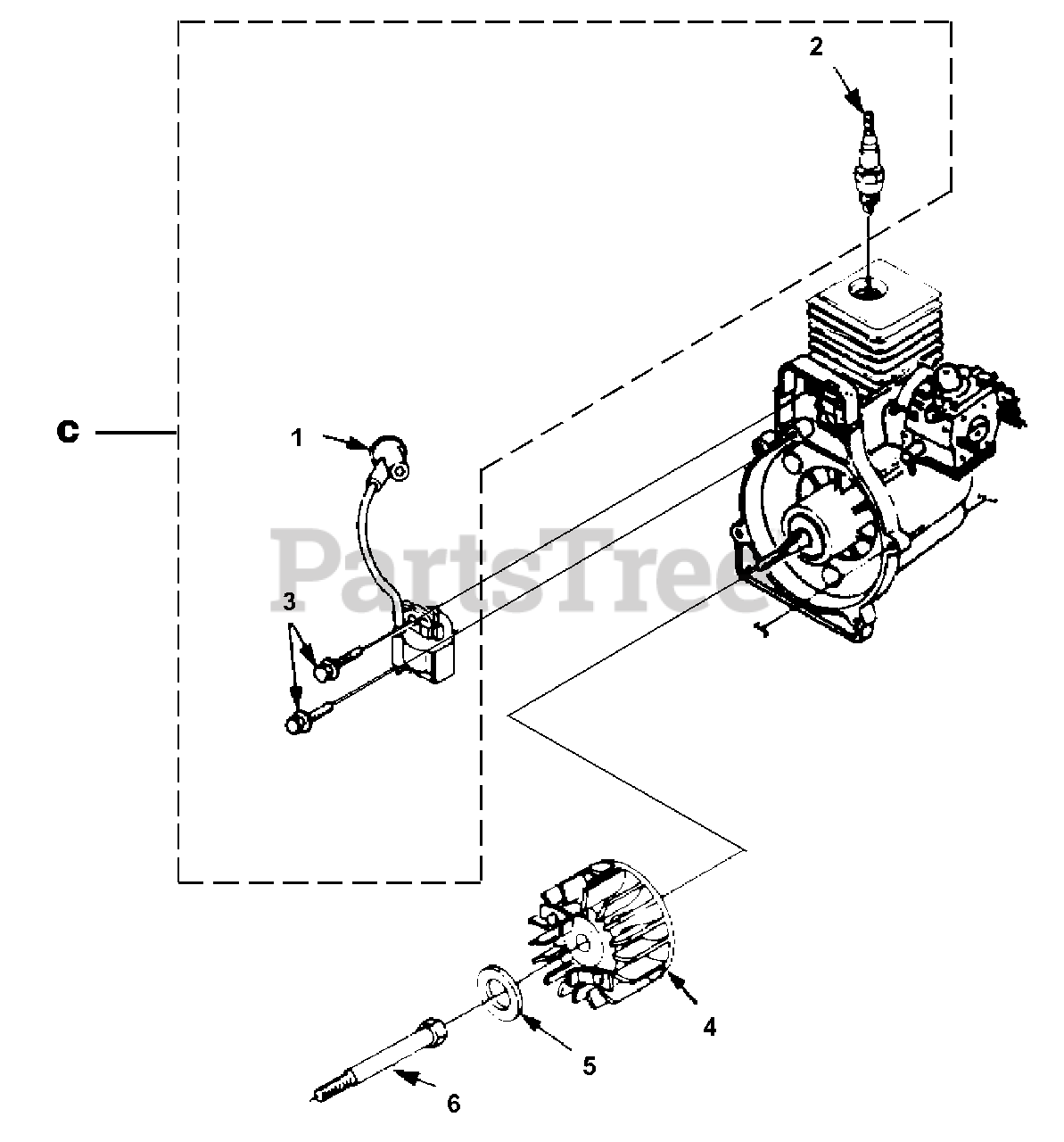

AP 125 (UT-01711-C) - Homelite Pump Ignition Parts Diagram

Pump

Ignition Parts Diagram

  • Title

C

Homelite A04446

IGNITION KIT
(Superseded to 984873001)

$

$

Not available

1

Homelite A33055

TERMINAL-Hi Tension

$

$

Not available

2

Homelite 79252

SPARK PLUG (RDJ-7Y)
(Superseded to UP03883)

Note: (Torque Specs 120-180 In/Lbs, 13.6-20.3 Nm)

$5.49

$

In Stock, only 3 left!

0

3

Homelite 82540

SCREW-Thread Form. (8-32 X 1")

Note: (Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite A04158S

ROTOR & STARTER PAWL KIT
(Superseded to UP03856A)

$

$

Not available

5

Homelite PS84065

WASHER-Flat

$

$

Not available

6

Homelite 02041

EXTENSION-Shaft
(Superseded to UP05519)

Note: (Torque Specs 100-150 In/Lbs, 11.3-16.9 Nm, Loctite Required Red 262)

$

$

Not available
