AP 125 (UT-01709-C) - Homelite Pump Pump Parts Diagram

Pump

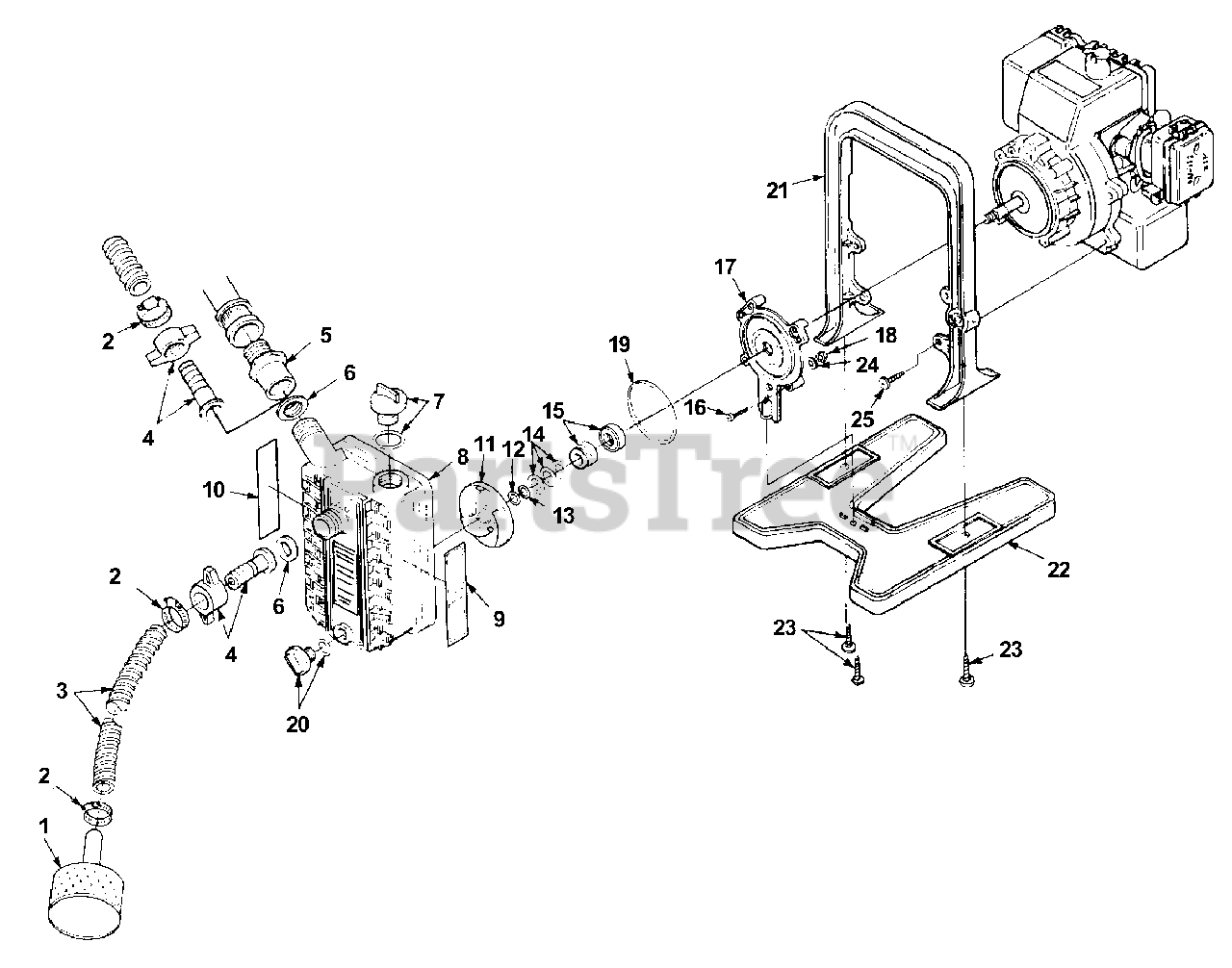

Pump Parts Diagram

  • Title

1

Homelite 02713

STRAINER (1")
(Superseded to UP05518)

$

$

Not available

2

Homelite 49956

CLAMP

$

$

Not available

3

Homelite 4846101

HOSE (1")
(Superseded to UP05539)

$

$

Not available

4

Homelite A02919

BARBED COUPLING
(Superseded to UP05545)

$24.99

$

Usually ships in 3-7 days

0

5

Homelite 02728

ADAPTOR-Garden Hose
(Superseded to UP05523)

$

$

Not available

6

Homelite 02988

GASKET

$

$

Not available

7

Homelite 02924

CAP w/O-RING
(Superseded to UP05527)

$23.99

$

Usually ships in 3-7 days

0

8

Homelite A03055

PUMP BODY & DECALS
(Superseded to UP05532)

$

$

Not available

9

Homelite 02715

DECAL-Operation

$3.99

$

Usually ships in 3-7 days

0

10

Homelite 02714

DECAL-Warning

$

$

Not available

11

Homelite 02926

IMPELLER

Note: (Torque Specs Hand Tight)

$

$

Not available

12

Homelite 02931

SHIM-(.030")(Impeller)
(Superseded to UP05535)

$

$

Not available

13

Homelite 02932

SHIM-(.015")(Impeller)
(Superseded to UP05536)

$

$

Not available

14

Homelite 02933

SHIM-(.030")(Seal)

$

$

Not available

15

Homelite 02927

SEAL

$

$

Not available

16

Homelite 82571

SCREW-Pan Hd. (10-24 X 1")
(Superseded to UP05543)

Note: (Torque Specs 15-20 In/Lbs, 1.7-2.3 Nm)

$

$

Not available

17

Homelite 02732

ADAPTER (Engine to Pump)
(Superseded to UP05526)

$

$

Not available

18

Homelite 02930

NUT (M5)

$

$

Not available

19

Homelite 02928

O-RING
(Superseded to UP05531)

$

$

Not available

20

Homelite 02925

CAP w/O-RING
(Superseded to UP05528)

$

$

Not available

21

Homelite 02730

HANDLE-Engine Mtg.

$

$

Not available

22

Homelite 02731A

BASE PLATE
(Superseded to UP05525)

$

$

Not available

23

Homelite 82563

SCREW-Thread Form. (10-14 X 3/4")

Note: (Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm)

$1.99

$

In Stock, Qty 6

0

24

Homelite 02929

WASHER-Flat(M5)

$

$

Not available

25

Homelite 82549

SCREW-Thread Form. (10-24 X 1")
(Superseded to 82507)

Note: (Torque Specs 30-35 In/Lbs, 3.4-4.0 Nm, Loctite Required Red 262)

$

$

Not available
