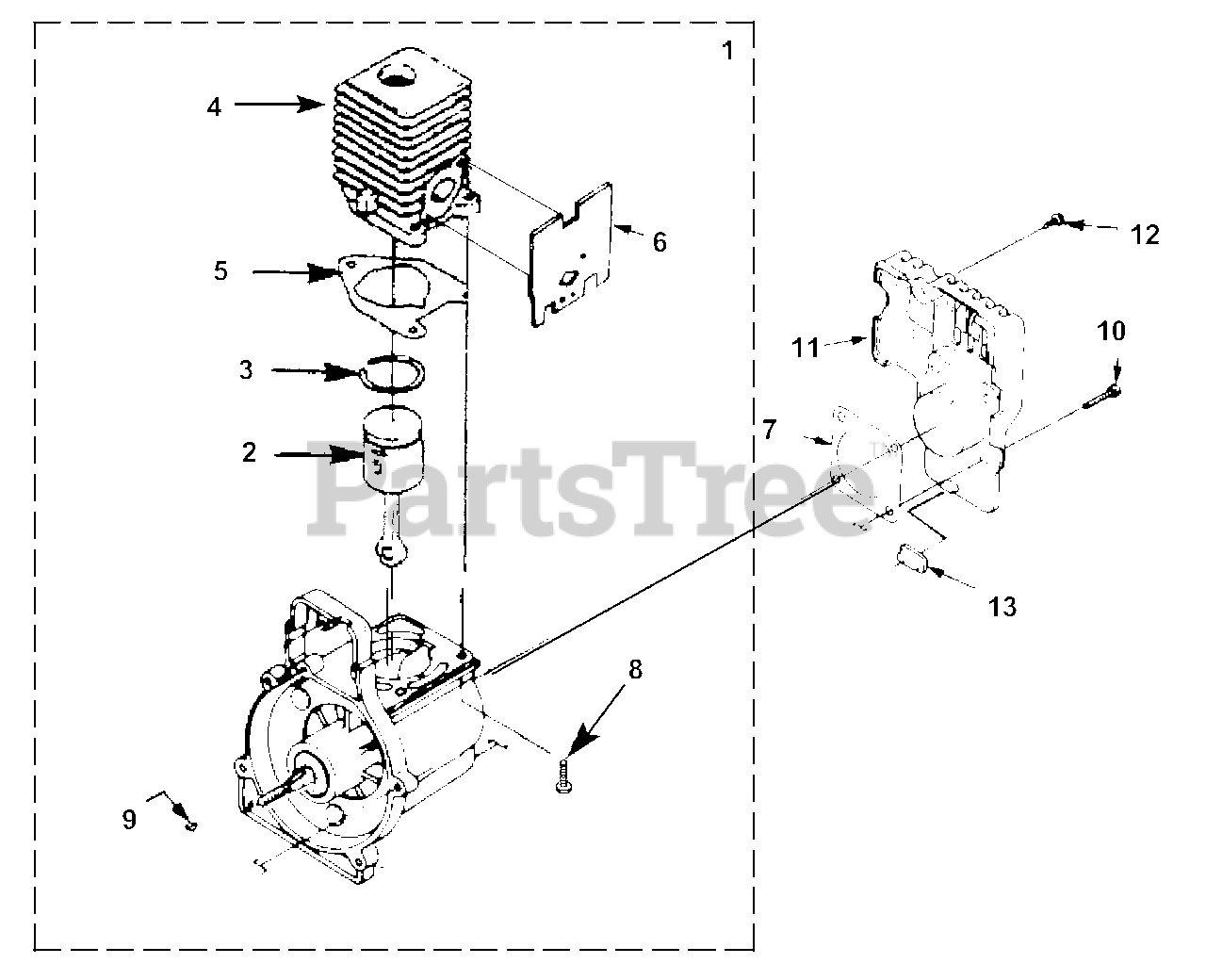

AP 125 (UT-01709-B) - Homelite Pump Engine Internal Parts Diagram

Pump

Engine Internal Parts Diagram

  • Title

1

Homelite UP00739

SHORT BLOCK
(Superseded to UP03117)

$

$

Not available

2

Homelite UP00016

PISTON & ROD
(Superseded to UP00768)

$

$

Not available

3

Homelite PS01359

RING-Piston
(Superseded to 678001002)

$

$

Not available

4

Homelite UP07145

CYLINDER KIT
(Superseded to UP07145A)

$74.99

$

In Stock, only 1 left!

0

5

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

7

Homelite 08661

GASKET-Crankcase Cover

$

$

Not available

8

Homelite 880841

SCREW, SEMS (12-24 x .750)
(Superseded to UP04345)

Note: (Torque Specs 55-65 In/Lbs, 6.2-7.3 Nm)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 69250

KEY-Woodruff

$

$

Not available

10

Homelite 880811

SCREW, SEMS (10-24 x .910)

Note: (Torque Specs 25-30 In/Lbs, 2.8-3.4 Nm)

$

$

Not available

11

Homelite A00858

CRANKCASE COVER

$14.99

$

Usually ships in 3-7 days

0

7

Homelite 08661

GASKET-Crankcase Cover

$

$

Not available

12

Homelite 82541

SCREW-Plastite (#10 X 1/2")

Note: (Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm)

$1.99

$

In Stock, only 3 left!

0

13

Homelite 98792

BUMPER, Rubber

$1.49

$

Usually ships in 3-7 days

0
