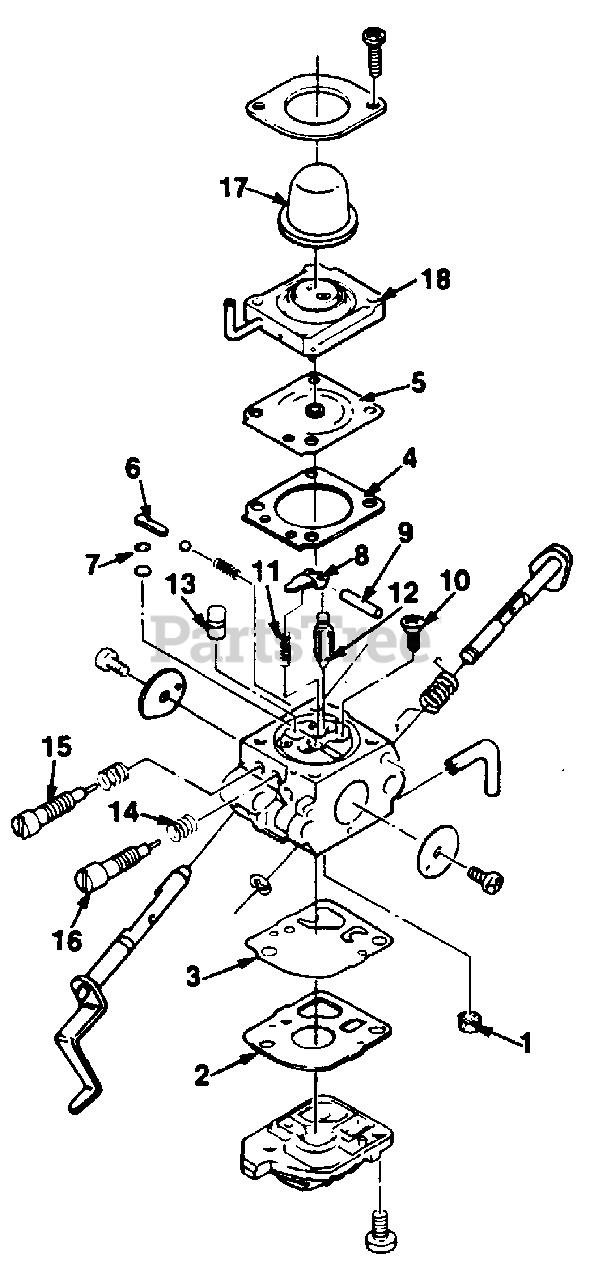

AP 125 (UT-01704) - Homelite Pump Zama Carburetor Parts Diagram

Pump

Zama Carburetor Parts Diagram

  • Title
1

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

2

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

Homelite A01197A

Gasket Kit (2-5)

$

$

Currently unavailable

3

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

Homelite A01197A

Gasket Kit (2-5)

$

$

Currently unavailable

4

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

Homelite A01197A

Gasket Kit (2-5)

$

$

Currently unavailable

5

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

Homelite A01197A

Gasket Kit (2-5)

$

$

Currently unavailable

6

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

7

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

8

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

9

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

10

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

11

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

12

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

13

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

14

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

15

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

16

Homelite A01198A

REPAIR KIT (1-16)

$

$

Currently unavailable

17

Homelite A01195A

Primer Bulb (17)
(Superseded to UP04803)

$

$

Not available

18

Homelite A02846

Primer Base (18)

$

$

Not available
