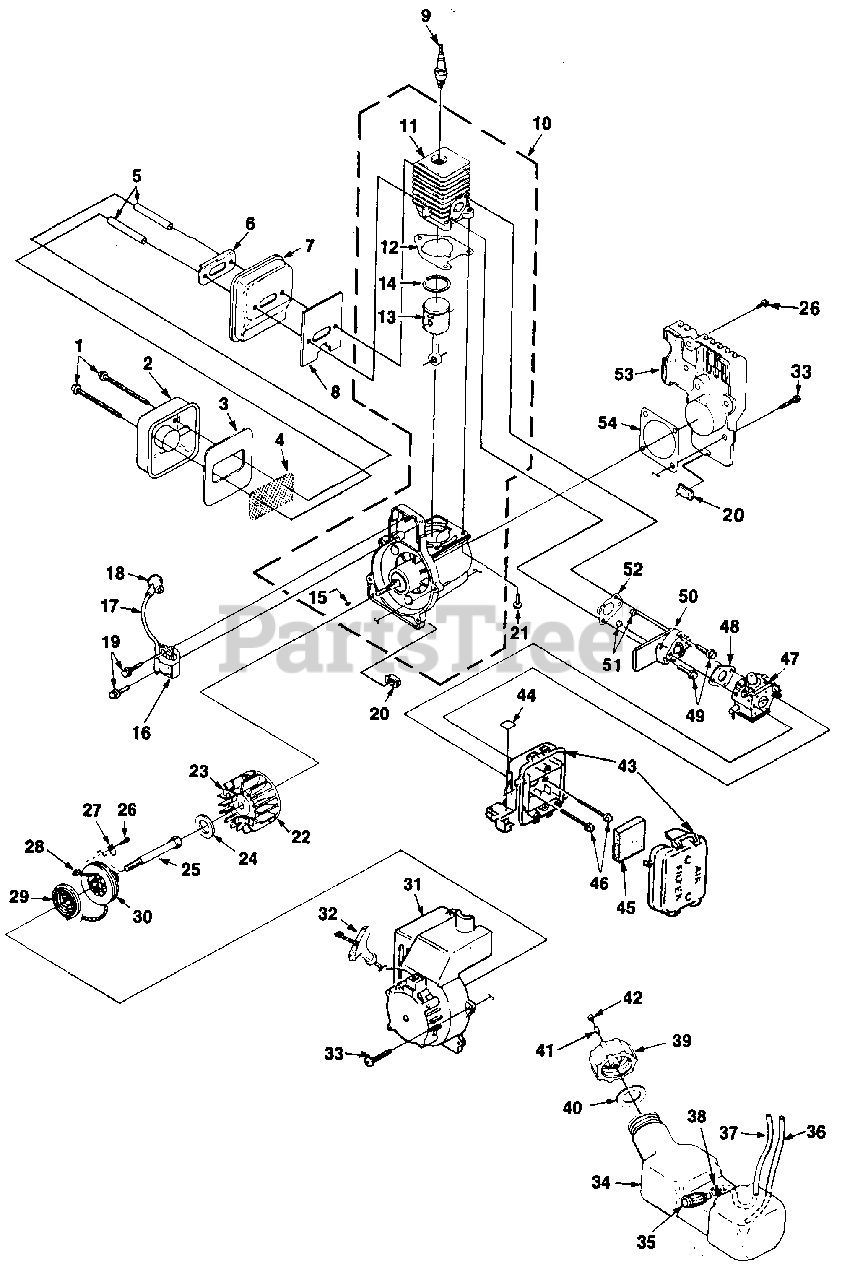

  • Title
1

Homelite 88060

SCREW Sems hex hd. (10-24 x 2 1/2")
(Superseded to 660673001)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite A98780

MUFFLER- Cover
(Superseded to A04786)

$

$

Not available

3

Homelite 98782

BAFFLE- Muffler
(Superseded to UP05878)

$4.99

$

Usually ships in 3-7 days

0

4

Homelite 98784A

SCREEN- Spark

$

$

Currently unavailable

5

Homelite 98860A

SPACER- Muffler
(Superseded to 04785)

$

$

Not available

6

Homelite 98783

PLATE- Reinforcing

$

$

Not available

7

Homelite A01323

MUFFLER BODY
(Superseded to A04837)

$

$

Not available

8

Homelite 98786B

GASKET- Muffler

$

$

Currently unavailable

9

Homelite 96169S

SPARK PLUG (Champion DJ7Y)
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

10

Homelite A00410

SHORT BLOCK

$

$

Currently unavailable

11

Homelite A00108

CYLINDER & GASKET
(Superseded to UP07145A)

$74.99

$

In Stock, only 1 left!

0

12

Homelite 03703A

GASKET- Cylinder
(Superseded to UP03857)

$

$

Not available

13

Homelite A04258

PISTON & ROD ASSY.
(Superseded to UP00768)

$

$

Not available

14

Homelite 96935

RING- Piston
(Superseded to UP03838)

$

$

Not available

15

Homelite 69250

KEY- Woodruff

$

$

Not available

16

Homelite 94711CS

MODULE- Ignition (Phelon)

$

$

Not available

17

Homelite 69326

LEAD- Hi-Tension

$

$

Not available

18

Homelite A33055

TERMINAL- Hi-Tension

$

$

Not available

19

Homelite 82540

SCREW- Taptite (8-32 x 1")

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 98792

BUMPER- Rubber

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 82538

SCREW- Taptite (10-24 x 3/4")

$1.99

$

Usually ships in 3-7 days

0

22

Homelite A04158

ROTOR & STARTER PAWL
(Superseded to UP03856)

$

$

Not available

23

Homelite A70285E

STARTER PAWL KIT

$101.99

$

Usually ships in 3-7 days

0

24

Homelite 84065

WASHER
(Superseded to UP04241)

$

$

Not available

25

Homelite 02041

EXTENSION- Shaft
(Superseded to UP05519)

$

$

Not available

26

Homelite 82541

SCREW- Plastite (10 x 1/2")

$1.99

$

In Stock, only 3 left!

0

27

Homelite 98791

BRACKET Retaining

$

$

Not available

28

Homelite 9789902

ROPE- Starter
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite A98773

SPRING & CONTAINER

$

$

Currently unavailable

30

Homelite 98770

PULLEY- Starter
(Superseded to 98770A)

$3.99

$

Usually ships in 3-7 days

0

31

Homelite A02576B

ENGINE HOUSING & DECAL KIT

$

$

Currently unavailable

32

Homelite 02264

GRIP- Starter rope
(Superseded to UP03832)

$

$

Not available

33

Homelite 825491

SCREW (10-24 x 1")
(Superseded to UP05542)

$

$

Not available

34

Homelite A01441

FUEL TANK

$

$

Currently unavailable

35

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

36

Homelite 0143932

TUBING- Rubber (8")
(Superseded to UP03825)

$

$

Not available

37

Homelite 9477232

TUBING- Rubber (8")
(Superseded to UP03905)

$

$

Not available

38

Homelite 98268

CLAMP- Wire
(Superseded to 690765001)

$1.99

$

In Stock, Qty 6

0

39

Homelite A00982A

FUEL CAP

$

$

Currently unavailable

40

Homelite 98805A

GASKET- Fuel cap

$

$

Not available

41

Homelite 98819

VALVE- Filter

$

$

Not available

42

Homelite 98913

CAP- Filter
(Superseded to PS98913)

$4.99

$

Usually ships in 3-7 days

0

43

Homelite A00587

AIR FILTER BOX
(Superseded to A00587A)

$

$

Not available

44

Homelite 00772

DECAL- Choke

$

$

Not available

45

Homelite D98760A

FILTER- Air

$

$

Currently unavailable

46

Homelite 82542

SCREW- (10-24 x 2 1/4")

$4.99

$

Usually ships in 3-7 days

0

47

Homelite A04331

CARBURETOR (Walbro)

$

$

Currently unavailable

48

Homelite 98766A

GASKET- Carburetor
(Superseded to 900994004)

$

$

Not available

49

Homelite 825491

SCREW- Taptite (10-24 x 1")
(Superseded to UP05542)

$

$

Not available

50

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

51

Homelite 81208

NUT- (10-24)

$

$

Not available

52

Homelite 98765B

GASKET- Heat dam

$4.99

$

Usually ships in 3-7 days

0

53

Homelite 01023B

CRANKCASE COVER
(Superseded to A00858)

$14.99

$

Usually ships in 3-7 days

0

54

Homelite 98767A

GASKET- Crankcase cover

$

$

Not available
