AHS 262 - Shindaiwa Articulating Hedge Trimmer (SN: V04413001001 - V04413999999) FAN CASE Parts Diagram

Articulating Hedge Trimmer

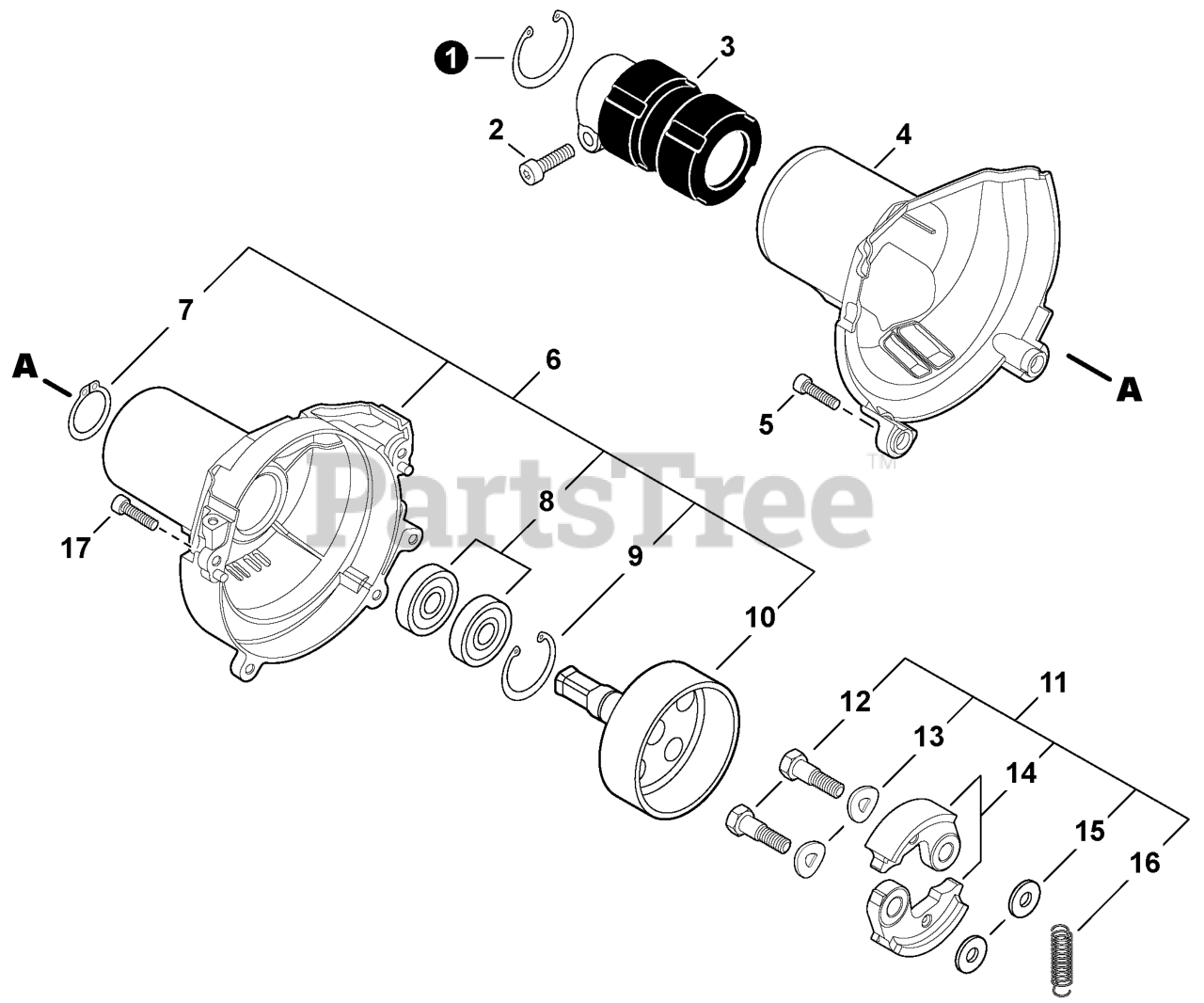

FAN CASE Parts Diagram

  • Title

1

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 18

0

2

Echo V805000170

BOLT, TORX 5x25

$0.99

$

Usually ships in 2-4 days

0

3

Echo A575000110

HOLDER, MAIN PIPE

$24.99

$

In Stock, only 1 left!

0

4

Echo A413000090

PROTECTOR, FAN COVER

$8.99

$

Usually ships in 2-4 days

0

5

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

6

Echo P021054130

COVER ASSY, FAN

Note: Includes items 7-10

$43.99

$

In Stock, Qty 8

0

7

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

8

Echo 9406106001

BEARING, BALL 6001

$6.49

$

In Stock, Qty 13

0

9

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 15

0

10

Echo A556001760

DRUM, CLUTCH

$14.99

$

In Stock, Qty 8

0

11

Echo P021050860

CLUTCH ASSY

Note: Includes items 12-16

$49.99

$

In Stock, Qty 20+

0

12

Echo 17504656030

BOLT, CLUTCH 8x7.9xM6

$4.99

$

In Stock, Qty 9

0

13

Echo 17504956030

WASHER, SPRING 8.5x16x0.5

$1.49

$

In Stock, Qty 20+

0

14

Echo A553000190

SHOE, CLUTCH

$6.99

$

In Stock, Qty 8

0

15

Echo 17504805530

WASHER 6.2x19x1.0

$1.49

$

In Stock, Qty 19

0

16

Echo V451001390

SPRING, CLUTCH

$3.49

$

In Stock, Qty 20+

0

17

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0
