AHS 262 - Shindaiwa Articulating Hedge Trimmer (SN: U00415001001 - U00415999999) FAN CASE Parts Diagram

Articulating Hedge Trimmer

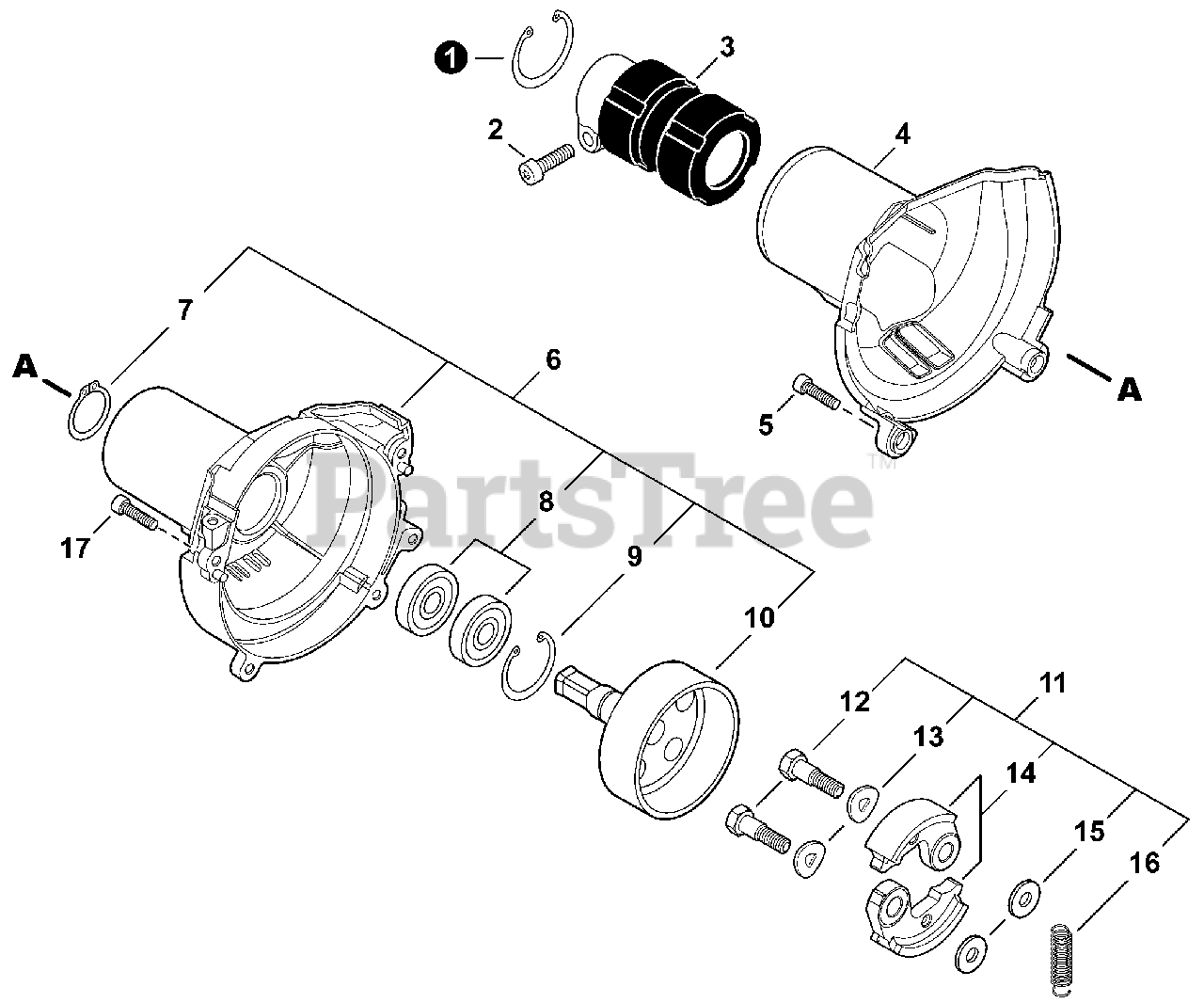

FAN CASE Parts Diagram

  • Title

1

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 18

0

2

Echo V805000170

BOLT, TORX 5×25

$0.99

$

Usually ships in 2-4 days

0

3

Echo A575000110

HOLDER, MAIN PIPE

$24.99

$

In Stock, only 1 left!

0

4

Echo A413000090

PROTECTOR, FAN COVER

$8.99

$

Usually ships in 2-4 days

0

5

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

6

Echo P021051351

COVER ASSY, FAN
(Superseded to P021052390)

Note: Includes ITEMS 7-10

$72.99

$

Usually ships in 2-4 days

0

7

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

8

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

9

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 15

0

10

Echo A556001760

DRUM, CLUTCH

$14.99

$

In Stock, Qty 8

0

11

Echo P021050860

CLUTCH ASSY

Note: Includes ITEMS 12-16

$49.99

$

In Stock, Qty 20+

0

12

Echo 17504656030

BOLT, CLUTCH 8×7.9×M6

$4.99

$

In Stock, Qty 9

0

13

Echo 17504956030

WASHER, SPRING 8.5×16×0.5

$1.49

$

In Stock, Qty 20+

0

14

Echo A553000190

SHOE, CLUTCH

$6.99

$

In Stock, Qty 8

0

15

Echo 17504805530

WASHER 6.2×19×1.0

$1.49

$

In Stock, Qty 19

0

16

Echo V451001390

SPRING, CLUTCH

$3.49

$

In Stock, Qty 20+

0

17

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0
