AHS 254 - Shindaiwa Articulating Hedge Trimmer (SN: T12513001001 - T12513999999) FAN CASE Parts Diagram

Articulating Hedge Trimmer

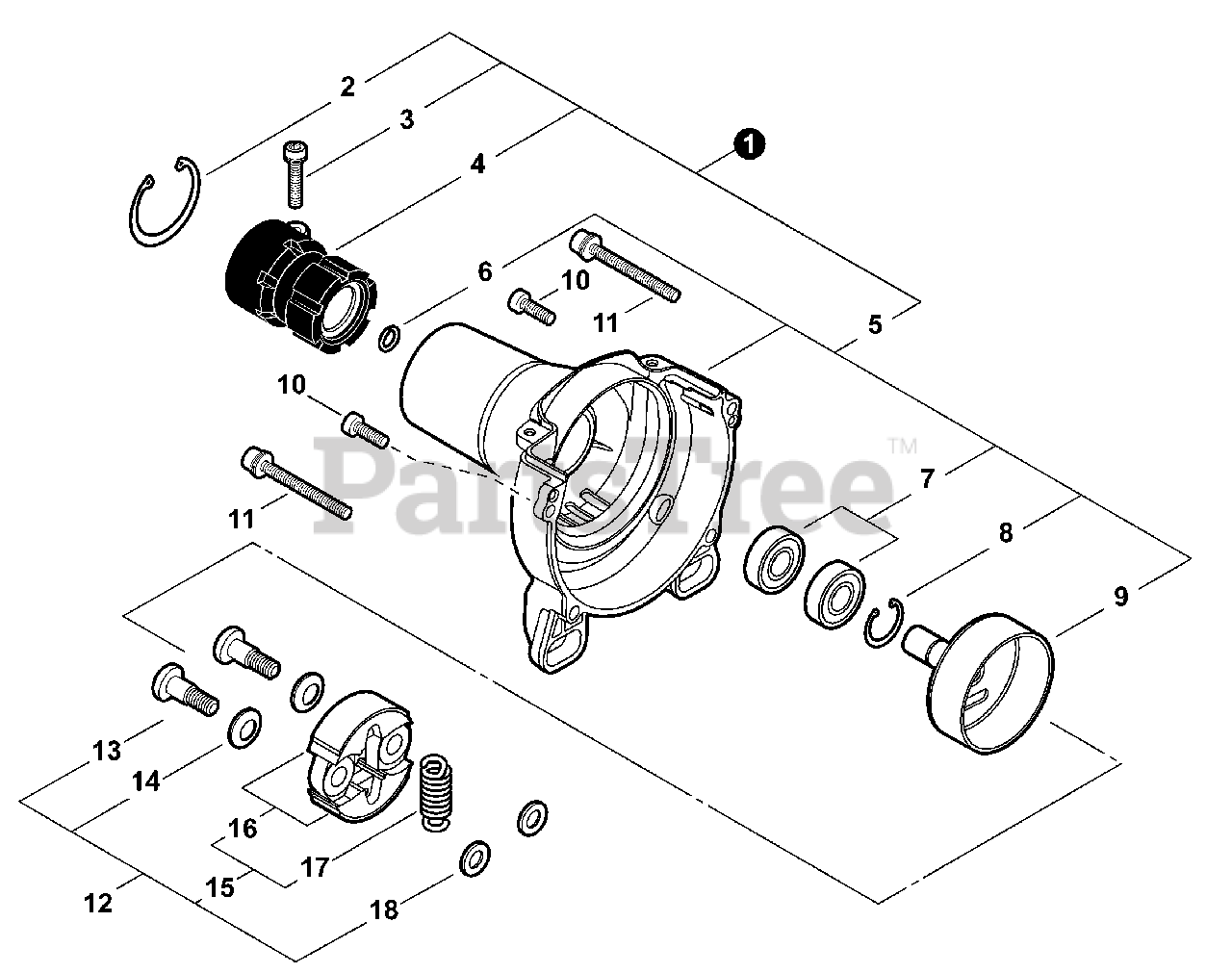

FAN CASE Parts Diagram

  • Title
1

Echo P021036580

COVER ASSY, FAN

Note: Includes Items 2-9

$76.99

$

Usually ships in 2-4 days

0

2

Echo 9242440000

RING, SNAP 40

$1.99

$

In Stock, only 4 left!

0

3

Echo V203000620

BOLT M5×22

$0.99

$

Usually ships in 2-4 days

0

4

Echo A575000470

CUSHION, AV

$16.99

$

In Stock, only 1 left!

0

5

Echo P021036590

COVER KIT, FAN

Note: Includes Items 6-9

$58.99

$

In Stock, only 1 left!

0

6

Echo 90070600010

RING, SNAP 10

$1.49

$

In Stock, Qty 20+

0

7

Echo 9404406000

BEARING, BALL 6000ZZ

$9.99

$

In Stock, Qty 14

0

8

Echo 9242426000

RING, SNAP 26

$0.99

$

In Stock, Qty 6

0

9

Echo A556001300

DRUM, CLUTCH

$23.99

$

In Stock, Qty 9

0

10

Echo 9110105016

BOLT M5×16

$0.99

$

Usually ships in 2-4 days

0

11

Echo V203000780

BOLT M5×45

$1.99

$

Usually ships in 2-4 days

0

12

Echo A056000520

CLUTCH ASSY
(Superseded to A056000521)

Note: Includes Items 13-18

$42.99

$

In Stock, Qty 15

0

13

Echo A557000040

BOLT, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

14

Echo V346000040

WASHER, SPRING

$0.99

$

Usually ships in 2-4 days

0

15

Echo A056000530

SHOE ASSY, CLUTCH
(Superseded to A056000520)

Note: Includes Items 16-17

$42.99

$

In Stock, Qty 15

0

16

Echo A553000060

SHOE, CLUTCH

$18.99

$

In Stock, only 4 left!

0

17

Echo A566000200

SPRING, CLUTCH
(Superseded to A566000201)

$2.49

$

In Stock, only 3 left!

0

18

Echo V304000150

WASHER 6MM

$0.99

$

Usually ships in 2-4 days

0
