AHS 2510 - Shindaiwa Articulating Hedge Trimmer Air Cleaner, Carburetor Parts Diagram

Articulating Hedge Trimmer

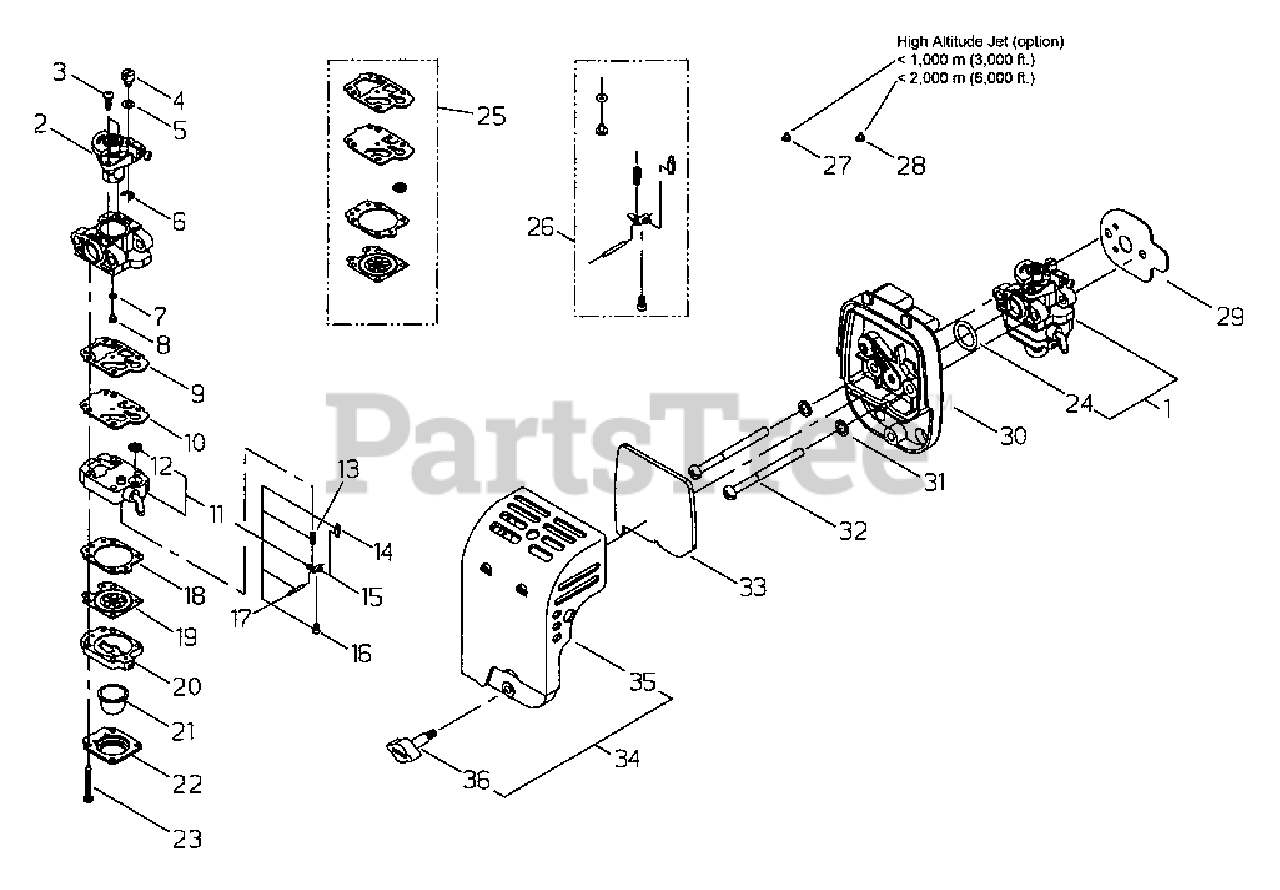

Air Cleaner, Carburetor Parts Diagram

  • Title

1

Echo 62908-81011

CARBURETOR
(Superseded to A021002740)

$85.99

$

In Stock, only 1 left!

0

2

Echo 62908-81311

THROTTLE VALVE ASSY
(Superseded to P003003950)

$35.99

$

Usually ships in 2-4 days

0

3

Echo 70064-81290

SCREW
(Superseded to 12311444330)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

6

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

7

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

8

Echo 60084-98320

JET, MAIN
(Superseded to P003003440)

$7.49

$

Usually ships in 2-4 days

0

9

Echo 70097-81310

GASKET, PUMP
(Superseded to 12312540630)

$4.99

$

In Stock, only 1 left!

0

10

Echo 70097-81320

DIAPHRAGM, PUMP
(Superseded to 12311240630)

$12.99

$

In Stock, only 1 left!

0

11

Echo 37013-81350

PUMP BODY ASSY
(Superseded to P003000510)

$14.99

$

In Stock, only 4 left!

0

12

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 17

0

13

Echo 72933-81270

SPRING, METERING LEVER
(Superseded to 12312205560)

$3.99

$

Usually ships in 2-4 days

0

14

Echo 20036-81440

VALVE, INLET NEEDLE
(Superseded to 12313719830)

$18.99

$

Usually ships in 2-4 days

0

15

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

16

Echo 20016-81450

SCREW, METERING LEVER PIN
(Superseded to 12313905560)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

18

Echo 20016-81280

GASKET, METERING
(Superseded to 12314005560)

$3.99

$

In Stock, only 2 left!

0

19

Echo 37013-81310

DIAPHRAGM, METERING
(Superseded to P003000090)

$17.99

$

In Stock, only 1 left!

0

20

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

21

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

22

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

23

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

24

Echo 20016-81250

O-RING - 15
(Superseded to 90072000015)

$1.99

$

In Stock, Qty 20+

0

25

Echo 60902-98030

DIAPHRAGM/GASKET KIT
(Superseded to P050008580)

$35.99

$

In Stock, only 1 left!

0

26

Echo 60908-98360

INLET NEEDLE VALVE KIT

$48.99

$

Usually ships in 2-4 days

0

27

Echo 60084-98330

JET, MAIN - 1000M
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

28

Echo 60908-98350

JET, MAIN - 2000M
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

29

Echo 62901-81211

GASKET
(Superseded to V103001140)

$2.99

$

In Stock, only 3 left!

0

30

Echo 62905-82010

CASE, AIR FILTER
(Superseded to P021037300)

$41.99

$

In Stock, only 1 left!

0

31

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

32

Echo 11203-05605

SCREW - 5X60
(Superseded to 9158105060)

$1.99

$

In Stock, only 3 left!

0

33

Echo 62902-82120

FILTER, AIR
(Superseded to A226001470)

$2.99

$

In Stock, Qty 20+

0

34

Echo 62902-82030

AIR FILTER COVER ASSY
(Superseded to P021037300)

$41.99

$

In Stock, only 1 left!

0

35

Echo 62901-82131

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

36

Echo 62901-82330

THUMBSCREW
(Superseded to V299000570)

$6.49

$

In Stock, Qty 5

0
