AHS 242 - Shindaiwa Articulating Hedge Trimmer (Original Version) Piston / Clutch Shoe Parts Diagram

Articulating Hedge Trimmer

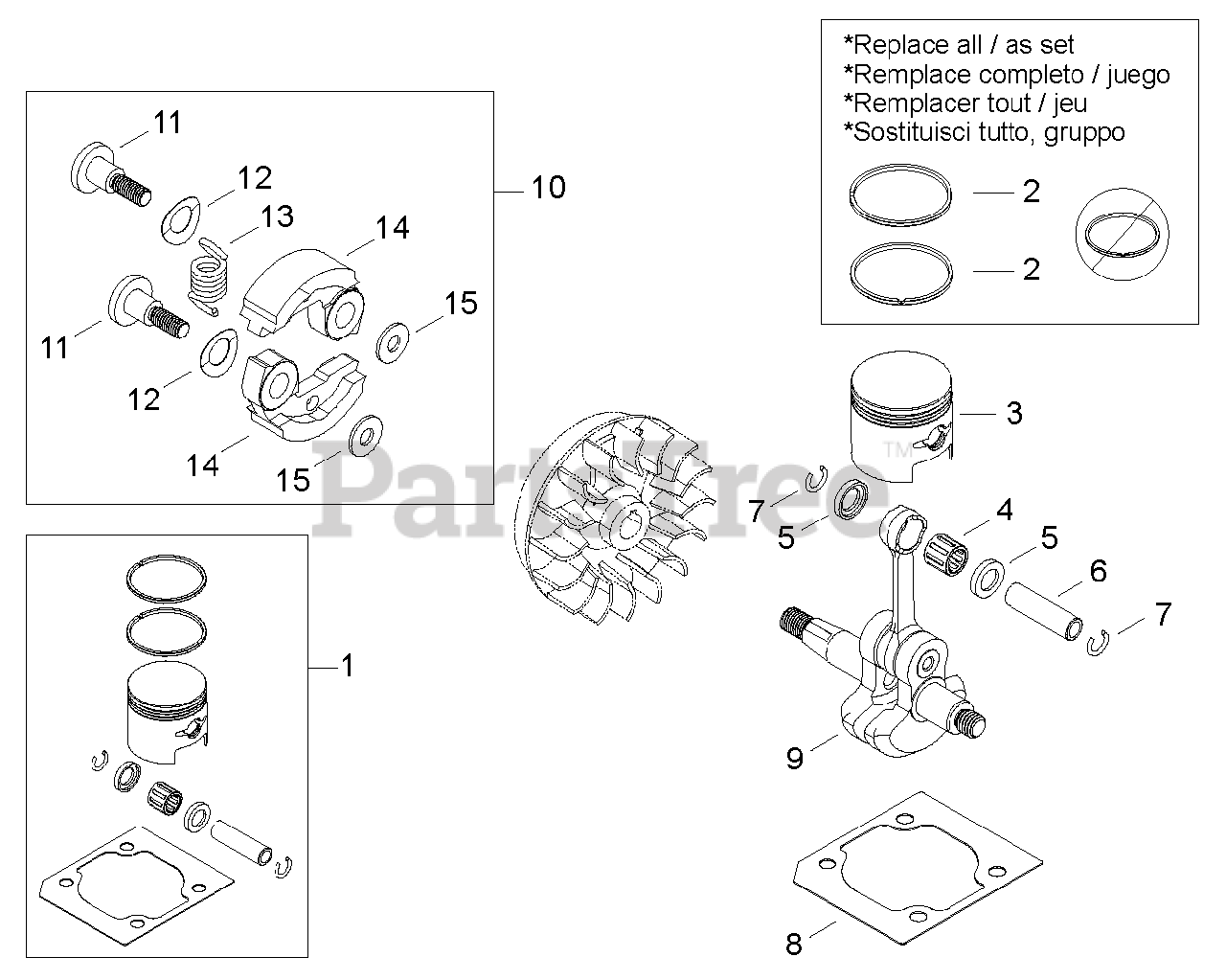

Piston / Clutch Shoe Parts Diagram

  • Title

3-1

Echo 60114-98310

PISTON KIT
(Superseded to P021027250)

$57.99

$

In Stock, only 1 left!

0

2

Echo 72933-41210

RING, PISTON
(Superseded to A101000290)

$4.99

$

In Stock, Qty 11

0

3

Echo 62100-41111

PISTON
(Superseded to A100000530)

$39.99

$

Usually ships in 2-4 days

0

4

Echo 37013-41230

BEARING, NEEDLE - 8
(Superseded to V553000080)

$6.49

$

Usually ships in 2-4 days

0

5

Echo 37013-41240

SPACER, PISTON
(Superseded to V306000250)

$2.49

$

Usually ships in 2-4 days

0

6

Echo 72933-41310

PIN, PISTON
(Superseded to V606000030)

$2.49

$

Usually ships in 2-4 days

0

7

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

8

Echo 62100-12120

GASKET, CYLINDER
(Superseded to V100000340)

$1.99

$

In Stock, only 4 left!

0

9

Echo 62100-42011

CRANKSHAFT ASSY
(Superseded to A011000700)

$67.99

$

Usually ships in 2-4 days

0

10

Echo 70140-51102

CLUTCH ASSY
(Superseded to A056000260)

$32.99

$

In Stock, Qty 20+

0

11

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

12

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 37013-51310

SPRING, CLUTCH
(Superseded to A566000050)

$2.99

$

In Stock, Qty 9

0

14

Echo 70140-51113

SHOE, CLUTCH
(Superseded to A553000060)

$18.99

$

In Stock, only 4 left!

0

15

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0
