AHS 242 - Shindaiwa Articulating Hedge Trimmer (Original Version) Fuel Tank Parts Diagram

Articulating Hedge Trimmer

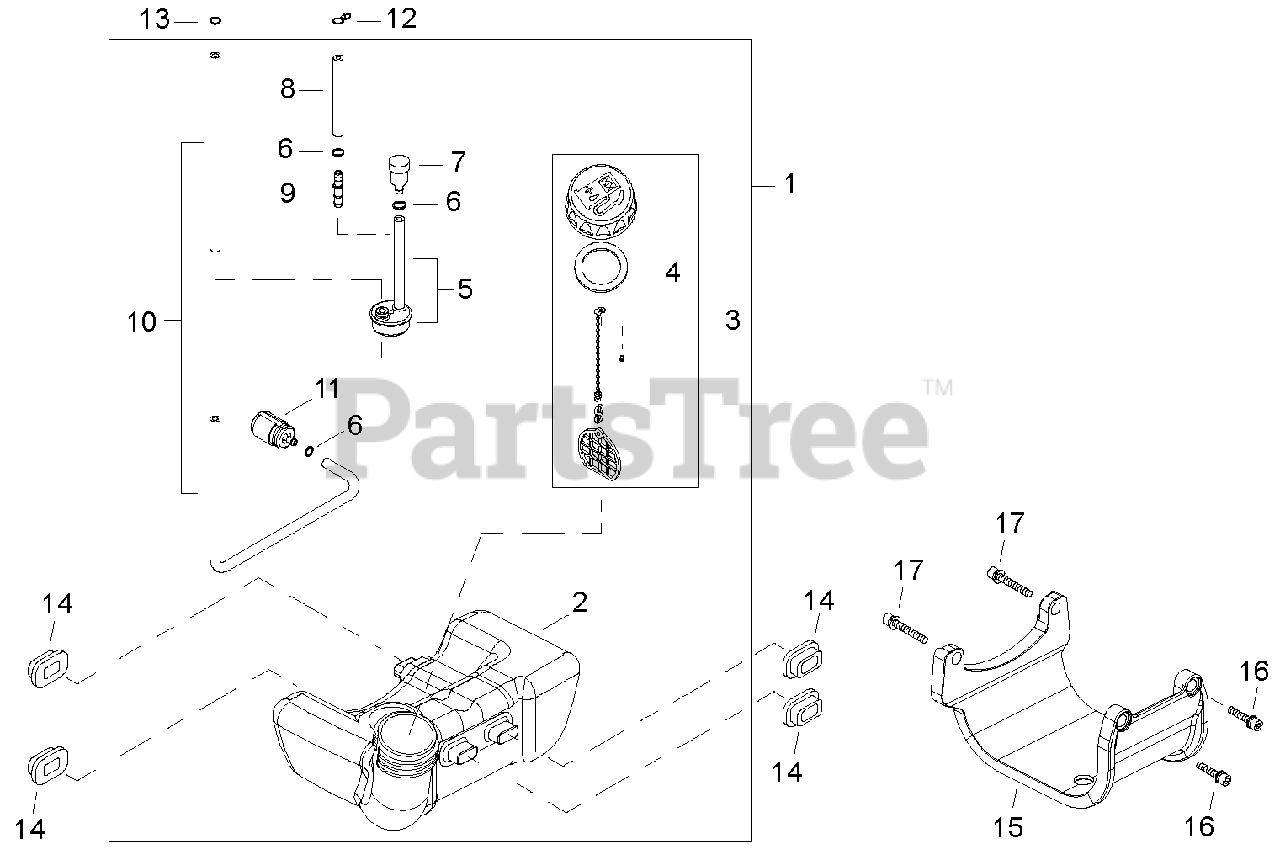

Fuel Tank Parts Diagram

  • Title

6-1

Echo 62117-85010

FUEL TANK ASSY
(Superseded to P021028090)

$

$

Not available

2

Echo 62117-85110

TANK, FUEL
(Superseded to A350001080)

$

$

Not available

3

Echo 68204-85020

CAP ASSY
(Superseded to A033000020)

$8.49

$

In Stock, only 1 left!

0

4

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 17

0

5

Echo 72933-85350

VENT PIPE ASSY
(Superseded to V470000890)

$5.99

$

In Stock, Qty 9

0

6

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

7

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

8

Echo 20140-83311

PIPE - RETURN
(Superseded to V471002490)

$1.99

$

In Stock, Qty 10

0

9

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$1.99

$

In Stock, only 4 left!

0

10

Echo 62035-85310

FUEL PICK-UP TUBE
(Superseded to V471002480)

$1.99

$

In Stock, Qty 14

0

11

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

12

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$0.99

$

In Stock, only 1 left!

0

13

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

14

Echo 62901-85220

CUSHION, FUEL TANK
(Superseded to V420002220)

$0.99

$

In Stock, Qty 7

0

15

Echo 62100-85310

GUARD, FUEL TANK
(Superseded to A175000080)

$7.49

$

In Stock, only 1 left!

0

16

Echo 11022-05180

SCREW - 5X18
(Superseded to V203000540)

$1.49

$

In Stock, only 4 left!

0

17

Echo 11024-05400

SCREW - 5X40
(Superseded to V203000520)

Note: AHS242

$1.99

$

In Stock, only 1 left!

0
