AHS 242 - Shindaiwa Articulating Hedge Trimmer (Original Version) Crankcase / Fan Cover / Engine & Muffler Cover Parts Diagram

Articulating Hedge Trimmer

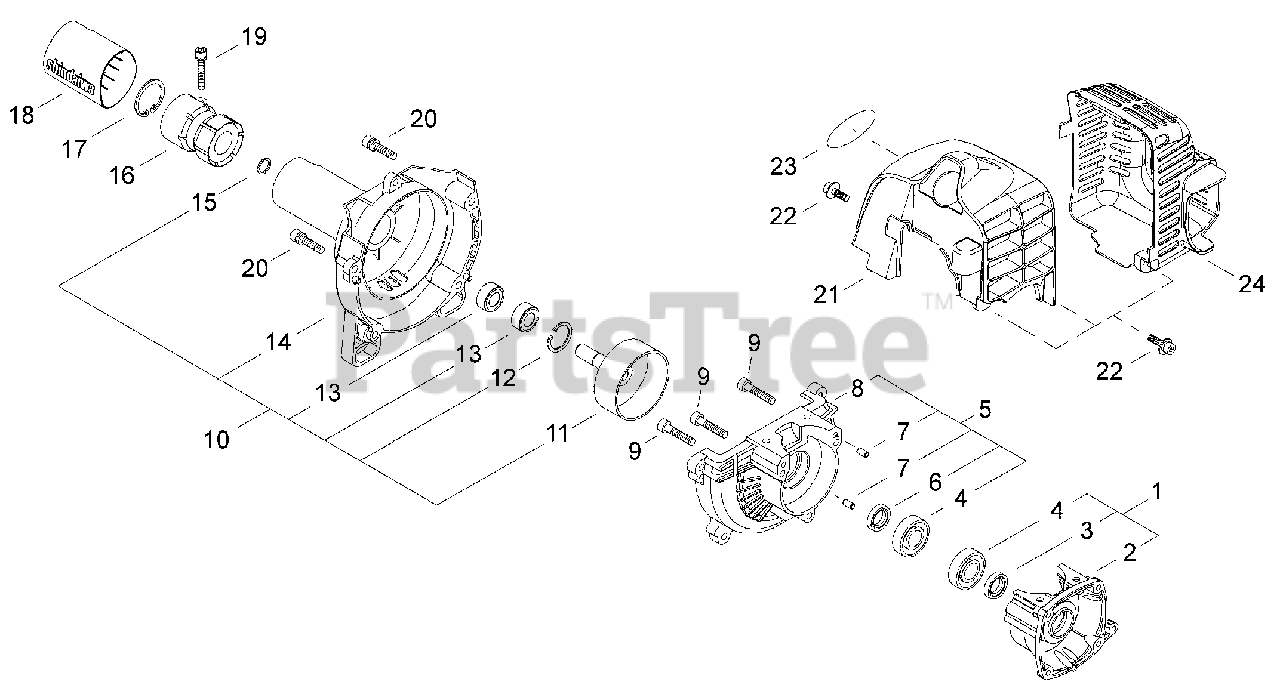

Crankcase / Fan Cover / Engine & Muffler Cover Parts Diagram

  • Title
2-1

Echo 62100-21010

CRANKCASE ASSY - REAR
(Superseded to P021028010)

$22.99

$

Usually ships in 2-4 days

0

2

Echo 62100-21111

CRANKCASE - REAR
(Superseded to A120000140)

$11.99

$

In Stock, only 2 left!

0

3

Echo 37013-21120

SEAL, OIL - 12
(Superseded to V505000070)

$5.99

$

In Stock, Qty 7

0

4

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

5

Echo 62100-21020

CRANKCASE ASSY - FRONT
(Superseded to P021028020)

$24.99

$

Usually ships in 2-4 days

0

4

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

6

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 10

0

7

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

8

Echo 62100-21211

CRANKCASE - FRONT
(Superseded to A120000130)

$15.99

$

Usually ships in 2-4 days

0

9

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 15

0

10

Echo 62100-31014

FAN CASE ASSY
(Superseded to P021028040)

$84.99

$

In Stock, Qty 8

0

11

Echo 62100-31210

DRUM, CLUTCH
(Superseded to A556000610)

$11.99

$

In Stock, only 2 left!

0

12

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 5

0

13

Echo 02006-06000

BEARING, BALL - 6000DDU
(Superseded to 90080206000)

$13.99

$

In Stock, Qty 20+

0

14

Echo 62100-31111

COVER, FAN
(Superseded to A172001700)

$30.99

$

Usually ships in 2-4 days

0

15

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

16

Echo 20087-31411

CUSHION
(Superseded to A575000190)

$16.99

$

In Stock, only 1 left!

0

17

Echo 02432-40170

RING, RETAINING - 40
(Superseded to 9242440000)

$1.99

$

In Stock, only 4 left!

0

18

Echo 62100-31311

PROTECTOR
(Superseded to A413000000)

$1.99

$

In Stock, only 1 left!

0

19

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 11022-05180

SCREW - 5X18
(Superseded to V203000540)

$1.49

$

In Stock, only 4 left!

0

21

Echo 62100-32111

COVER, ENGINE
(Superseded to A160001290)

$32.99

$

Usually ships in 2-4 days

0

22

Echo 11060-04163

SCREW - 4X16
(Superseded to V202000200)

$1.99

$

In Stock, Qty 20+

0

23

Echo 62100-91320

LABEL - MODEL 242

$2.49

$

In Stock, only 1 left!

0

24

Echo 62100-32312

COVER, EXHAUST
(Superseded to 6210032313)

$8.99

$

In Stock, Qty 20+

0
