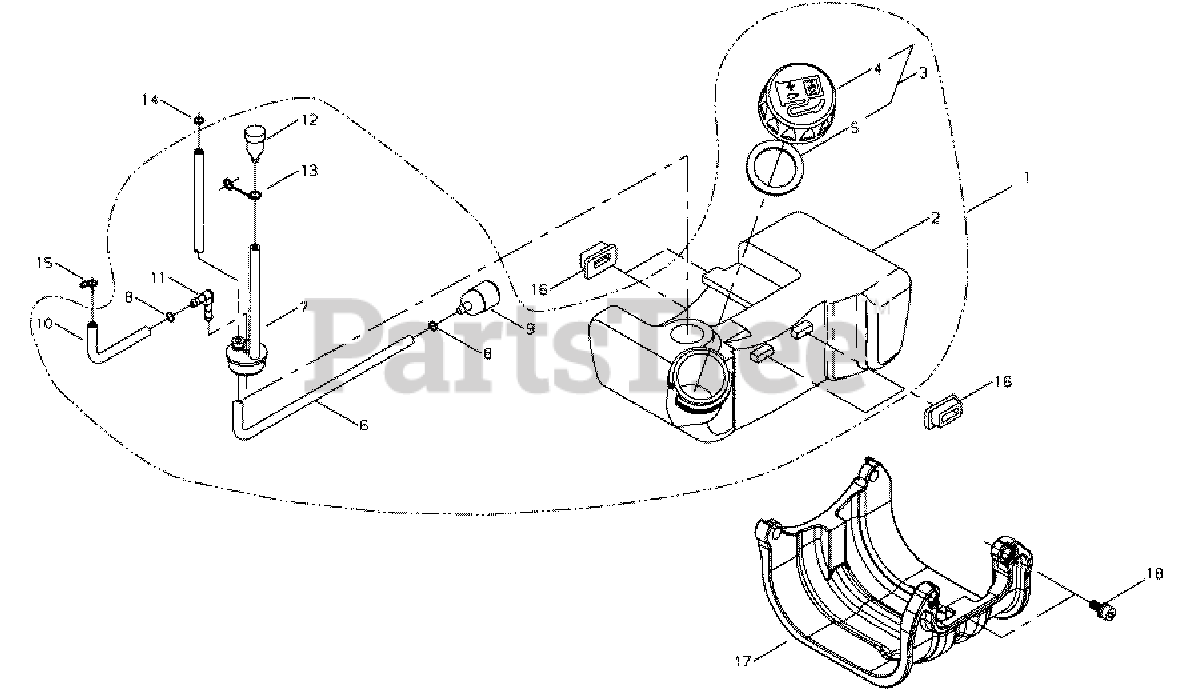

AHS 231 - Shindaiwa Articulating Hedge Trimmer Fuel Tank Parts Diagram

Articulating Hedge Trimmer

Fuel Tank Parts Diagram

  • Title

1

Echo 62023-85015

FUEL TANK ASSY
(Superseded to A038000160)

$

$

Not available

2

Echo 62023-85111

TANK, FUEL
(Superseded to A350001140)

$

$

Not available

3

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 20+

0

4

Echo 70168-85210

CAP, FUEL
(Superseded to A355000180)

$7.49

$

In Stock, only 1 left!

0

5

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

6

Echo 62023-85310

PIPE - FUEL
(Superseded to V471002610)

$1.99

$

In Stock, only 3 left!

0

7

Echo 62023-85320

VENT PIPE ASSY
(Superseded to V137000040)

$6.49

$

In Stock, only 2 left!

0

8

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 7

0

9

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

10

Echo 72933-85611

PIPE - RETURN
(Superseded to V471002340)

$1.99

$

In Stock, Qty 11

0

11

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

12

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

13

Echo 20016-12310

HOLDER, VENT
(Superseded to A358000040)

$0.99

$

In Stock, Qty 6

0

14

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 7

0

15

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$0.99

$

In Stock, Qty 20+

0

16

Echo 20024-86120

CUSHION, TANK
(Superseded to V420002630)

$1.49

$

In Stock, Qty 12

0

17

Echo 62902-85320

GUARD, FUEL TANK
(Superseded to A175000220)

$12.99

$

In Stock, only 1 left!

0

18

Echo 11022-05180

SCREW - 5X18
(Superseded to V203000540)

$1.49

$

In Stock, only 4 left!

0
