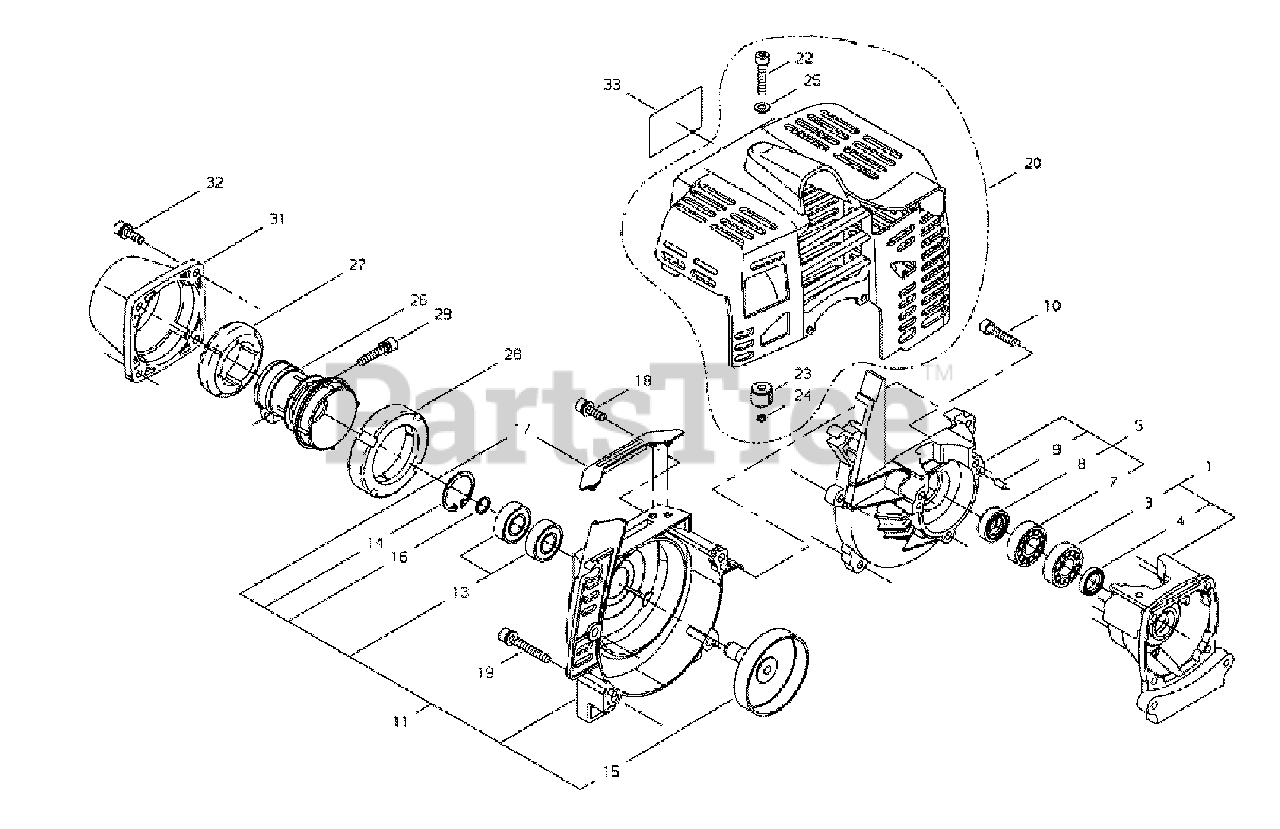

AHS 231 - Shindaiwa Articulating Hedge Trimmer Fan Cover, Crankcase, Cylinder Cover Parts Diagram

Articulating Hedge Trimmer

Fan Cover, Crankcase, Cylinder Cover Parts Diagram

  • Title
1

Echo 20016-21100

CRANKCASE ASSY - REAR
(Superseded to P021017910)

$37.99

$

Usually ships in 2-4 days

0

3

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

4

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 1 left!

0

5

Echo 20016-21200

CRANKCASE ASSY - FRONT
(Superseded to P021017920)

$42.99

$

Usually ships in 2-4 days

0

7

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

8

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 12

0

9

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

10

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

11

Echo 62010-31011

FAN CASE ASSY
(Superseded to P021027660)

$122.99

$

Usually ships in 2-4 days

0

13

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 14

0

14

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

15

Echo 20087-31210

DRUM, CLUTCH
(Superseded to 20087-31211)

$23.99

$

In Stock, Qty 9

0

16

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

17

Echo 70140-31130

CUSHION
(Superseded to V420002620)

$1.99

$

Usually ships in 2-4 days

0

18

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

19

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

20

Echo 62023-32010

ENGINE COVER KIT
(Superseded to P021027690)

$29.99

$

Usually ships in 2-4 days

0

22

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

23

Echo 20018-31260

INSULATOR
(Superseded to V353000430)

$1.99

$

In Stock, Qty 8

0

24

Echo 20018-31270

CLIP
(Superseded to V490000680)

$0.99

$

In Stock, Qty 8

0

25

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

26

Echo 20018-31410

CLAMP, MAIN PIPE
(Superseded to 20018-31411)

$18.99

$

In Stock, only 2 left!

0

27

Echo 20018-31420

CUSHION - FRONT
(Superseded to V420002640)

$3.49

$

Usually ships in 2-4 days

0

28

Echo 20018-31430

CUSHION - REAR
(Superseded to V420002650)

$4.49

$

In Stock, only 2 left!

0

29

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

31

Echo 70135-31470

CAP
(Superseded to A575000460)

$7.99

$

In Stock, only 1 left!

0

32

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

33

Echo 68142-91320

LABEL - MODEL AHS231

$3.49

$

Usually ships in 2-4 days

0
