AH 720 R (41AJAH-C954) - Cub Cadet Trimmer Plus Hedge Trimmer Attachment att General Assembly Parts Diagram

Trimmer Plus Hedge Trimmer Attachment

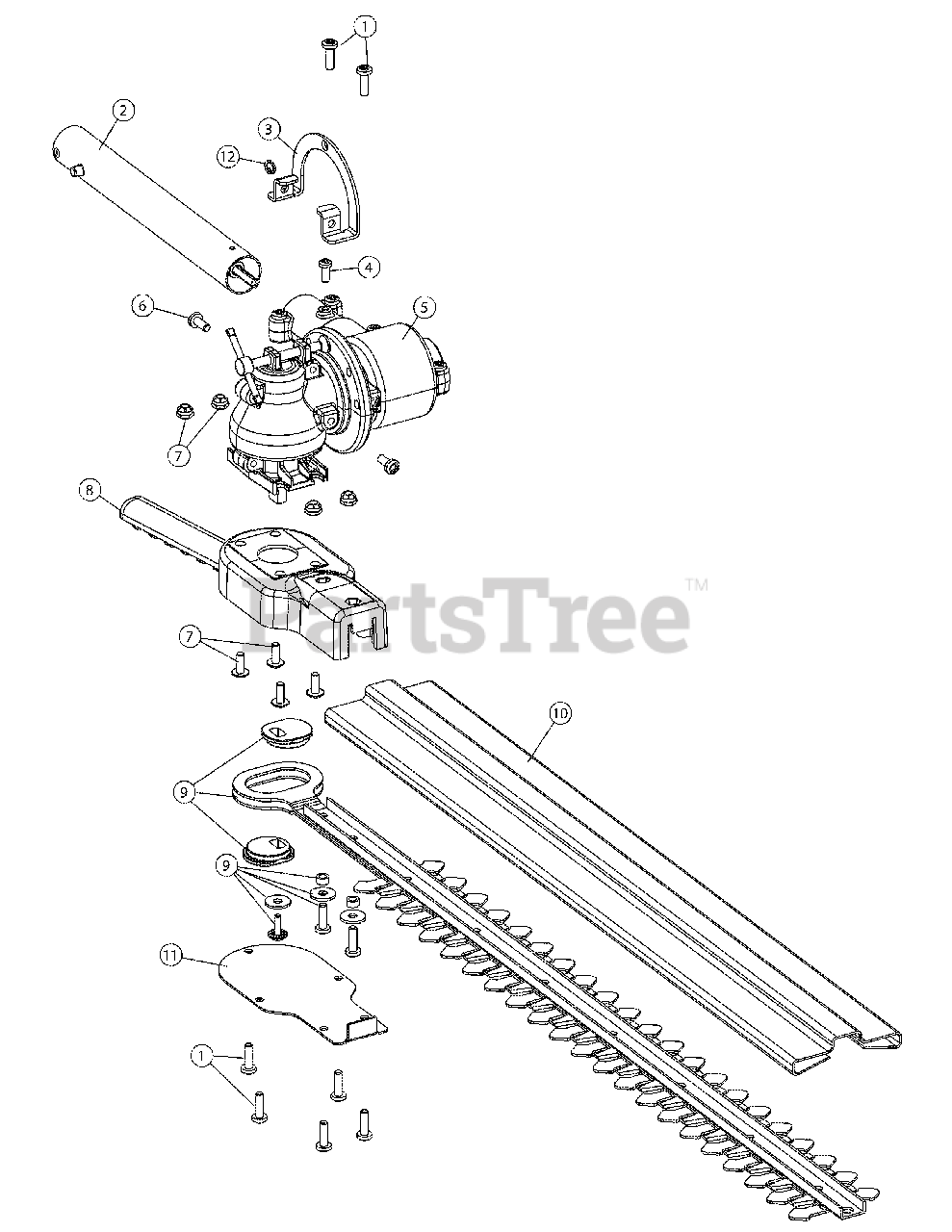

General Assembly Parts Diagram

  • Title

$

$

Not available

2

Cub Cadet 753-05616

Drive Shaft Housing Assembly
(Superseded to 753-08007)

$12.99

$

In Stock, only 1 left!

0

3

Cub Cadet 753-05617

Indexing Ring
(Superseded to 797-00053)

$

$

Not available

4

Cub Cadet 753-05698

Anti Rotation Screw
(Superseded to 7039)

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet 753-05618

Gearbox Assembly

Note: (includes 4)

$

$

Not available

6

Cub Cadet 753-05619

Screw
(Superseded to 710-04394)

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-05620

Blade Housing Hardware

$

$

Not available

8

Cub Cadet 753-05621

Upper Blade Housing

Note: (includes 7)

$24.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 753-05623

Blade Assembly

$

$

Not available

10

Cub Cadet 753-05624

Guard
(Superseded to 731-05906-1)

$

$

Not available

11

Cub Cadet 753-05625

Lower Blade Assembly
(Superseded to 797-00055)

$

$

Not available

12

Cub Cadet 936-0329

Lock Washer

$4.49

$

In Stock, Qty 11

0
