AH 2510 - Shindaiwa Articulating Hedge Trimmer Throttle Control Parts Diagram

Articulating Hedge Trimmer

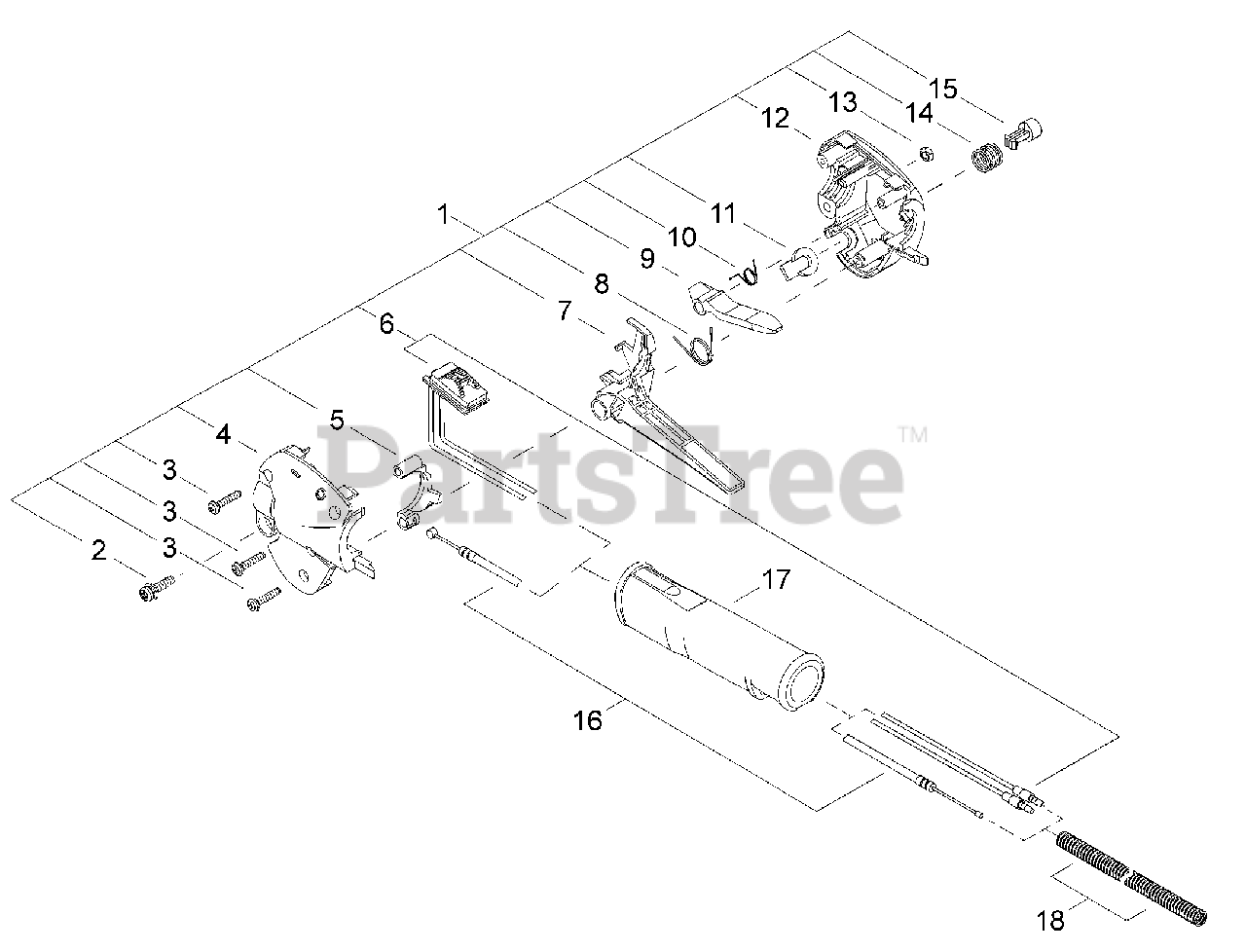

Throttle Control Parts Diagram

  • Title

1

Echo 63904-62020

THROTTLE LEVER ASSY
(Superseded to C044001100)

$52.99

$

Usually ships in 2-4 days

0

2

Echo 11206-05201

SCREW - 5X20
(Superseded to 9157505020)

$0.99

$

Usually ships in 2-4 days

0

3

Echo 63880-65360

SCREW - 4X20 -- TAPPING
(Superseded to V252000380)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 63002-62330

HANDLE, CONTROL - LEFT
(Superseded to C401000150)

$8.99

$

Usually ships in 2-4 days

0

5

Echo 63002-62350

LOCKOUT, THROTTLE
(Superseded to C461000020)

$3.49

$

In Stock, Qty 11

0

6

Echo 63901-62380

SWITCH, IGNITION
(Superseded to A440001570)

$20.99

$

Usually ships in 2-4 days

0

7

Echo 63002-62340

TRIGGER, THROTTLE
(Superseded to C450000480)

$7.99

$

In Stock, only 2 left!

0

8

Echo 63880-65350

SPRING
(Superseded to V452000700)

$1.99

$

In Stock, Qty 9

0

9

Echo 63901-62352

LEVER, TRIGGER LOCKOUT
(Superseded to C460000190)

$4.49

$

In Stock, Qty 9

0

10

Echo 63901-62370

SPRING
(Superseded to V452000500)

$1.99

$

In Stock, Qty 5

0

11

Echo 63880-65411

PLUG
(Superseded to V162000350)

$1.99

$

In Stock, only 1 left!

0

12

Echo 72549-62320

HANDLE, CONTROL - RIGHT
(Superseded to C401000200)

$9.49

$

Usually ships in 2-4 days

0

13

Echo 01501-05030

NUT - 5
(Superseded to 9201705000)

$0.99

$

In Stock, Qty 13

0

14

Echo 70871-65180

SPRING
(Superseded to V450001010)

$0.99

$

In Stock, Qty 6

0

15

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$1.99

$

Usually ships in 2-4 days

0

16

Echo 63901-62173

CABLE, THROTTLE
(Superseded to V430003250)

$6.99

$

In Stock, only 1 left!

0

17

Echo 63901-62142

GRIP - REAR
(Superseded to C412000260)

$11.99

$

In Stock, only 1 left!

0

18

Echo 63901-62440

TUBE
(Superseded to V475006830)

$0.99

$

In Stock, only 3 left!

0
