AH 230 - Shindaiwa Articulating Hedge Trimmer Cylinder, Muffler Parts Diagram

Articulating Hedge Trimmer

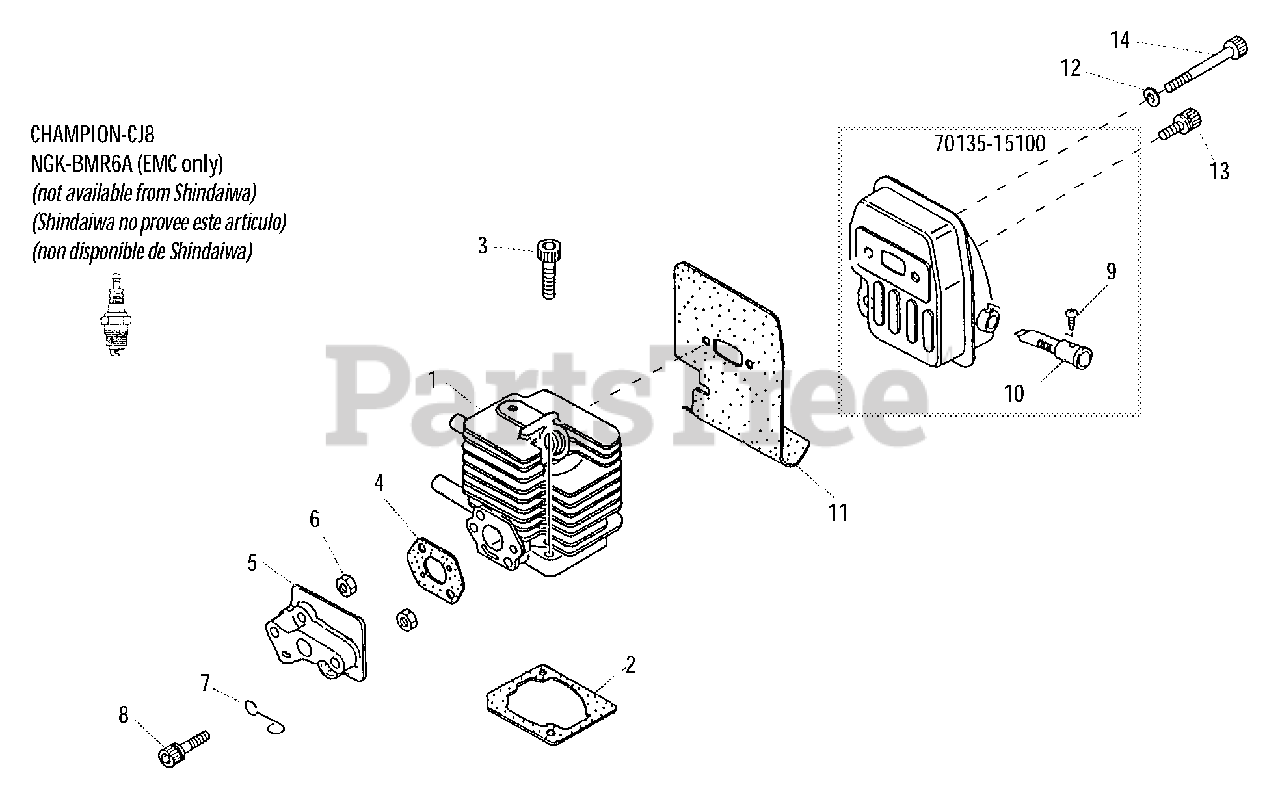

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 20016-12110

CYLINDER
(Superseded to 20016-12112)

$54.99

$

In Stock, Qty 8

0

2

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 11

0

3

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 15

0

4

Echo 20016-12220

GASKET
(Superseded to 20016-12222)

$0.99

$

In Stock, Qty 9

0

5

Echo 20016-12211

INSULATOR
(Superseded to 20016-12212)

Note: PR191

$11.99

$

In Stock, only 1 left!

0

6

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 20016-12310

HOLDER, VENT
(Superseded to A358000040)

$0.99

$

In Stock, Qty 6

0

8

Echo 11022-05305

SCREW - 5X30
(Superseded to V203000480)

Note: PR191

$3.99

$

In Stock, Qty 5

0

70135-15100

Echo 70135-15100

MUFFLER ASSY
(Superseded to A030000120)

$31.99

$

Usually ships in 2-4 days

0

9

Echo 01270-03062

SCREW - 3X6
(Superseded to 9137403006)

$0.99

$

In Stock, Qty 10

0

10

Echo 70103-15150

SCREEN, SPARK ARRESTOR
(Superseded to A310000260)

$7.99

$

In Stock, only 1 left!

0

11

Echo 20016-15121

SHIELD, EXHAUST
(Superseded to 20016-15122)

$7.99

$

In Stock, only 1 left!

0

12

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

14

Echo 01020-05500

SCREW - 5X50
(Superseded to 90010505050)

$1.49

$

In Stock, only 3 left!

0
