AG F550 A - Agway Front-Tine Tiller (2004) Handle Assembly Parts Diagram

Front-Tine Tiller

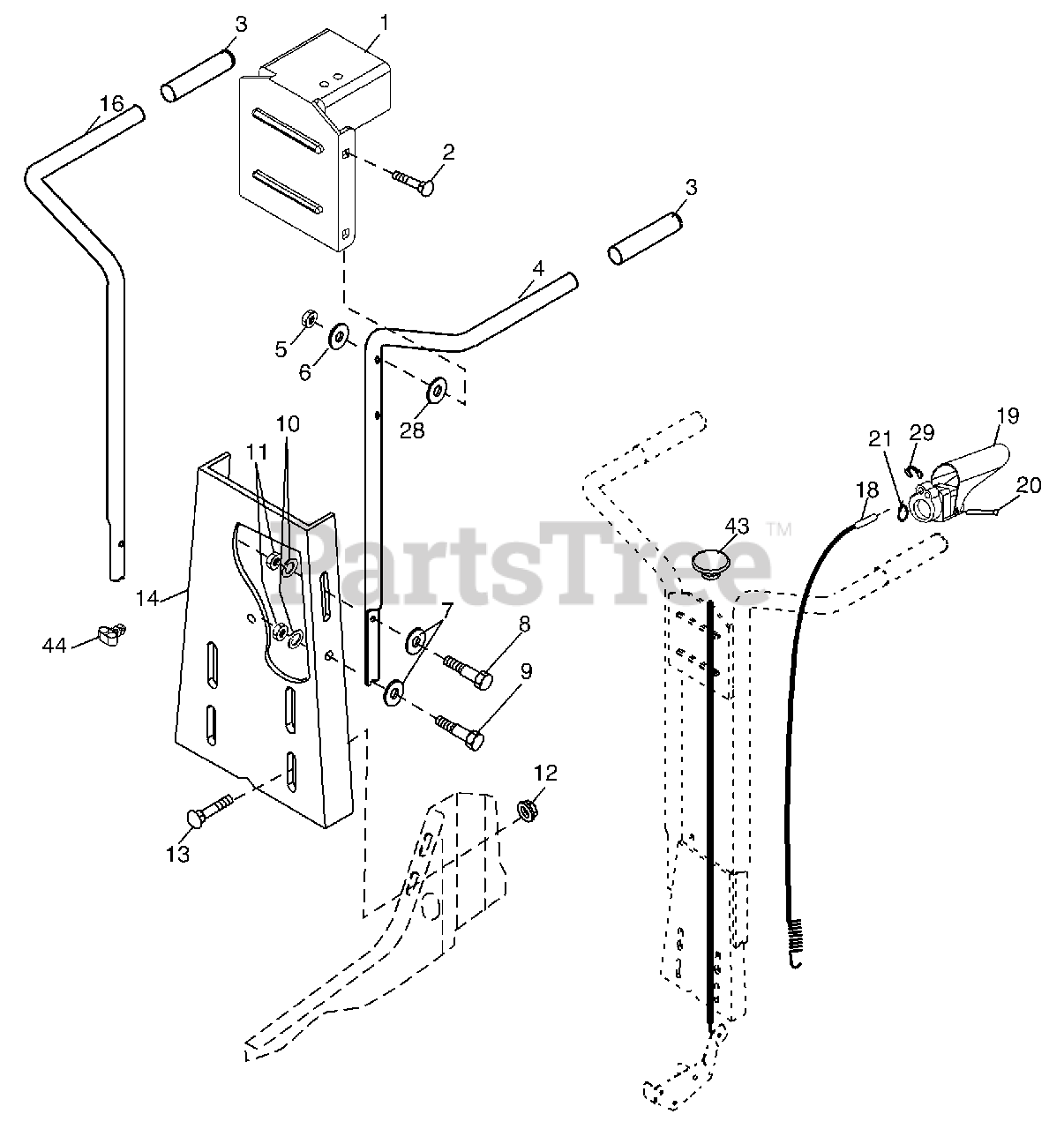

Handle Assembly Parts Diagram

  • Title

1

Electrolux/AYP 187820X505

Bracket Handle

$9.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140512

Bolt, Carriage 5/16-18 unc x 1-1/2
(Superseded to 582736101)

$

$

Not available

3

Electrolux/AYP 9266R

Grip, Handle

$

$

Not available

4

Electrolux/AYP 166376

Handle, L.H.
(Superseded to 532446013)

$46.99

$

Usually ships in 3-10 days

0

5

Murray 73680500

Locknut, Crown 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 19111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 74760516

Bolt, Hex Hd. 5/16-18 x 1

$

$

Not available

9

Electrolux/AYP 74760512

Bolt, Hex Hd 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 98000129

Nut, Flanged 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

13

Electrolux/AYP 180847

Bolt, Carriage 5/16-18 x 3/4 Gr. 5
(Superseded to 532180847)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 181452X505

Panel, Handle
(Superseded to 583702301)

$11.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 166377

Handle, R.H.

$

$

Not available

18

Electrolux/AYP 166868

Cable, Control, Tine
(Superseded to 583021801)

$24.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 151229

Lever, Control, Tine
(Superseded to 584447601)

$37.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 154805

Pin, Pivot
(Superseded to 584448301)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 12000027

Ring, Klip
(Superseded to 812000027)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

29

Electrolux/AYP 12000059

Retaining, Ring
(Superseded to 582730101)

$6.49

$

In Stock, only 3 left!

0

43

Electrolux/AYP 188177

Cable Assembly, Reverse
(Superseded to 583170501)

$26.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 181580

Clip
(Superseded to 532181580)

$6.49

$

Usually ships in 3-10 days

0
