AG 431 - RedMax Auger (1995-10) 010 - ATTACHMENT Parts Diagram

Auger

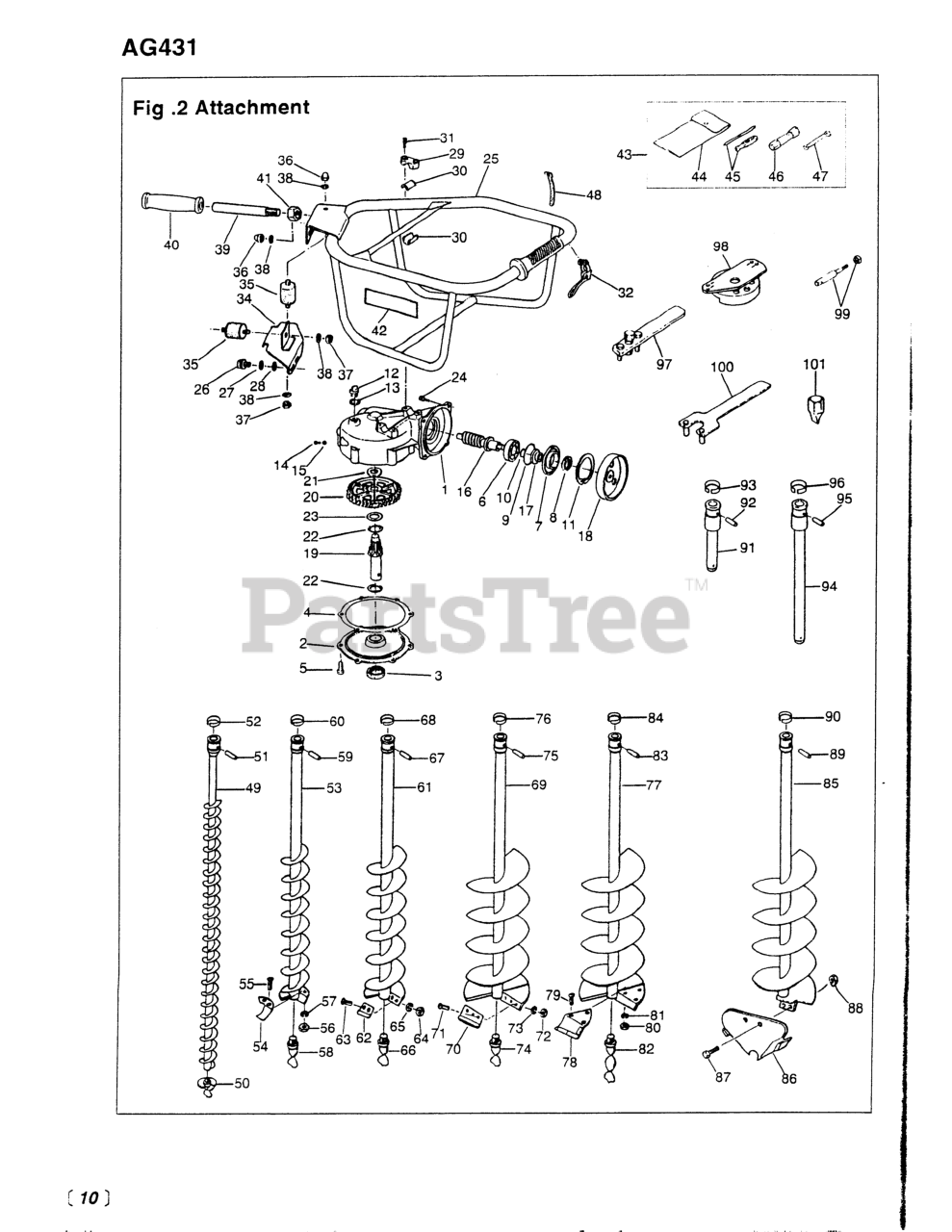

010 - ATTACHMENT Parts Diagram

  • Title
1

RedMax 320911103

GEARCASE COMP (RPLS -11102)

$65.46

$

Usually ships in 3-10 days

0

2

RedMax 320911203

COVER COMP (RPLS -11202)

$36.83

$

Usually ships in 3-10 days

0

3

RedMax 180021281

SEAL, OIL
(Superseded to 513411101)

$6.49

$

Usually ships in 3-10 days

0

4

RedMax 320211260

GASKET
(Superseded to 520904301)

$

$

Not available

5

RedMax 026030620

0263-30620

$

$

Not available

6

$14.07

$

Usually ships in 3-10 days

0

7

RedMax 320211311

RETAINER

$13.47

$

Usually ships in 3-10 days

0

$3.76

$

Usually ships in 3-10 days

0

9

RedMax 320011330

O-RING
(Superseded to 520902801)

$1.49

$

Usually ships in 3-10 days

0

10

$0.39

$

Usually ships in 3-10 days

0

11

RedMax 0406506220

RING, SNAP, M62 x 2.0

$2.74

$

Usually ships in 3-10 days

0

$2.72

$

Usually ships in 3-10 days

0

13

$0.30

$

Usually ships in 3-10 days

0

14

RedMax 022400610

BOLT, M6 x 10

$0.25

$

Usually ships in 3-10 days

0

15

$0.41

$

Usually ships in 3-10 days

0

$83.57

$

Usually ships in 3-10 days

0

17

$10.54

$

Usually ships in 3-10 days

0

$16.66

$

Usually ships in 3-10 days

0

19

RedMax 320621210

SHAFT
(Superseded to 520906501)

$

$

Not available

20

$200.01

$

Usually ships in 3-10 days

0

21

$1.57

$

Usually ships in 3-10 days

0

22

$0.65

$

Usually ships in 3-10 days

0

$0.97

$

Usually ships in 3-10 days

0

24

RedMax 022550620

BOLT, M6 X 20

$0.39

$

Usually ships in 3-10 days

0

25

RedMax 320431110

HANDLE
(Superseded to 521845801)

$

$

Not available

$0.81

$

Usually ships in 3-10 days

0

27

$0.08

$

Usually ships in 3-10 days

0

28

RedMax 0164330623

WASHER, M6 X 2.3

$

$

Not available

29

$7.36

$

Usually ships in 3-10 days

0

30

RedMax 320631130

SPACER
(Superseded to 520906701)

$

$

Not available

31

RedMax 022550630

BOLT, M6 x 30

$0.39

$

Usually ships in 3-10 days

0

32

RedMax 320614410

LEVER, THROTTLE

$21.07

$

Usually ships in 3-10 days

0

NI

RedMax 320631202

BRACKET ASSY (RPLS-31201)

$38.55

$

Usually ships in 3-10 days

0

34

$

$

Not available

35

$10.61

$

Usually ships in 3-10 days

0

$1.23

$

Usually ships in 3-10 days

0

37

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

38

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

39

RedMax 320431300

HANDLE COMPLETE

$

$

Not available

40

RedMax 354114221

GRIP (REPLACES -14220)

$9.57

$

Usually ships in 3-10 days

0

41

RedMax 028111411

NUT, M14 x 11

$0.93

$

Usually ships in 3-10 days

0

42

$1.57

$

Usually ships in 3-10 days

0

43

RedMax 320691001

TOOL SET

$11.77

$

Usually ships in 3-10 days

0

$3.28

$

Usually ships in 3-10 days

0

45

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

46

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

47

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

48

RedMax 354093120

BAND
(Superseded to 514364001)

$6.49

$

Usually ships in 3-10 days

0

49

RedMax 320251102

S40 DRILL ASS

$

$

Not available

$106.33

$

Usually ships in 3-10 days

0

51

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 320652100

DRILL S60 ASS

$

$

Not available

$

$

Not available

55

RedMax 0122540620

SCREW, M6 X 20
(Superseded to 516069301)

$

$

Not available

56

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

57

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

58

RedMax 320652330

BIT
(Superseded to 574143701)

$

$

Not available

59

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

60

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

61

RedMax 320652200

S90 DRILL ASS

$

$

Not available

62

RedMax 320652220

TIP, S90

$

$

Not available

63

RedMax 0122540620

SCREW, M6 X 20
(Superseded to 516069301)

$

$

Not available

64

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

65

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

66

RedMax 320652330

BIT
(Superseded to 574143701)

$

$

Not available

67

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

68

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

69

RedMax 320652300

S150 DRILL ASS

$

$

Not available

70

RedMax 320652320

TIP, S150

$

$

Not available

71

RedMax 0122540620

SCREW, M6 X 20
(Superseded to 516069301)

$

$

Not available

72

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

73

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

74

RedMax 320652330

BIT
(Superseded to 574143701)

$

$

Not available

75

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

76

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

77

RedMax 320652400

S200 DRILL ASS

$

$

Not available

78

RedMax 320252420

TIP, S200

$

$

Not available

79

RedMax 0122540620

SCREW, M6 X 20
(Superseded to 516069301)

$

$

Not available

80

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

81

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

82

RedMax 320652330

BIT
(Superseded to 574143701)

$

$

Not available

83

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

84

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

85

RedMax 320661100

I150 DRILL ASS

$

$

Not available

86

$

$

Not available

87

RedMax 022550620

BOLT, M6 X 20

$0.39

$

Usually ships in 3-10 days

0

88

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

89

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

90

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

91

RedMax 320453100

JOINT L100 ASS

$

$

Not available

92

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

93

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

94

RedMax 320453200

JOINT L300 ASS

$

$

Not available

95

RedMax 320051130

PIN
(Superseded to 520903701)

$3.99

$

Usually ships in 3-10 days

0

96

RedMax 320051140

CLIP
(Superseded to 520903801)

$3.99

$

Usually ships in 3-10 days

0

97

RedMax 107596100

2890-96100

$

$

Not available

98

RedMax 140096210

SET BLOCK (TOOL)

$78.41

$

Usually ships in 3-10 days

0

99

RedMax 140096300

ROD ASSEMBLY (TOOL)

$8.08

$

Usually ships in 3-10 days

0

100

$179.16

$

Usually ships in 3-10 days

0

$84.30

$

Usually ships in 3-10 days

0
