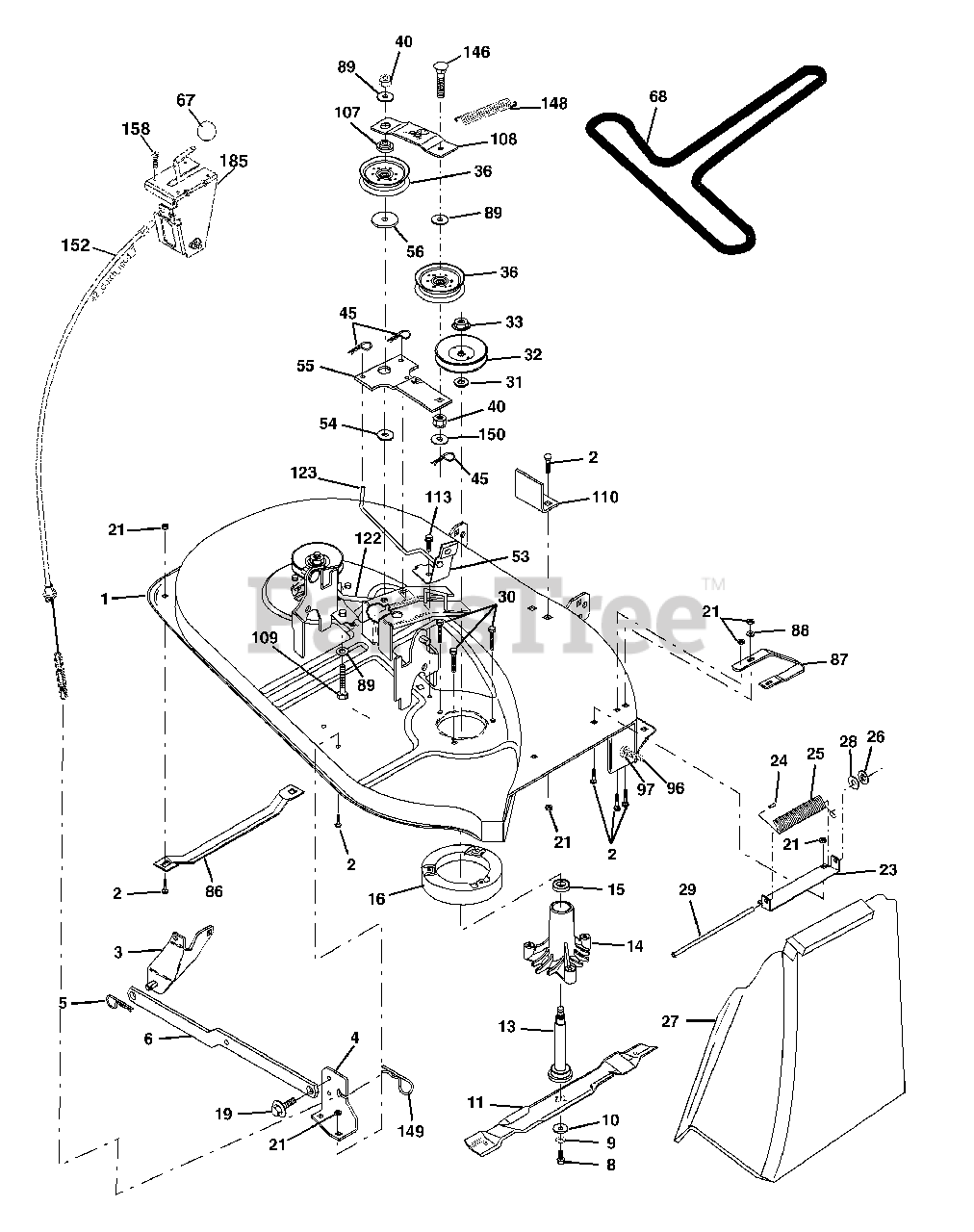

AG 15538 B - Agway Lawn Tractor (2004) Mower Deck Parts Diagram

Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 170280

Mower Housing Assembly
(Superseded to 532176028)

$

$

Not available

2

Electrolux/AYP 72140506

Bolt Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

Bracket Asm Fr. Sway Bar
(Superseded to 532138017)

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 169970

Bracket Deck Sway Bar 38"/42"

$3.99

$

Usually ships in 3-10 days

0

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 178024

Bar Sway Deck
(Superseded to 532178024)

$8.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 850857

Bolt 3/8-24 x 1.25 Gr. 8
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 10030600

Washer, Lock 3/8
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

Washer, Hardened
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 134148

Blade, 38" Mulching Std
(Superseded to 532134148)

Note: (For mulching mowers only)

$26.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 139774

Blade, 38" Mulching Premium
(Superseded to 532134148)

Note: (For better wear when mulching)

$26.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 138497

Blade, 38" Hi-Lift
(Superseded to 532138497)

Note: (For bagging and discharging)

$26.99

$

In Stock, Qty 7

0

13

Electrolux/AYP 137645

Shaft Assembly, Mandrel, Vented
(Superseded to 532137645)

Note: (Includes Key Number 6)

$34.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 128774

Housing, Mandrel, Vented
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 174493

Stripper, Vented Mower Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 132827

Bolt, Shoulder
(Superseded to 532132827)

$

$

Not available

21

Murray 73680500

Nut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 137607

Bracket, Mower Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

Spring, Torsion, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 106736X428

Shield, Deflector
(Superseded to 532106736)

$

$

Not available

28

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

29

Electrolux/AYP 106735X

Rod, Hinge
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 173984

Screw Thdrol. Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 187690

Washer, Spacer
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Murray 153532

Pulley, Mandrel
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 178342

Nut, Toplock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

36

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Electrolux/AYP 73680600

Nut, Crownlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 4497H

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

53

Electrolux/AYP 130840

Brake Assembly
(Superseded to 532130840)

$12.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 178515

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 133840

Idler Arm Assembly
(Superseded to 532133840)

$

$

Not available

56

Electrolux/AYP 165723

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

67

Electrolux/AYP 106932X

Knob
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 144200

V-Belt, 42" Mower
(Superseded to 532144200)

$45.99

$

In Stock, Qty 5

0

86

Electrolux/AYP 7631J

Runner, LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 128772

Runner, RH
(Superseded to 532128772)

$

$

Not available

88

Electrolux/AYP 19111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 19131311

Washer 13/32 x 13/16 x 11 Ga.
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

96

Electrolux/AYP 74930620

Bolt 3/8-16 x 1-1/4 Mulcher
(Superseded to 874930620)

$3.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 73930600

Nut Centerlock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

107

Electrolux/AYP 133502

Spacer Retainer
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

108

Electrolux/AYP 133503

Stiffener, Idler Arm
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 74760640

Bolt, Hex Hd 3/8-16 x 2-1/2
(Superseded to 874760640)

$

$

Not available

110

Electrolux/AYP 142587

Upstop Deck Front 38"

$2.49

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 17060512

Screw 5/16-1/ x 3/4
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

122

Electrolux/AYP 131289

Rod, Brake LH
(Superseded to 532131289)

$

$

Not available

123

Electrolux/AYP 169971

Rod, Brake RH
(Superseded to 532169971)

$8.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 165891

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

148

Electrolux/AYP 169022

Spring Return Idler
(Superseded to 532169022)

$5.99

$

In Stock, Qty 6

0

149

Electrolux/AYP 165898

Retainer Spring Yellow
(Superseded to 532165898)

$7.49

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

In Stock, only 1 left!

0

158

Electrolux/AYP 17720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 188234

Head Asm Cable Clutch
(Superseded to 532188234)

$53.99

$

In Stock, only 1 left!

0

Electrolux/AYP 130794

Mandrel Assembly
(Superseded to 532130794)

Note: (Includes Housing, Shaft and Shaft Hardware Only-Pulley not Included)

$56.99

$

In Stock, only 4 left!

0

Electrolux/AYP 170317

Replacement Mower, Complete
(Superseded to 532171665)

$

$
