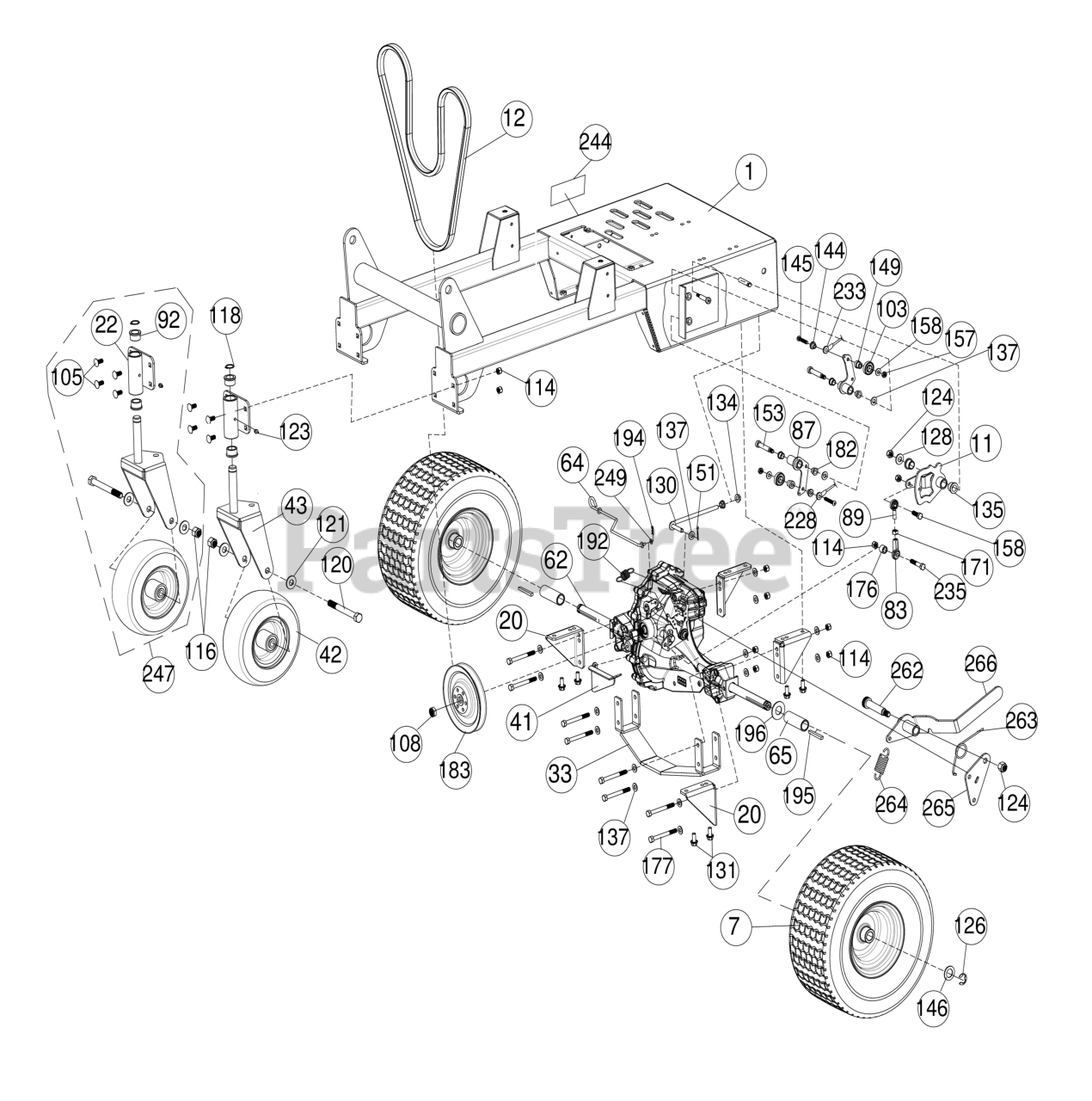

AE 1300 H - Billy Goat 30" Aerator TRANS Parts Diagram

30" Aerator

TRANS Parts Diagram

  • Title

1

Billy Goat 362100

SEE: 362602
(Superseded to 362602)

$1138.99

$

Usually ships in 2-11 days

0

7

Billy Goat 362352

WHEEL 15" X 6.00 - 6 TURF SAVER

$180.99

$

Usually ships in 2-11 days

0

11

Billy Goat 362106

CAM SPEED CONTROL WA AE900

$52.99

$

Usually ships in 2-11 days

0

20

Billy Goat 362329

BRACKET TRANSAXLE MOUNT

$21.99

$

Usually ships in 2-11 days

0

22

Billy Goat 362107

BRACKET CASTER WA AE900

$51.99

$

Usually ships in 2-11 days

0

33

Billy Goat 362118

SKID PLATE WA

$84.99

$

Usually ships in 2-11 days

0

41

Billy Goat 362306

BRACKET BELT GUIDE LOWER AE900

$25.99

$

Usually ships in 2-11 days

0

42

Billy Goat 371206

SEE: 373300
(Superseded to 373300)

$121.99

$

Usually ships in 2-11 days

0

43

Billy Goat 371102

SEE: 371102-S
(Superseded to 371102-S)

$117.99

$

Usually ships in 2-11 days

0

62

Billy Goat 362332

TRANSAXLE AE900

$1249.99

$

Usually ships in 2-11 days

0

64

Billy Goat 362356

ROD BYPASS TRANSAXLE

$88.99

$

Usually ships in 2-11 days

0

65

Billy Goat 362418

SPACER REAL WHEEL AE900H

$12.99

$

Usually ships in 2-11 days

0

83

Billy Goat 351278

SPHERICAL ROD END MSF-5

$12.99

$

Usually ships in 2-11 days

0

87

Billy Goat 501114

BELLCRANK SPEED CONTROL BC26

$25.99

$

Usually ships in 2-11 days

0

89

Billy Goat 351277

SPHERICAL ROD END MSM-5

$

$

Currently unavailable

92

Billy Goat 520184

BUSHING FLANGE 1" OD 3/4" ID

$8.99

$

In Stock, only 1 left!

0

103

Billy Goat 351257

BEARING 1/2" ID X 1.125 OD

$4.99

$

In Stock, only 2 left!

0

105

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 9

0

108

Billy Goat 610305

NUT 1/2"-20 JAM W/LOCK

$6.49

$

Usually ships in 2-11 days

0

114

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, Qty 5

0

116

Billy Goat 8160005

NUT LOCK 1/2"-13 HEX

$0.99

$

In Stock, only 1 left!

0

118

Billy Goat 520176

RING RETAINING EXTERNAL 3/4"

$

$

Not available

120

Billy Goat 8041108

SCREWCAP 1/2"-13 X 4 3/4 HCS ZP GR. 5

$4.99

$

Usually ships in 2-11 days

0

121

Billy Goat 8172011

WASHER 1/2" SAE Z/P

$0.99

$

In Stock, Qty 6

0

123

Billy Goat 610363

ZERK FITTING GREASE

$0.99

$

Usually ships in 2-11 days

0

124

Billy Goat 8160003

NUT LOCK 3/8"-16 HEX

$0.99

$

In Stock, Qty 5

0

126

Billy Goat 850230

RING RETAINING "E" 3/4"

$0.99

$

Usually ships in 2-11 days

0

128

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, only 2 left!

0

130

Billy Goat 362341

ANTI ROTATION ROD

$33.99

$

Usually ships in 2-11 days

0

131

Billy Goat 351264

SER HEX WASHER FLNG SCREW 5/16"-18 X 3/4"

$0.99

$

In Stock, Qty 6

0

134

Billy Goat 350346

NUT FLANGE 5/16"-18 ZP

$0.99

$

Usually ships in 2-11 days

0

135

Billy Goat 362254

BUSHING .500" ID

$

$

Not available

137

Billy Goat 8172008

WASHER 5/16" SAE Z/P

$0.99

$

In Stock, only 1 left!

0

144

Billy Goat 351348

SPACER, SPEED CONTROL EYELET PM

$2.49

$

In Stock, only 2 left!

0

145

Billy Goat 8041008

SCREWCAP 1/4"-20X1 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

146

Billy Goat 850238

WASHER .765" ID X 1.25 OD X .06"

$1.49

$

In Stock, only 2 left!

0

149

Billy Goat 351347

SPACER. SPEED CONTROL STEPPED PM

$3.99

$

Usually ships in 2-11 days

0

151

Billy Goat 8197031

PIN COTTER 1/8" X 1" Z/P

$0.99

$

Usually ships in 2-11 days

0

153

Billy Goat 351258

BOLT SHOULDER 3/8" X 1 3/4"

$4.49

$

Usually ships in 2-11 days

0

157

Billy Goat 8161040

NUT LOCK, 1/4-20 LT WT TH ZP

$0.99

$

Usually ships in 2-11 days

0

158

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 7

0

171

Billy Goat 8142002

NUT 5/16"-18 FIN HEX Z/P

$0.99

$

Usually ships in 2-11 days

0

176

Billy Goat 351419

SPACER ENGINE SIDE

$

$

Currently unavailable

177

Billy Goat 8041036

SCREWCAP 5/16"-18 X 3" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

182

Billy Goat 840078

BUSHING 3/8 ID X 1/2 OD X 3/8

$4.49

$

Usually ships in 2-11 days

0

183

Billy Goat 362398

PULLEY DIA. 6.00 CUPPED 26 TOOTH SPLINE

$83.99

$

Usually ships in 2-11 days

0

192

Billy Goat 351324

SPRING, TRANSAXLE RTN

$6.49

$

Usually ships in 2-11 days

0

194

Billy Goat 440193

PIN CLIP HITCH 0.051 X 3/4"

$0.99

$

In Stock, Qty 5

0

195

Billy Goat 9201092

KEY 3/16" SQ X 3.00

$1.99

$

Usually ships in 2-11 days

0

196

Billy Goat 8172015

WASHER 3/4" SAE 13/16"X1.5"X1/8"ZP

$0.99

$

In Stock, Qty 5

0

235

Billy Goat 8041030

SCREWCAP 5/16"-18X1 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

244

Billy Goat 501504

LABEL DRIVE RELEASE

$6.49

$

Usually ships in 2-11 days

0

247

Billy Goat 362608

CASTER ASSY AE1300H SERVICE

$402.99

$

Usually ships in 2-11 days

0

249

Billy Goat 8172005

WASHER #10SAE 7/32"X1/2"X1/16"

$0.99

$

In Stock, only 2 left!

0

262

Billy Goat 520031

BOLT SHOULDER 1/2" X 2"

$6.99

$

In Stock, only 1 left!

0

263

Billy Goat 510142

SPRING TRANS IDLER

$9.99

$

Usually ships in 2-11 days

0

264

Billy Goat 381157

EXTENSION SPRING
(Superseded to 351309)

$8.99

$

Usually ships in 2-11 days

0

265

Billy Goat 362449

PARKING BRAKE BRACKET

$

$

Currently unavailable

266

Billy Goat 362146

PARKING BRAKE LEVER

$

$

Currently unavailable
