AE 1300 H - Billy Goat 30" Aerator LIFT Parts Diagram

30" Aerator

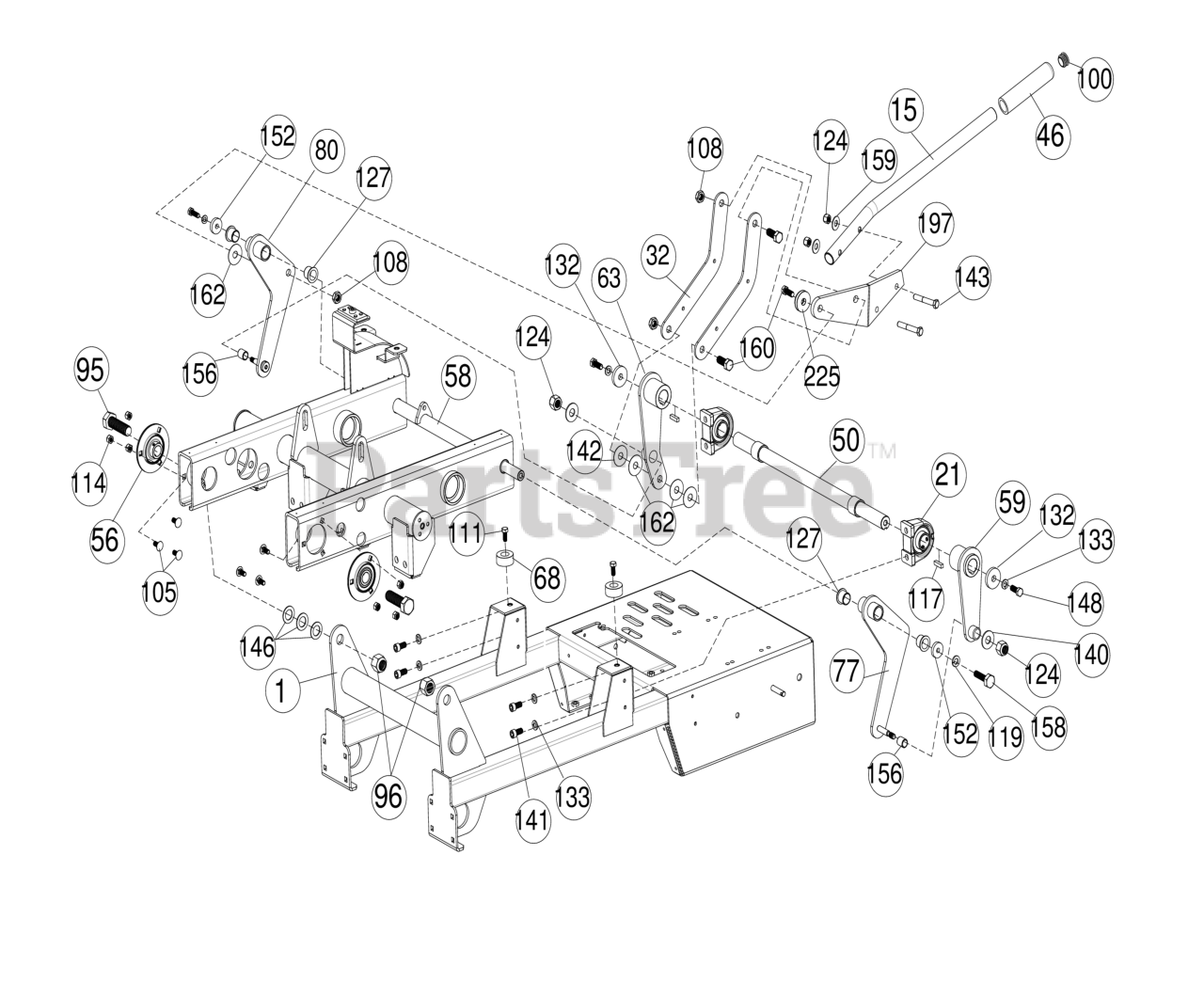

LIFT Parts Diagram

  • Title
1

Billy Goat 362602

ENGINE BASE WA W/LABELS AE1300H

$1138.99

$

Usually ships in 2-11 days

0

15

Billy Goat 362410

HANDLE TINE WA

$22.99

$

Usually ships in 2-11 days

0

21

Billy Goat 362223

BEARING LIFT

$41.99

$

Usually ships in 2-11 days

0

32

Billy Goat 362259

BRACKET HANDLE SUPPORT

$29.99

$

Usually ships in 2-11 days

0

46

Billy Goat 500267

GRIP HANDLE

$6.99

$

In Stock, only 2 left!

0

50

Billy Goat 362108

TINE FRAME LIFT SHAFT WA

$120.99

$

Usually ships in 2-11 days

0

56

Billy Goat 362245

BEARING AND FLANGETTE ASSY .75"

$25.99

$

Usually ships in 2-11 days

0

58

Billy Goat 362101

FRAME TINING AE900

$1130.99

$

Usually ships in 2-11 days

0

59

Billy Goat 362127

LIFT ARM LFT WA AE900

$171.99

$

Usually ships in 2-11 days

0

63

Billy Goat 362125

ARM LIFT RT WA AE900

$107.99

$

Usually ships in 2-11 days

0

68

Billy Goat 360298

BUMPER RECESS

$5.49

$

Usually ships in 2-11 days

0

77

Billy Goat 362128

ARM TINE LIFT CONNECTING WA LH

$99.99

$

Usually ships in 2-11 days

0

80

Billy Goat 362126

ARM TINE LIFT CONNECTING WA RH

$99.99

$

Usually ships in 2-11 days

0

95

Billy Goat 8041166

SCREWCAP 3/4-10 X 2 1/2" LG Z/P GR 5

$3.99

$

Usually ships in 2-11 days

0

96

Billy Goat 8161006

NUT LOCK 3/4" - 10 ZP

$0.99

$

Usually ships in 2-11 days

0

100

Billy Goat 890132

PLUG TUBE INSERT 1" OD

$

$

Not available

105

Billy Goat 8024039

BOLT CARRIAGE 5/16"-18 X 3/4" ZP

$0.99

$

In Stock, Qty 10

0

108

Billy Goat 610305

NUT 1/2"-20 JAM W/LOCK

$6.49

$

Usually ships in 2-11 days

0

111

Billy Goat 8041026

SCREWCAP 5/16"-18X3/4" HCS ZP

$0.99

$

In Stock, only 1 left!

0

114

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, only 4 left!

0

117

Billy Goat 9201113

KEY SQUARE 1/4" X 1"

$2.99

$

Usually ships in 2-11 days

0

119

Billy Goat 8177011

WASHER LOCK 5/16 ST MED

$0.99

$

In Stock, Qty 10

0

124

Billy Goat 8160003

NUT LOCK 3/8"-16 HEX

$0.99

$

In Stock, Qty 6

0

127

Billy Goat 360183

BUSHING PIVOT FRAME AE

$6.99

$

Usually ships in 2-11 days

0

128

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, Qty 10

0

132

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

133

Billy Goat 8177012

WASHER LOCK 3/8" S/T MED

$0.99

$

In Stock, Qty 9

0

140

Billy Goat 8172009

WASHER 3/8"SAE 13/32"X13/16"X1/16"

$1.49

$

In Stock, Qty 5

0

141

Billy Goat 8049070

SHCS 5/16" -18 X 1.25 BLK OX

$3.49

$

Usually ships in 2-11 days

0

142

Billy Goat 8171006

WASHER 1/2"FC9/16"X1 3/8"X7/64"

$0.99

$

In Stock, Qty 5

0

143

Billy Goat 8041055

SCREWCAP 3/8"-16 X 2 1/4" HCS ZP GR 5

$0.99

$

Usually ships in 2-11 days

0

146

Billy Goat 850238

WASHER .765" ID X 1.25 OD X .06"

$1.49

$

In Stock, only 2 left!

0

148

Billy Goat 900154

SCREWCAP 3/8"-24 X 1" HCS GR 8

$2.49

$

Usually ships in 2-11 days

0

152

Billy Goat 441150

WASHER 1.125 OD X 0.344 ID X .25 THK ZP

$3.99

$

Usually ships in 2-11 days

0

156

Billy Goat 362257

BUSHING TINE FRAME PIVOT

$

$

Not available

158

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 7

0

159

Billy Goat 8171004

WASHER 3/8"FC7/16"X1"X5/64"

$0.99

$

In Stock, Qty 5

0

160

Billy Goat 520028

SCREWCAP 1/2-20 X 1 1/4 GR. 5 W/PATCH

$6.49

$

Usually ships in 2-11 days

0

162

Billy Goat 362286

WASHER NYLON

$4.49

$

Usually ships in 2-11 days

0

197

Billy Goat 362113

TINE ENGAGE HANDLE MOUNT WA

$63.99

$

Usually ships in 2-11 days

0

225

Billy Goat 362419

WASHER 33/64 I.D. X 1.50" OD X .25 THK

$9.99

$

Usually ships in 2-11 days

0
