AE 1300 H - Billy Goat 30" Aerator ENGINE Parts Diagram

30" Aerator

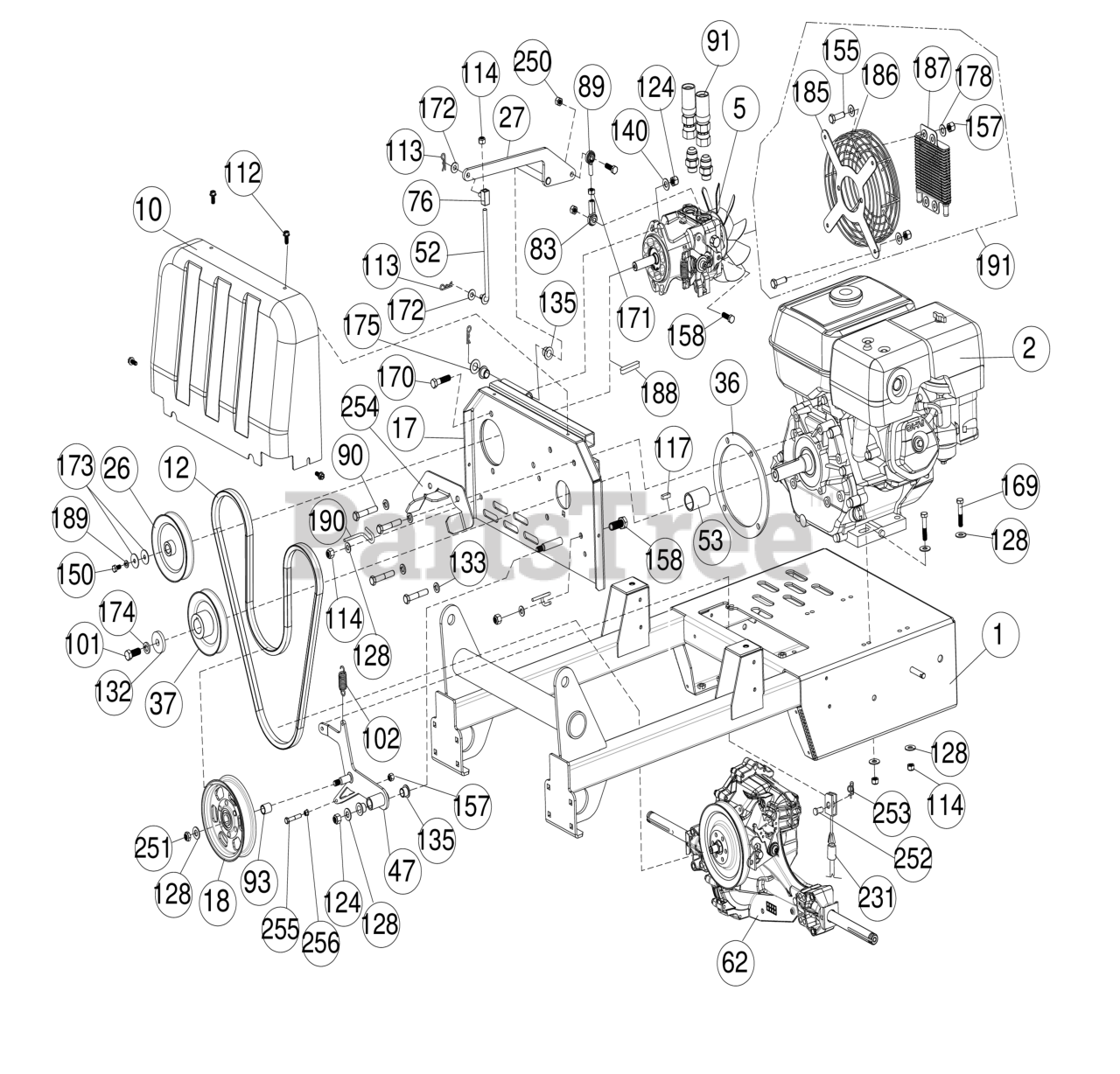

ENGINE Parts Diagram

  • Title

1

Billy Goat 362602

ENGINE BASE WA W/LABELS AE1300H

$1138.99

$

Usually ships in 2-11 days

0

2

Billy Goat 430366

ENGINE HONDA GX390 13 HP

$

$

Currently unavailable

5

Billy Goat 362225

PUMP PK 12CC VARIABLE DISPLACEMENT

$1116.99

$

In Stock, only 1 left!

0

10

Billy Goat 362327

GUARD BELT AE900

$168.99

$

Usually ships in 2-11 days

0

12

Billy Goat 362337

BELT HP GP AMD EFF. LENGTH 64.04"

$62.99

$

Usually ships in 2-11 days

0

17

Billy Goat 362111

PLATE PUMP MOUNT

$315.99

$

Usually ships in 2-11 days

0

18

Billy Goat 362275

PULLEY 5.00" OD FLAT IDLER

$78.99

$

Usually ships in 2-11 days

0

26

Billy Goat 362303

PULLEY 4.75 OD X .591 ID 5L

$72.99

$

Usually ships in 2-11 days

0

27

Billy Goat 362116

ARM ENGAGE PUMP WA

$42.99

$

Usually ships in 2-11 days

0

36

Billy Goat 812238

SPACER ENGINE WA DL18

$64.99

$

Usually ships in 2-11 days

0

37

Billy Goat 362391

PULLEY 4.50 O.D. X 1.00" I.D. - 5L

$79.99

$

Usually ships in 2-11 days

0

47

Billy Goat 362112

IDLER ARM WA AE900

$72.99

$

Usually ships in 2-11 days

0

52

Billy Goat 362372

ROD PUMP ENGAGE

$33.99

$

Usually ships in 2-11 days

0

53

Billy Goat 362406

SPACER ENGINE CRANKSHAFT

$12.99

$

Usually ships in 2-11 days

0

62

Billy Goat 362332

TRANSAXLE AE900

$1249.99

$

Usually ships in 2-11 days

0

76

Billy Goat 362280

END ROD SLIDING

$65.99

$

Usually ships in 2-11 days

0

83

Billy Goat 351278

SPHERICAL ROD END MSF-5

$12.99

$

Usually ships in 2-11 days

0

89

Billy Goat 351277

SPHERICAL ROD END MSM-5

$

$

Currently unavailable

90

Billy Goat 8041054

SCREWCAP 3/8"-16X2" HCS ZP

$0.99

$

In Stock, Qty 5

0

91

Billy Goat 362279

HOSE HYDRAULIC W#10 JIC

$150.99

$

Usually ships in 2-11 days

0

93

Billy Goat 362415

SPACER .75 OD X 11 GA

$15.99

$

Usually ships in 2-11 days

0

101

Billy Goat 510213

SCREWCAP 7/16-20 X 1" HCS GR. 8 W/PATCH

$8.99

$

Usually ships in 2-11 days

0

102

Billy Goat 800242

SPRING EXTENSION

$4.49

$

Usually ships in 2-11 days

0

112

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8" HWH TYPE F

$1.49

$

Usually ships in 2-11 days

0

113

Billy Goat 900471

PIN HAIR 1/4" Z/P

$1.49

$

In Stock, only 2 left!

0

114

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, only 4 left!

0

117

Billy Goat 9201113

KEY SQUARE 1/4" X 1"

$2.99

$

Usually ships in 2-11 days

0

124

Billy Goat 8160003

NUT LOCK 3/8"-16 HEX

$0.99

$

In Stock, Qty 6

0

128

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, Qty 10

0

132

Billy Goat 440153

WASHER 1.5 OD X .453 ID X .25 THK

$2.99

$

Usually ships in 2-11 days

0

133

Billy Goat 8177012

WASHER LOCK 3/8" S/T MED

$0.99

$

In Stock, Qty 9

0

135

Billy Goat 362254

BUSHING .500" ID

$

$

Not available

140

Billy Goat 8172009

WASHER 3/8"SAE 13/32"X13/16"X1/16"

$1.49

$

In Stock, Qty 5

0

150

Billy Goat 370128

SCREWCAP M6 X 14

$0.99

$

Usually ships in 2-11 days

0

155

Billy Goat 8041004

SCREWCAP 1/4"-20X3/4" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

157

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, Qty 8

0

158

Billy Goat 8041028

SCREWCAP 5/16"-18 X 1" HCS ZP

$0.99

$

In Stock, Qty 7

0

169

Billy Goat 8041031

SCREWCAP 5/16"-18X1 3/4" HCS ZP

$0.99

$

In Stock, only 3 left!

0

170

Billy Goat 8041052

SCREWCAP 3/8" - 16 X 1/2" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

171

Billy Goat 8142002

NUT 5/16"-18 FIN HEX Z/P

$0.99

$

Usually ships in 2-11 days

0

172

Billy Goat 8171002

WASHER 1/4" FLAT Z/P

$0.99

$

In Stock, Qty 10

0

173

Billy Goat 8172019

WASHER FLAT FENDER 1/4"

$0.99

$

Usually ships in 2-11 days

0

174

Billy Goat 8177013

WASHER LOCK 7/16" S/T MED

$0.99

$

In Stock, Qty 9

0

175

Billy Goat 900230

WASHER 1/2" FLAT KD WHEEL MTG

$0.99

$

In Stock, only 2 left!

0

178

Billy Goat 8172007

WASHER 1/4"SAE9/32"X5/8"X1/16"

$0.99

$

In Stock, Qty 7

0

185

Billy Goat 362330

BRACKET GUARD FAN

$171.99

$

Usually ships in 2-11 days

0

186

Billy Goat 362331

GUARD WIRE PUMP FAN

$136.99

$

Usually ships in 2-11 days

0

187

Billy Goat 362325

COOLER OIL

$121.99

$

Usually ships in 2-11 days

0

188

Billy Goat 362380

KEY FEATHER 5MM X 5MM X 30MM

$6.99

$

Usually ships in 2-11 days

0

189

Billy Goat 370120

SEE: 812240-7
(Superseded to 812240-7)

$0.99

$

In Stock, Qty 9

0

190

Billy Goat 370120

SEE: 812240-7
(Superseded to 812240-7)

$0.99

$

In Stock, Qty 9

0

191

Billy Goat 362351

KIT, FAN/HUB HYDRO GEAR 70811

$

$

Not available

231

Billy Goat 362276

SEE: 362276-S
(Superseded to 362276-S)

$64.99

$

Usually ships in 2-11 days

0

250

Billy Goat 8161041

NUT LOCK 5/16"-18 LT WT TH ZP

$0.99

$

Usually ships in 2-11 days

0

251

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 7

0

252

Billy Goat 440124

PIN CLEVIS 1/4" X .75"

$1.49

$

In Stock, only 4 left!

0

253

Billy Goat 371275

1/4" RUE RING

$0.99

$

Usually ships in 2-11 days

0

254

Billy Goat 862318

BRACKET BELT GUILD UPPER

$

$

Currently unavailable

255

Billy Goat 8041010

SCREWCAP 1/4"-20X2" HCS ZP

$0.99

$

In Stock, Qty 7

0

256

Billy Goat 900455

NUT WHIZ 1/4"-20 WASH FACE

$1.49

$

Usually ships in 2-11 days

0
