ACSS02 VNM (000996052) - Ryobi Grass Shear Caddy, Rev 03 (2021-12) General Assembly Parts Diagram

Grass Shear Caddy, Rev 03

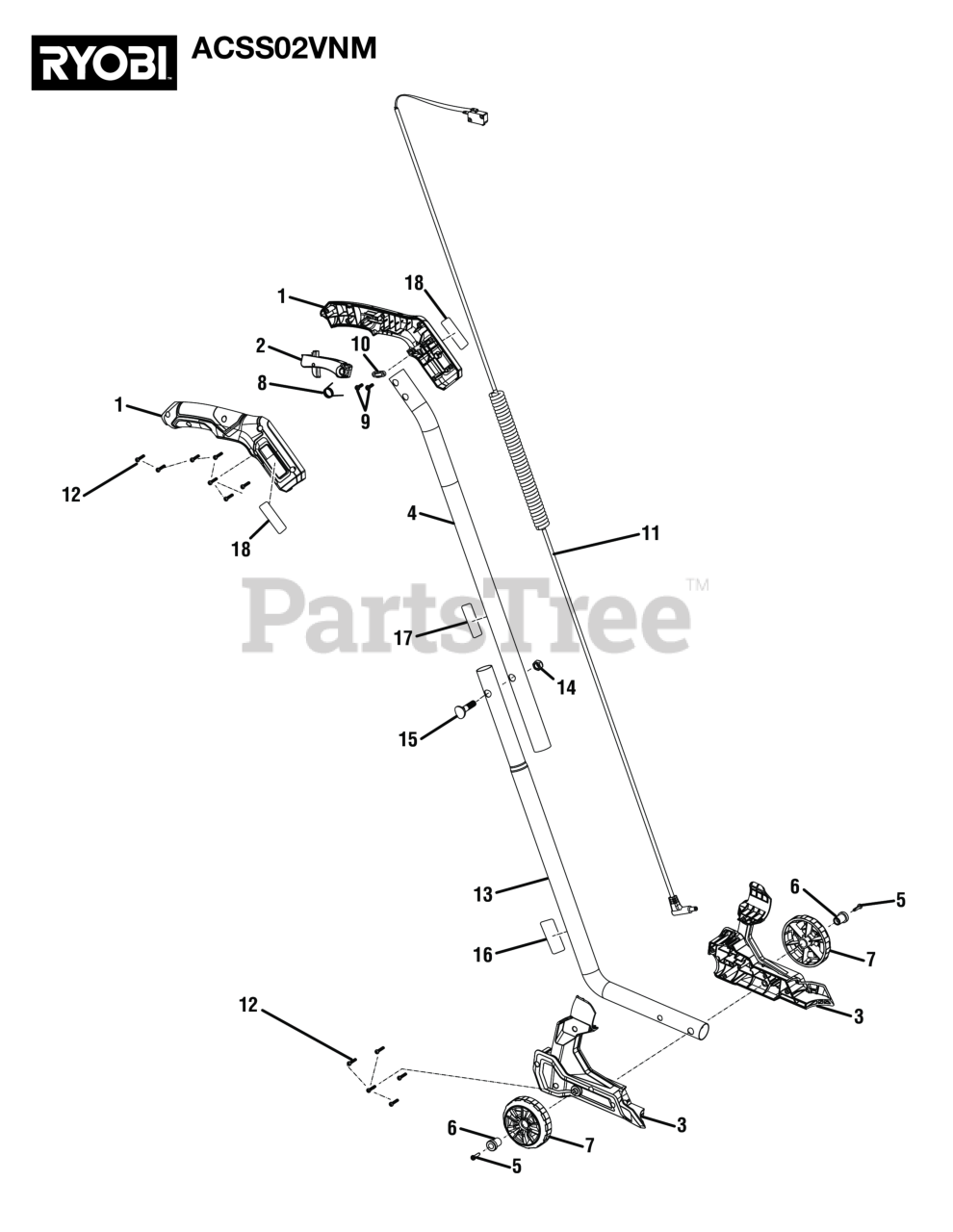

General Assembly Parts Diagram

  • Title

1

Homelite 205735001

Handle Housing Assembly

Note: (Inc. Key No. 18)

$15.99

$

Usually ships in 3-7 days

0

2

Homelite 205729001

Trigger Assembly

$8.49

$

Usually ships in 3-7 days

0

3

Homelite 205737001

Housing Assembly

$11.99

$

Usually ships in 3-7 days

0

4

Homelite 205739001

Upper Tube Assembly

Note: (Inc. Key No. 17)

$15.99

$

Usually ships in 3-7 days

0

5

Homelite 660208049

Screw (M4 x 22 mm Pan Hd.)

$

$

Currently unavailable

6

Homelite 528191001

Wheel Shaft

$3.49

$

Usually ships in 3-7 days

0

7

Homelite 528190001

Wheel

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 683069001

Trigger Spring

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 660208055

Screw (M4 x 12 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

10

Homelite 523001001

Strain Relief Plate

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 205736001

Switch Assembly

$39.99

$

Usually ships in 3-7 days

0

12

Homelite 661610009

Screw (M3.5 x 12 mm, T15 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 205738001

Lower Tube Assembly

Note: (Inc. Key No. 16)

$16.99

$

Usually ships in 3-7 days

0

14

Homelite 678774012

Flange Lock Nut (M8 x 1.25 mm)

$1.99

$

In Stock, only 2 left!

0

15

Homelite 662104002

Screw (M8 x 36 mm)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 941110081

QR Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 941588850

Data Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 940705490

Logo Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 998000789

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
