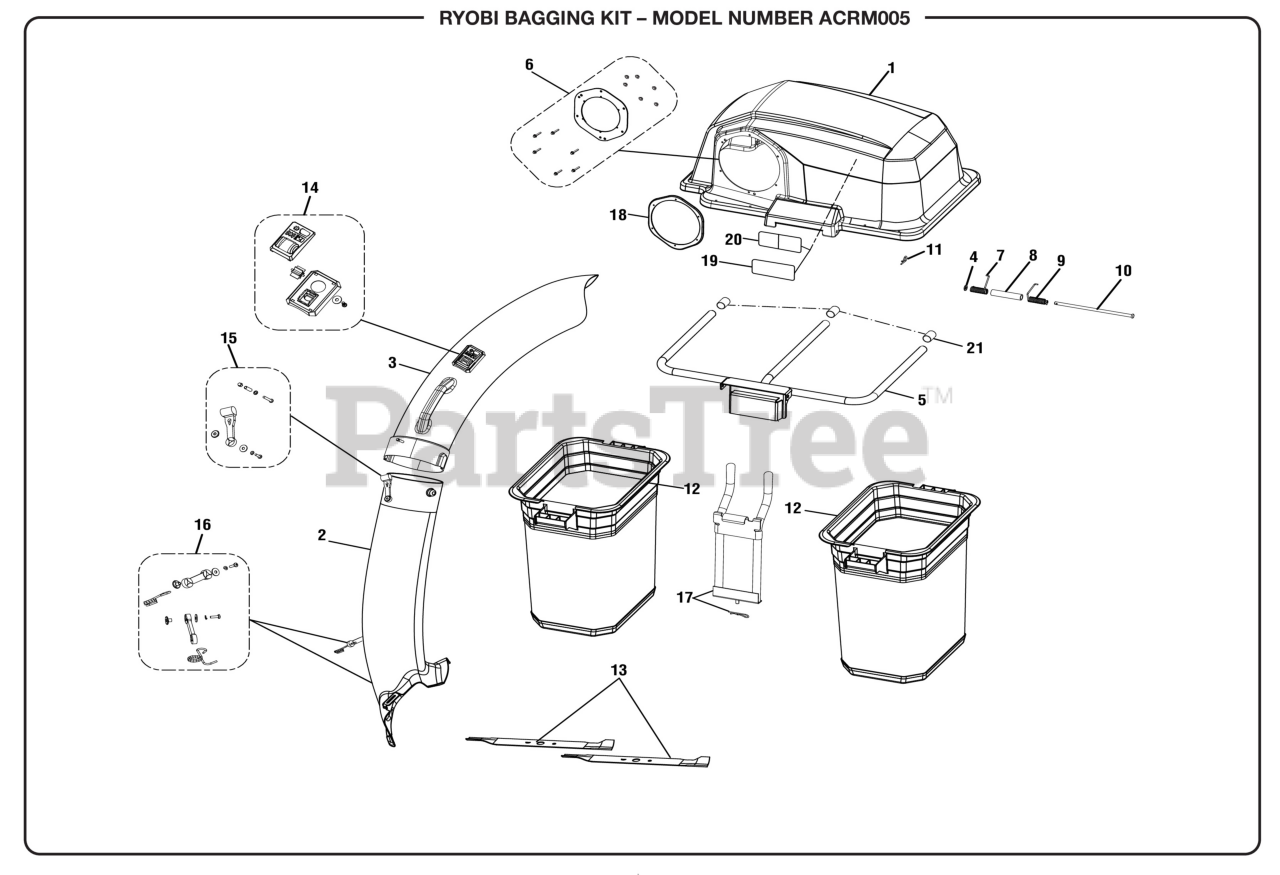

ACRM005 (000997496) - Ryobi Grass Bagging Kit, Rev 01 (2020-03) General Assembly Parts Diagram

Grass Bagging Kit, Rev 01

General Assembly Parts Diagram

  • Title

1

Homelite 120685001

Bagger Cover Assembly

$

$

Not available

2

Homelite 997151001

Lower Bagger Tube Assembly

$

$

Currently unavailable

3

Homelite 120687001

Upper Bagger Tube Assembly

$25.99

$

Usually ships in 3-7 days

0

4

Homelite 636797001

Washer

$

$

Not available

5

Homelite 994977001

Upper Frame Cover Assembly

$178.99

$

Usually ships in 3-7 days

0

6

Homelite 120802001

Seal Kit

$9.49

$

In Stock, only 1 left!

0

7

Homelite 696020001

Bagger Hinge Spring (Right)

$

$

Not available

8

Homelite 532472001

Cover Hinge Bushing

$5.99

$

In Stock, only 1 left!

0

9

Homelite 696019001

Bagger Hinge Spring (Left)

$

$

Not available

10

Homelite 622101001

Hinge Bagger Cover Pin

$9.49

$

In Stock, only 1 left!

0

11

Homelite 696243001

Bagger Hinge Pin Lock

$1.99

$

In Stock, only 1 left!

0

12

Homelite 312484001

Bagger Assembly Bag

$97.99

$

Usually ships in 3-7 days

0

13

Homelite 996968001

Bagging Blade, 21 in., ZTR

$

$

Currently unavailable

14

Homelite 120608001

Bagger Gauge Assembly

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 120688001

Upper Bungie Tube Connector Kit

$

$

Not available

16

Homelite 120689001

Lower Bungie Tube Connector Kit

$

$

Not available

17

Homelite 120690001

Bagger Assembly Lower Frame

$

$

Not available

18

Homelite 532469001

Bagger Cover Bracket

$

$

Currently unavailable

19

Homelite 940851218

Bagger Warning Label

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 940851266

Bagger Icon Warning Label

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 518366001

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

Homelite 995000754

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
