Accessory - Cub Cadet Tiller 1 Gearbox Gear Box-90 Degree Parts Diagram

Tiller 1 Gearbox

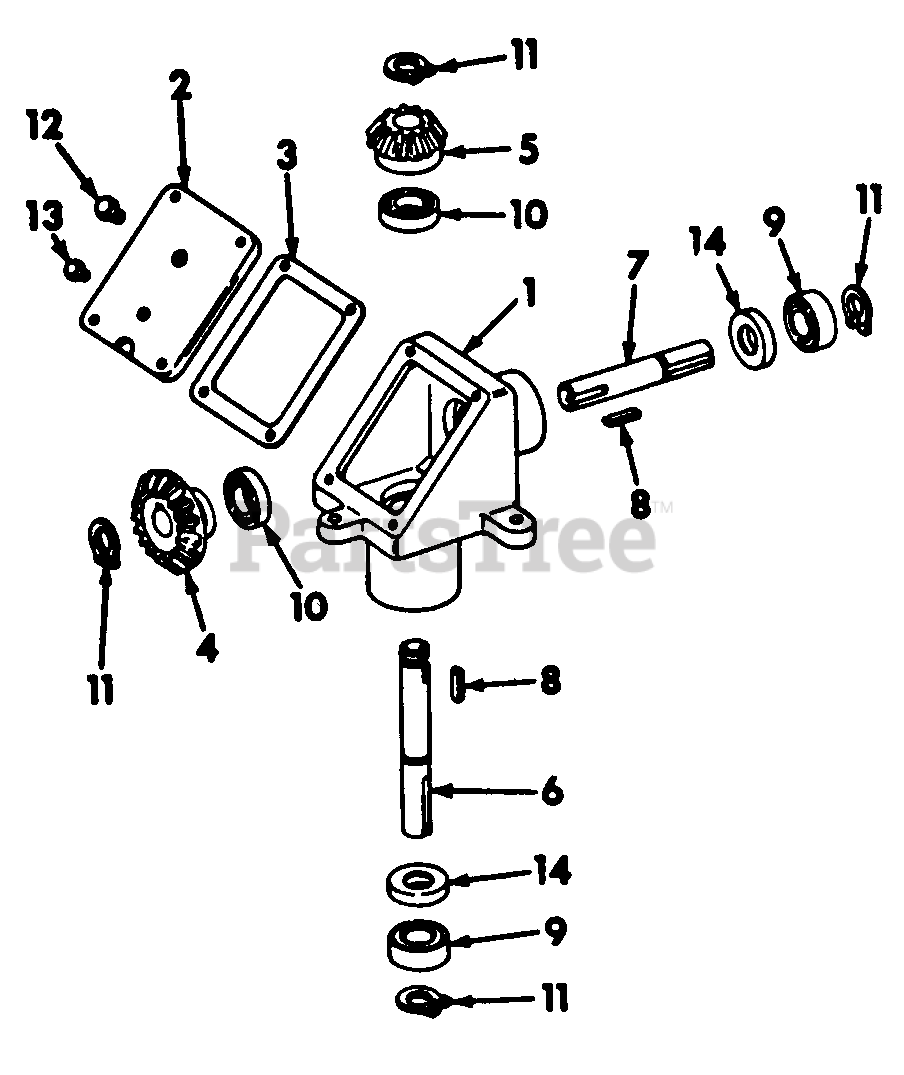

Gear Box-90 Degree Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Cub Cadet 485-302-R1

Cover, Gear Box

$

$

Currently unavailable

Cub Cadet 180-020

Screw, 1/4-20 X 3/4 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120380

Washer, 1/4 C-Z Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 475-598-R1

Gasket, Gear Box Cover

$

$

Currently unavailable

4

Cub Cadet 485-304-R1

Gear, Bevel - 30 Tooth

$

$

Currently unavailable

5

Cub Cadet 485-305-R1

Gear, Bevel - 20 Tooth

$

$

Currently unavailable

6

Cub Cadet 485-303-R1

Shaft, Input

$

$

Currently unavailable

7

Cub Cadet 475-601-R1

Shaft, Output

$

$

Currently unavailable

8

Cub Cadet 475-642-R1

Key, 3/16 X 11/16 Sq Parallel

$

$

Currently unavailable

9

Cub Cadet 475-627-R91

Bearing, Ball

$

$

Currently unavailable

10

Cub Cadet 475-628-R91

Bearing, Ball

$

$

Currently unavailable

11

Cub Cadet 269-181-R1

Ring, Retaining

$

$

Currently unavailable

12

Cub Cadet 444-612

Plug, Automotive 1/8 Npt Sq-Hd

$

$

Currently unavailable

13

Cub Cadet IH-444618

Plug, Automotive 1/4 Npt Sq-Hd
(Superseded to 751-3001)

$

$

Not available

14

$

$

Currently unavailable
