Accessory - Cub Cadet Standing Sulky Sulky (Standing) Parts Diagram

Standing Sulky

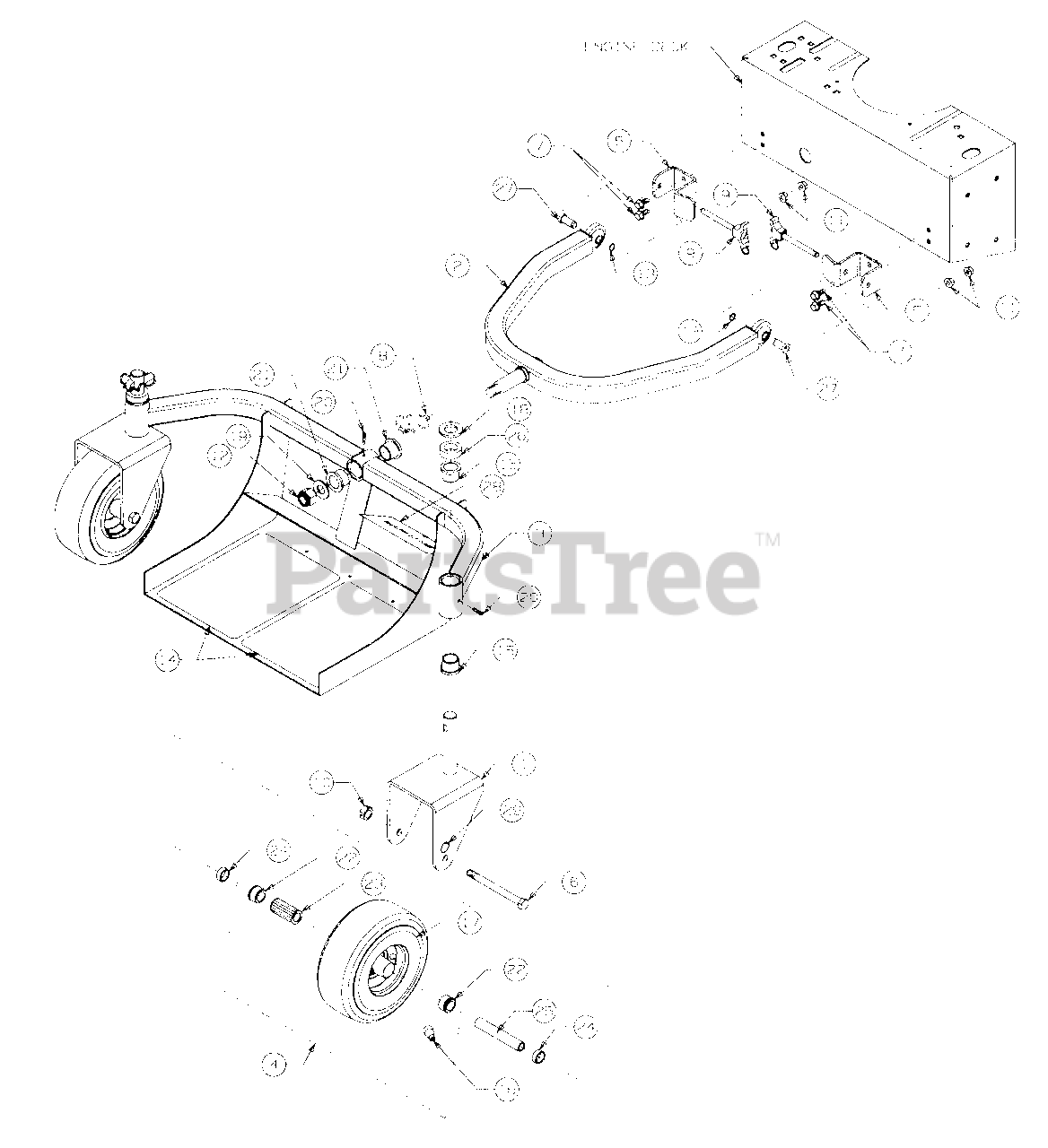

Sulky (Standing) Parts Diagram

  • Title

1

Cub Cadet 603-0047

Fork, Caster
(Superseded to 01006145)

Variations

Cub Cadet 603-0047-0498

USE 01006145 FORK-CASTER - OLD CUB YELLOW (0498)

$126.99

$

Usually ships in 3-6 days

0

$126.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0239

Tubing, A-Frame
(Superseded to 01006147)

$

$

Not available

3

Cub Cadet 603-0242

Footstand, Sulky

Variations

Cub Cadet 603-0242-0498

FOOTSTAND-SULKY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

4

Cub Cadet 759-3729

Wheel Assy, Caster
(Superseded to 634-3026)

$238.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2609

Bracket, Sulky Mtg

Variations

Cub Cadet 703-2609-0498

BRACKET, SULKY MOU - OLD CUB YELLOW (0498)

$

$

Not available

$

$

6

Cub Cadet 710-0506

Screw, Hex Cap, 1/2-20 X 5.50 Lg

$10.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0623

Screw, Hex Wash Sf Tap, 3/8-16 X .75 Lg

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 711-3345

Pin, Klik

$

$

Not available

9

Cub Cadet 711-3367

Pin, Quick Release, 3/8 Dia
(Superseded to 911-3367)

$

$

Not available

10

Cub Cadet 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3032

Nut, Hex Lock, 3/4-16
(Superseded to 712-1329)

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 716-0184

Ring, Retainer
(Superseded to 916-0184)

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 723-3069

Pad, Abrasive Foot
(Superseded to 00023817)

$

$

Not available

15

Cub Cadet 731-0374

Bearing, Flange
(Superseded to 931-0374)

$7.49

$

In Stock, Qty 5

0

16

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 734-3098

Tire, Smooth, 9.0 X 3.50 X 4

$

$

Not available

18

Cub Cadet 736-0274

Washer, Special

$8.99

$

In Stock, Qty 14

0

19

Cub Cadet 736-0315

Washer, Flat, .750 X 1.50 X .120 Thk

$6.99

$

In Stock, Qty 6

0

20

Cub Cadet 737-0280

Fitting, Lube

$7.99

$

In Stock, Qty 8

0

21

Cub Cadet 741-0476

Bearing, Flange
(Superseded to 741-04488)

$9.49

$

In Stock, only 3 left!

0

22

Cub Cadet 741-3060

Bearing, Graf Oil Flange

$

$

Not available

23

Cub Cadet 741-3061

Bearing, Roller
(Superseded to 941-3061)

$

$

Not available

24

Cub Cadet 750-0456

Spacer, .790 ID X 1.0 OD X .347

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 750-3080

Spacer, Wheel
(Superseded to 01000749)

$40.99

$

In Stock, only 1 left!

0

26

Cub Cadet 750-3118

Spacer, 1.015 ID X 1.62OD X .50 Lg

$

$

Not available

27

Cub Cadet 750-3156

Spacer, Shoulder, .378 ID X .50 OD

$

$

Not available

28

Cub Cadet 777-2359

Graphic, Warning

$

$

Not available

29

Cub Cadet 777-8680

Label Inflation

$

$

Currently unavailable
