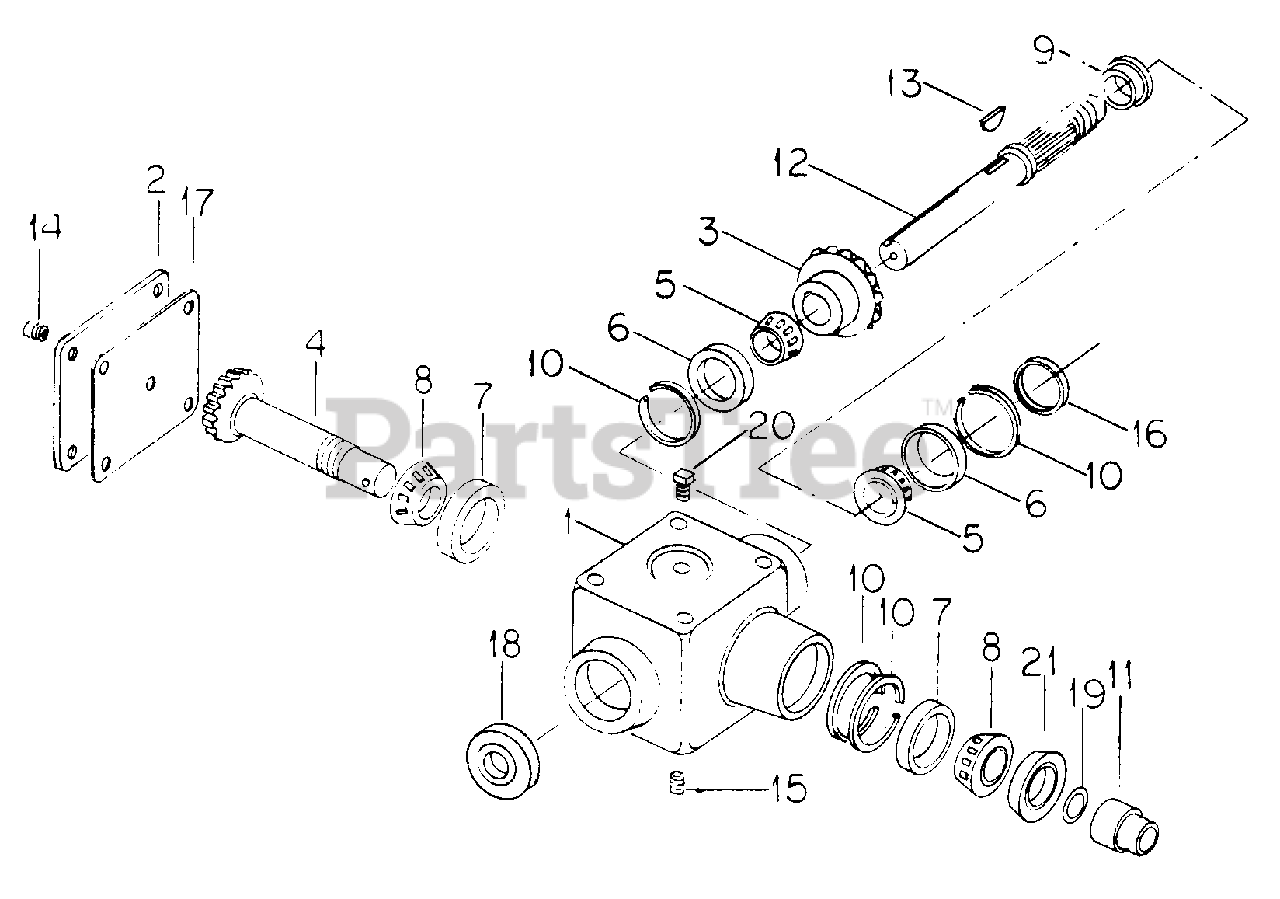

Accessory - Cub Cadet 48" Rotary Tiller Attachment Gear Box Part 1 Parts Diagram

48" Rotary Tiller Attachment

Gear Box Part 1 Parts Diagram

  • Title

1

Cub Cadet 79-999-C1

Housing, Gear Box

$

$

Currently unavailable

2

Cub Cadet 127-198-C1

Cover

$

$

Currently unavailable

3

Cub Cadet 80-000-C1

Gear

$

$

Currently unavailable

4

Cub Cadet 80-001-C1

Shaft, Bevel Pinion

$

$

Currently unavailable

5

Cub Cadet 463-911-R91

Bearing, Cone

$

$

Currently unavailable

6

Cub Cadet 572-564-R1

Bearing, Cup

$

$

Currently unavailable

7

Cub Cadet 80-003-C1

Bearing, Cup

$

$

Currently unavailable

8

Cub Cadet 80-004-C91

Bearing, Cone

$

$

Currently unavailable

9

Nut, Stake -Order Kit 128 395 C2

$

$

Not available

10

Cub Cadet 513-010-R1

Ring, Snap

$

$

Currently unavailable

Cub Cadet IH-180075

Bolt, 5/16 X 5/8 Type 5

$

$

Not available

11

Nut, Stake -Order Kit 128 395 C2

$

$

Not available

12

Cub Cadet 80-007-C1

Shaft, Output

$

$

Currently unavailable

13

Cub Cadet IH-124551

Key, 1/4 X 7/8 SAE Woodruff

$

$

Not available

14

Cub Cadet 444-571

Plug, 1/8-27 Sq/Hd Auto Pipe

$

$

Currently unavailable

15

Cub Cadet 444-698

Plug, 3/8-18 Hex/Skt Auto Pipe

$

$

Currently unavailable

16

Cap -Order Kit 128 395 C2

$

$

Not available

17

Cub Cadet 80-009-C1

Gasket

$

$

Currently unavailable

18

Seal, Oil -Order Kit 128 395 C2

$

$

Not available

19

Cub Cadet 372-764-R1

O-Ring, 1-1/8 X 1-5/16 Class 5

$

$

Currently unavailable

20

Cub Cadet 80-010-C1

Plug, Vent

$

$

Currently unavailable

21

Cub Cadet 420-140-C91

Seal, Oil

$

$

Currently unavailable

Cub Cadet 128-395-C2

Kit, Gear Box Service -Consists of Ref No. 9, 11, 16 thru 19 & 21

$

$

Currently unavailable
