Accessory - Cub Cadet 42" Back Blade Blade, Hitch and Main Frame Parts Diagram

42" Back Blade

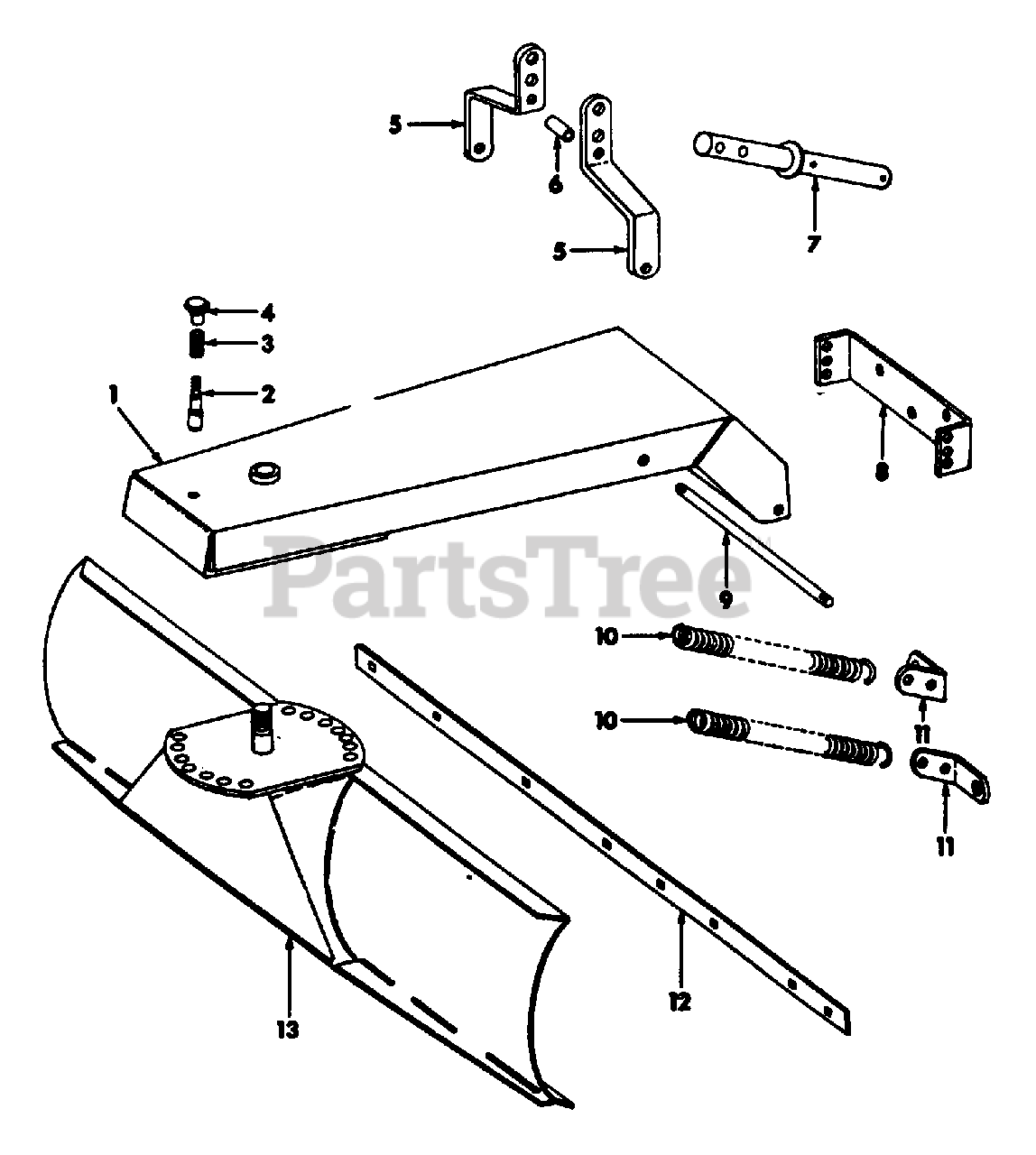

Blade, Hitch and Main Frame Parts Diagram

  • Title

1

473310-R91

FRAME ASSY, MAIN

$

$

Not available

2

Cub Cadet IH-473319-R1

PIN, PIVOT

$

$

Currently unavailable

3

Cub Cadet IH-1160-G

SPRING, PIVOT PIN

$

$

Currently unavailable

4

473317-R1

KNOB, PIVOT PIN

$

$

Not available

5

Cub Cadet IH-473320-R1

BRACKET, HITCH

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 C-Z HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

NA141

PIN, 1/2 x 1-7/8 STD-HD

$

$

Not available

Cub Cadet IH-520175-R1

PIN, QUICK ATTACHABLE COTTER

$

$

Not available

Cub Cadet IH-180130

SCREW 3/8-16 x 2 C-Z HEX-HD CAP
(Superseded to 710-3144)

$4.49

$

In Stock, only 4 left!

0

Cub Cadet 120382

WASHER, 3/8 C-Z MED LOCK

$

$

Currently unavailable

6

473321-R1

SPACER, LIFT LINK

$

$

Not available

7

Cub Cadet IH-473325-R11

PIN ASSY, HITCH LIFT

$

$

Currently unavailable

137243

PIN, 1/8 x 1-1/2 COTTER

$

$

Not available

Cub Cadet IH-180126

SCREW, 3/8-16 x 1-1/2 C-Z HEX-HD CAP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

IH-Q3480

WASHER, 1-1/32 x 1-1/2 x 11 GA

$

$

Not available

Q3481

WASHER, 1-1/32 x 1-1/2 x 16 GA

$

$

Not available

8

473324-R1

CHANNEL, HITCH MOUNT

$

$

Not available

D3373

PIN, 1/2 x 1-1/2 STD-HD

$

$

Not available

Cub Cadet IH-520175-R1

PIN, QUICK ATTACHABLE COTTER

$

$

Not available

9

473322-R1

ROD, LIFT

$

$

Not available

137218

PIN, 5/32 x 1-1/4 C-Z COT

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 x 1-1/16 x .095 C-Z
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-23331-SA

SPRING, LIFTING

$

$

Currently unavailable

11

473323-R1

ANGLE, SPRING ATTACHING

$

$

Not available

Cub Cadet IH-180124

SCREW, 3/8-16 x 1-1/4 C-Z HEX-HD CAP
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

180134

SCREW, 3/8-16 x 2-1/2 C-Z HEX-HD CAP

$

$

Not available

12

Cub Cadet IH-464371-R2

EDGE BLADE CUTTING
(Superseded to 703-0658)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet 19576-R1

BOLT, 5/16-18 x 7/8 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 473326-R11

MOLDBOARD ASSY, CUB CADET BLADE

$

$

Currently unavailable

427643

NUT, 7/8-9 C-Z HEX.

$

$

Not available

137214

PIN, 1/8 x 1-3/4 C-Z COTTER

$

$

Not available

20703-R1

WASHER, 29/32 x 1-3/4 x 16 GA C-Z

$

$

Not available

Cub Cadet IH-2752019-R1

PRODUCT GRAPHIC, IH

Note: IN CENTER ON TOP OF MAIN FRAME

$

$

Not available
