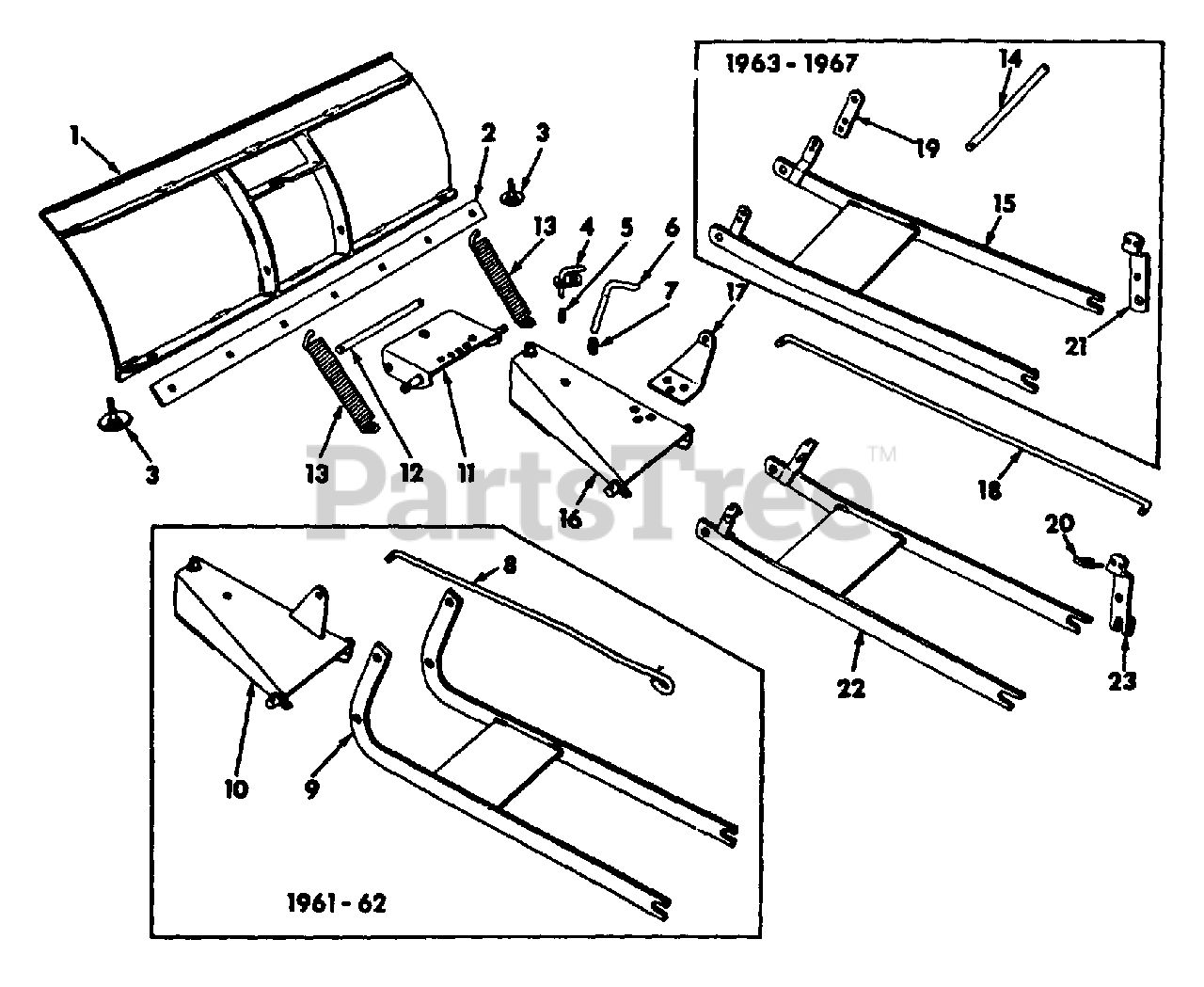

Accessory - Cub Cadet 42", 54" Push Blade Blade, Main Frame and Springs-Tractor S/N 400,000 & Below Parts Diagram

42", 54" Push Blade

Blade, Main Frame and Springs-Tractor S/N 400,000 & Below Parts Diagram

  • Title

1

Cub Cadet IH-466899-R91

BLADE ASSY -42 INCH-

$

$

Not available

Cub Cadet IH-61630-C1

BLADE ASSY -54 INCH-

$

$

Not available

2

Cub Cadet IH-464371-R2

EDGE, BLADE CUTTING -42 INCH-
(Superseded to 703-0658)

$113.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-61634-C1

EDGE, BLADE CUTTING -54 INCH-
(Superseded to 703-0659-0637)

$101.99

$

Usually ships in 3-6 days

0

Cub Cadet 19576-R1

BOLT, 5/16 x 7/8 C-Z SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-120376

NUT, 5/16 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120214

WASHER, 5/16 C-Z MED LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet IH-466906-R11

SHOE ASSEMBLY, SKID
(Superseded to 703-0650)

$47.99

$

In Stock, only 3 left!

0

Cub Cadet IH-120238

NUT, 1/2 C-Z HEX.

$

$

Not available

Cub Cadet 120239

WASHER, 1/2 C-Z LIGHT LOCK

$

$

Currently unavailable

4

Cub Cadet IH-466891-R11

LOCK ASSEMBLY, SPRING TRIP

$

$

Not available

Cub Cadet 141406

PIN, 7/64 x 7/8 C-Z COTTER

$

$

Currently unavailable

Cub Cadet IH-120394

WASHER, 13/32 x 13/16 x .065 C-Z
(Superseded to 936-0140)

$

$

Not available

5

Cub Cadet IH-351

SPRING, COMPRESSION TYPE
(Superseded to 732-3036)

$

$

Not available

6

Cub Cadet IH-466890-R1

PIN, ANGLING

$

$

Not available

Cub Cadet IH-120169

PIN, 5/32 x 1 C-Z COTTER

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 x 1-1/16 x .121 C-Z
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet IH-352370-R1

SPRING, COMPRESSION TYPE
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 464387-R1

ROD, LIFT

$

$

Currently unavailable

Cub Cadet IH-473443-R1

PIN, QUICK ATTACHABLE COTTER
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

137180

PIN, 1/8 x 7/8 C-Z COTTER

$

$

Not available

9

Cub Cadet 466893-R11

SUB-FRAME ASSY

Note: ORDER PKG, 473932-R91

$

$

Currently unavailable

10

Cub Cadet 466883-R91

FRAME ASSEMBLY, MAIN

Note: ORDER REF. NOS. 16 & 17

$

$

Currently unavailable

Cub Cadet IH-427640

NUT, 3/4 C-Z SLT HEX.
(Superseded to 712-0359)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 137209

PIN, 1/8 x 1-5/8 C-Z COTTER

$

$

Currently unavailable

Cub Cadet IH-131017

WASHER, 13/32 x 1-1/2 x .134 C-Z

$

$

Currently unavailable

11

Cub Cadet IH-466896-R31

FRAME ASSEMBLY, PIVOT

$

$

Not available

12

Cub Cadet IH-466898-R1

ROD, BLADE PIVOT

$

$

Not available

137218

PIN, 5/32 x 1-1/4 C-Z COTTER

$

$

Not available

13

Cub Cadet IH-PO27

SPRING, EXTENSION TYPE
(Superseded to 959-3380)

$

$

Not available

14

Cub Cadet 473926-R1

ROD, MOUNTING

Note: 1961 TO 1967

$

$

Currently unavailable

Cub Cadet IH-520175-R1

PIN, QUICK ATTACHABLE COTTER

$

$

Not available

Cub Cadet 446257

WASHER, 13/32 x 1-3/4 x .148 C-Z

$

$

Currently unavailable

15

Cub Cadet IH-473919-R91

SUB-FRAME ASSY.

Note: 1963 TO 1967 - ORDER SUB-FRAME 489618-R1

$

$

Not available

16

Cub Cadet IH-473918-R92

FRAME ASSEMBLY, MAIN

Note: 1963 UP

$

$

Not available

Cub Cadet IH-427640

NUT, 3/4 C-Z SLT HEX.
(Superseded to 712-0359)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 137209

PIN, 1/8 x 1-5/8 C-Z COTTER

$

$

Currently unavailable

137218

PIN, 5/32 x 1-1/4 C-Z COTTER

$

$

Not available

Cub Cadet IH-131017

WASHER, 13/32 x 1-1/2 x .134 C-Z

$

$

Currently unavailable

17

Cub Cadet IH-473925-R1

ARM, LIFT

$

$

Not available

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

180175

SCREW, 1/2-13 x 1-1/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet IH-473924-R1

ROD, LIFT

Note: 1963 UP

$

$

Not available

Cub Cadet IH-473443-R1

PIN, QUICK ATTACHABLE COTTER
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet 473922-R1

BRACE, EXTENSION

Note: 1961 TO 1967

$

$

Currently unavailable

Cub Cadet IH-120378

NUT, 1/2-13 C-Z HEX.
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 180176

SCREW, 1/2-13 x 1-3/8 C-Z HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

20

Cub Cadet 661503-R1

U-BOLT

Note: USED w/BRACKET, 473923-R1

$

$

Currently unavailable

Cub Cadet IH-485419-R1

U-BOLT

Note: USED w/BRACKET, 485469-R1 OR 489622-R1

$

$

Not available

Cub Cadet IH-485420-R1

SPACER

Note: USED w/BRACKET, 485469-R1 OR 489622-R1

$

$

Not available

Cub Cadet IH-120375

NUT, 1/4-20 C-Z HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

Cub Cadet IH-120380

WASHER, 1/4 C-Z MED LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

Cub Cadet IH-473923-R1

BRACKET, LIFT

Note: ORDER BRACKET, 485469-R1, U-BOLT, 485419-R1 & 2 SPACER, 485420-R1

$

$

Not available

Cub Cadet IH-485469-R1

BRACKET, LIFT

Note: 1961 TO 1967

$

$

Currently unavailable

22

Cub Cadet IH-489618-R1

SUB-FRAME ASSY

Note: 1968 UP

$

$

Not available

180175

BOLT, 1/2 x 1-1/4 TYPE 5

$

$

Not available

Cub Cadet IH-120384

WASHER, 1/2 C-Z MED LOCK
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 5

0

Cub Cadet IH-120378

NUT, 1/2 TYPE 5
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet IH-489622-R1

BRACKET, LIFT
(Superseded to IH-489622-R2)

Note: 1968 UP

$

$

Not available

180112

SCREW, 5/16-18 x 2-3/4 C-Z HEX-HD CAP

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 x 11/16 x .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 C-Z HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-2752018-R1

PRODUCT GRAPHICS, IH

Note: ON MAIN FRAME

$

$

Not available
