Accessory - Cub Cadet 42" & 54" Hydr. Angle Push Blade Hydraulic Attachment Parts Diagram

42" & 54" Hydr. Angle Push Blade

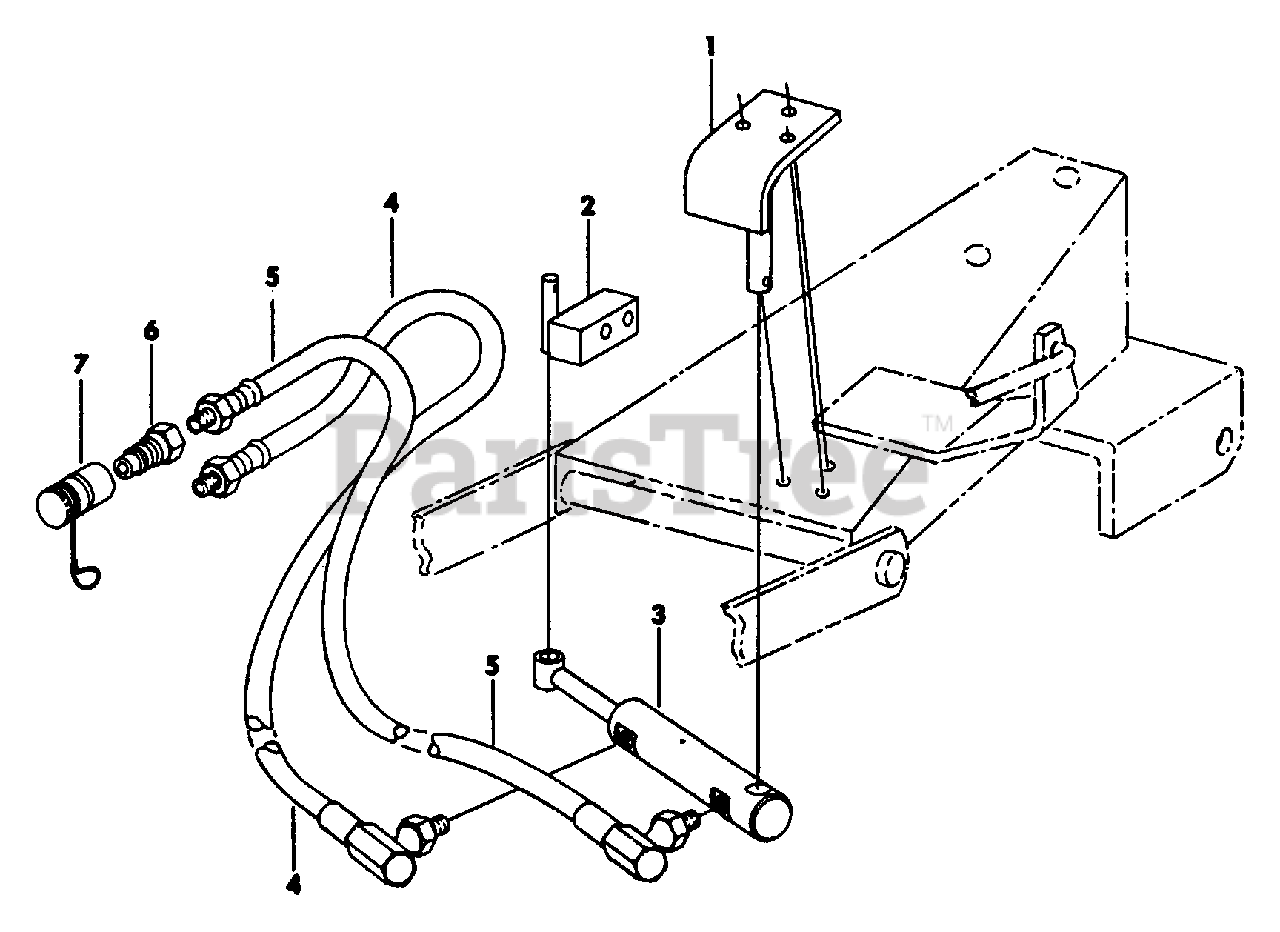

Hydraulic Attachment Parts Diagram

  • Title

61904-C91

HYDRAULIC ANGLED BLADE ATTACHMENT

Note: FOR TRACTORS w/FRONT HYDRAULIC OUTLETS- REPLACED BY 79063-C91

$

$

Not available

144585-C91

HYDRAULIC ANGLED BLADE ATTACHMENT

Note: FOR CUB CADET 782 TRACTORS w/FRONT HYDRAULIC OUTLETS- REPLACED BY 79063-C91

$

$

Not available

1

61900-C1

BRACKET ASSY, REAR

$

$

Not available

Cub Cadet IH-24840-R1

SCREW, 3/8-16 x 1 PHC HEX-HD CAP TYPE 8

$

$

Not available

Cub Cadet IH-120394

WASHER, .406 x .812 x .065 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet IH-106812-C1

BRACKET ASSY, FRONT

$

$

Not available

Cub Cadet IH-24843-R1

SCREW, 3/8-16 x 2 PHC HEX-HD CAP TYPE 8

$

$

Currently unavailable

Cub Cadet IH-120394

WASHER, .406 x .812 x .065 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

3

CYLINDER ASSY, 1-1/2 x 7-1/2 HYDRAULIC

Note: REPLACEMENT CYLINDER NOT FURNISHED; MUST OBTAIN FIELD ATTACHMENT 79063-C91

$

$

Not available

Cub Cadet IH-103406

PIN, 3/16 x 3/4 COTTER

$

$

Not available

Cub Cadet IH-131017

WASHER 812 x 1.469 x .134 ZND

$

$

Currently unavailable

103419

PIN, 1/4 x 1-1/4 COTTER

$

$

Not available

4

Cub Cadet IH-106256-C1

HOSE, 15 INCH

Note: FOR USE w/61904-C91 ATTACHMENT

$

$

Currently unavailable

Cub Cadet IH-144584-C1

HOSE, 30 INCH

Note: FOR USE w/144585-C91 ATTACHMENT

$

$

Not available

5

106806-C1

HOSE, 22 INCH

$

$

Not available

6

Cub Cadet IH-166123-C91

NOSE PIECE ASSY
(Superseded to 727-3023)

$51.99

$

In Stock, only 3 left!

0

7

Cub Cadet IH-106814-C1

CAP, HYDRAULIC COUPLING
(Superseded to 727-3024)

$57.99

$

Usually ships in 3-6 days

0

77583-C91

PACKAGE. IH TRADEMARK - LARGE SIZE

Note: THE FOLLOWING PRODUCT GRAPHIC PACKAGES MAY BE REGURIED FOR YOUR MACHINE.

$

$

Not available

IH TRADEMARK 6.58 x 7.09

$

$

Not available

IH TRADEMARK 7.68 x 8.27

$

$

Not available

IH TRADEMARK 10.24 x 11.02

$

$

Not available

Cub Cadet IH-77582-C91

PACKAGE, IH TRADEMARK - MEDIUM SIZE

Note: THE FOLLOWING PRODUCT GRAPHIC PACKAGES MAY BE REGURIED FOR YOUR MACHINE.

$

$

Not available

IH TRADEMARK 3.66 x 3.94

$

$

Not available

IH TRADEMARK 4.39 x 4.72

$

$

Not available

IH TRADEMARK 5.48 x 5.91

$

$

Not available

Cub Cadet IH-77581-C91

PACKAGE, IH TRADEMARK - SMALL SIZE

Note: THE FOLLOWING PRODUCT GRAPHIC PACKAGES MAY BE REGURIED FOR YOUR MACHINE.

$

$

Not available

IH TRADEMARK 1.46 x 1.57

$

$

Not available

IH TRADEMARK 2.19 x 2.36

$

$

Not available

IH TRADEMARK 2.93 x 3.15

$

$

Not available
