Accessory - Cub Cadet 42" & 54" Hydr. Angle Push Blade 42" & 54" Blade W/Spring Trip - Hydraulic Attachment Parts Diagram

42" & 54" Hydr. Angle Push Blade

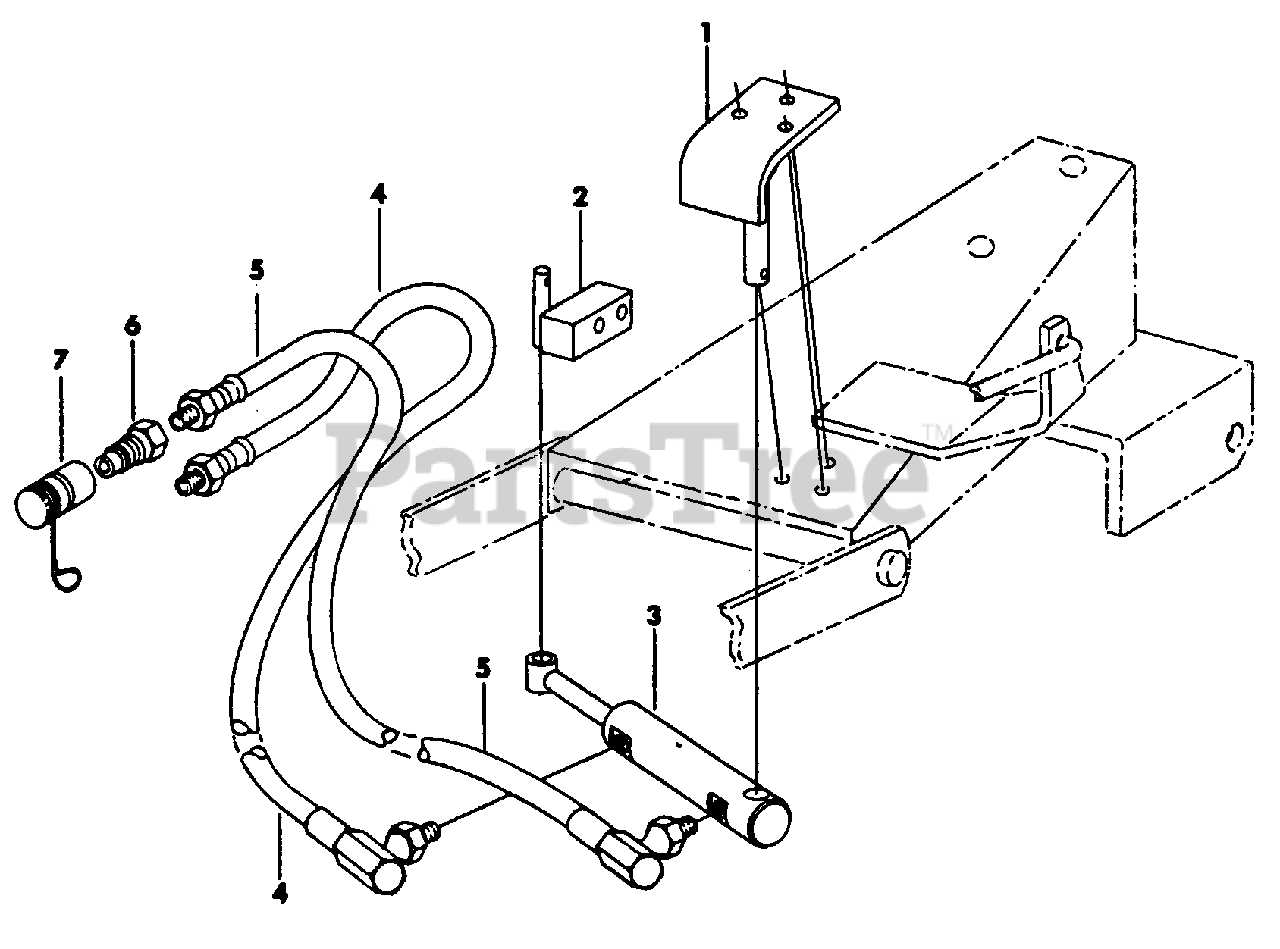

42" & 54" Blade W/Spring Trip - Hydraulic Attachment Parts Diagram

  • Title

Cub Cadet 61-904-C91

Hydraulic Angled Blade Attachment

$

$

Currently unavailable

Cub Cadet 144-585-C91

Hydraulic Angled Blade Attachment

$

$

Currently unavailable

1

Cub Cadet 61-900-C1

Bracket Assy, Rear

$

$

Currently unavailable

Cub Cadet 24-840-R1

Screw, 3/8-16 X 1 Phc Hex-Hd Cap Type 8

$

$

Currently unavailable

Cub Cadet IH-120394

Washer, .406 X .812 X .065 Znd
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 106-812-C1

Bracket Assy, Front

$

$

Currently unavailable

Cub Cadet 24-843-R1

Screw, 3/8-16 X 2 Phc Hex-Hd Cap Type 8

$

$

Currently unavailable

Cub Cadet IH-120394

Washer,.406 X .812 X .065 Znd
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

3

Cylinder Assy, 1-1/2 X 7-1/2 Hydraulic

Note: -Replacement cylinder not furnished- -Must obtain field attachment 79 063 C91

$

$

Not available

Cub Cadet IH-103406

Pin, 3/16 X 3/4 Cotter

$

$

Not available

Cub Cadet IH-131017

Washer, .812 X 1.4698 X .134 Znd

$

$

Currently unavailable

Cub Cadet 103-419

Pin, 1/4 X 1-1/4 Cotter

$

$

Currently unavailable

4

Cub Cadet 106-256-C1

Hose, 15 Inch -For Use w/61 904 C91 Attachment

$

$

Currently unavailable

Cub Cadet 144-584-C1

Hose, 30 Inch -For Use w/144 585 C91 Attachment

$

$

Currently unavailable

5

Cub Cadet 106-806-C1

Hose, 22 Inch

$

$

Currently unavailable

6

Cub Cadet 166-123-C91

Nose Piece Assy

$

$

Currently unavailable

7

Cub Cadet 106-814-C1

Cap, Hydraulic Coupling

$

$

Currently unavailable

Cub Cadet 77-583-C91

Package, IH Trademark -Large Size

$

$

Currently unavailable

Cub Cadet 77-582-C91

Package, IH Trademark -Medium Size

$

$

Currently unavailable

Cub Cadet 77-581-C91

Package, IH Trademark -Small Size

$

$

Currently unavailable
